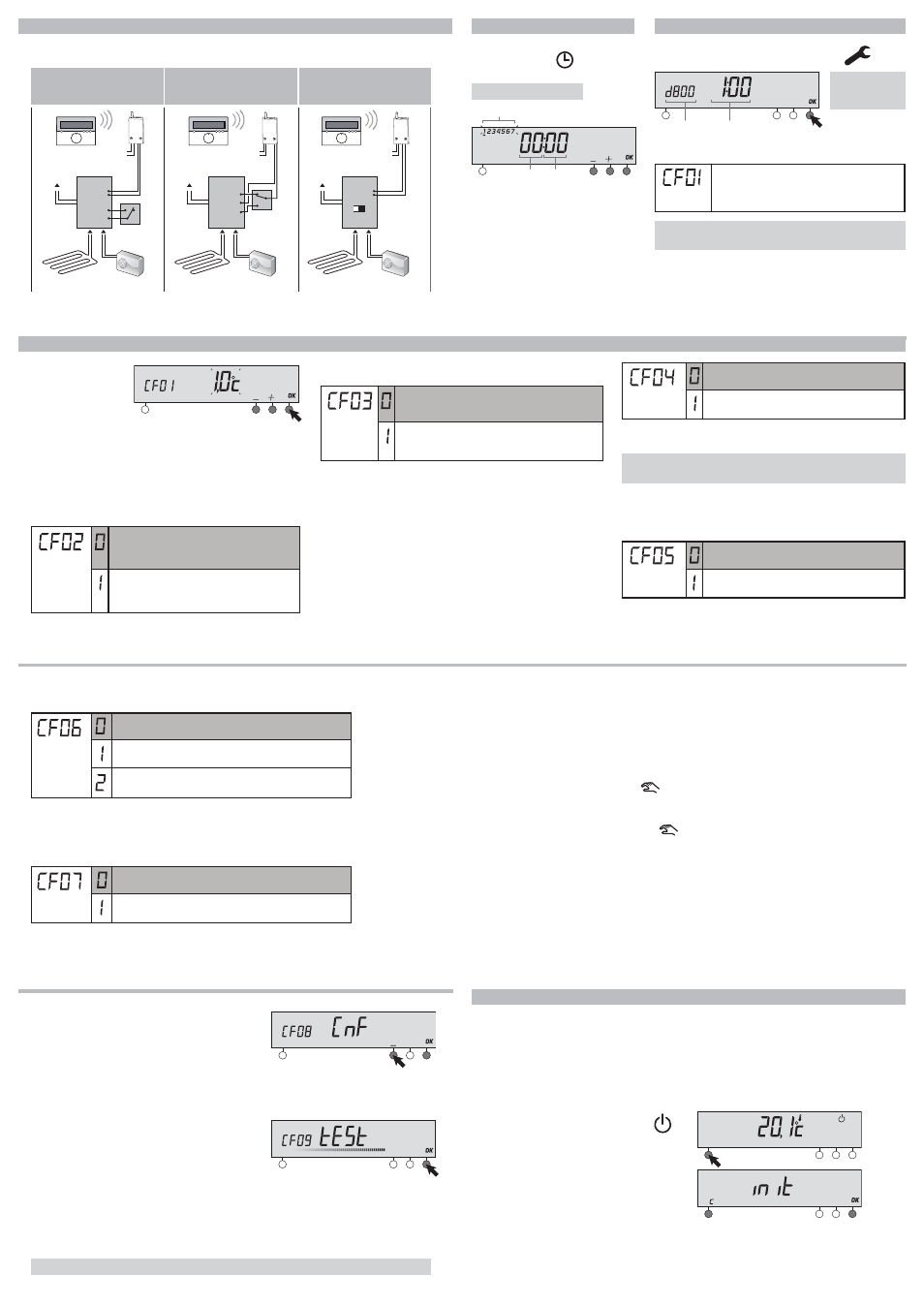

Page 2

Up to 7 home automation products can be associated with the RF 640 receiver.

• Intruder detector: open window = Frost Protection heating

• Telephone transmitter or telephone remote control: remote control of the installation
(heating, home control system)

• Alarm control unit: surveillance alarm = Setback heating

non surveillance alarm = Comfort heating

To link the receiver to a home control system product, the receiver must be switched into
linking mode. Press and hold the

button for 5 seconds until the OK LED flashes.

Confirm the selection of the home control system product:

• door/window magnetic contact and telephone transmitter: quick press on the Test button

• telephone remote control: press the

button

• alarm control unit: in Maintenance mode, press on the test button

Radio configuration.

Your appliances are delivered linked and ready to be installed,

If you wish to cancel the linking of the receiver with the thermostat, press and hold the
receiver button for 30 seconds until the LED is no longer flashing. To relink the TYBOX 610
RF with the receiver, press and hold the receiver button for 5 seconds until the OK LED
flashes rapidly.

Home automation functions in the installation (optional)

Enter your desired setting using the + or - buttons
Press OK to confirm and move on to menu CF08

No home automation functions

Home automation features associated with the RF
640 receiver

Control time base

Select the time base recommended for your type of installation

Enter your desired setting using the + or - buttons
Press OK to confirm and move on to menu CF07

15 min (recommended for controlling convectors or
traditional radiators).

30 min (recommended for controlling heat pumps,
depending on the model)

45 min (recommended for controlling heat pumps,
depending on the model)

7 - Activation

8 - Configuration

Turn the selector
dial to the position

The day numbers flash.

• Press + or - to set the day, then OK

to confirm and go to the next setting.

Repeat these steps to set the hours
and minutes.
To exit the “time setting” mode,
turn the selector dial.

Days (1: Monday… 7: Sunday)

Hours

Minutes

Correcting the temperature measured

IMPORTANT: In order to change this setting, the unit has
to have been running for at least 2 hours beforehand.

Example: If the tem-
perature displayed by
the unit is 19°C and
the temperature mea-
sured is 20°C, add
1°C to the display then
confirm by pressing
OK.

Enter your desired setting using the + or - buttons Press OK
to confirm and move on to menu CF02

Correction possible from -4°C to + 4°C in
increments of 0.1°C. Press the + or - buttons
to make changes, and confirm with the OK
button to move on to the next setting

To access the configuration menus,
turn the selector dial to the position marked

The reference num-
ber of your device is
displayed as well as
the version number

Unit reference

number

Unit version

(e.g.: 1.00)

Press OK to access
menu CF01

If there is a difference between the actual temperature
(taken with a thermometer) and the temperature measured
and displayed by the unit, the CF01 function can be used
to compensate for the difference by adjusting the sensor's
readings.

Automatic mode temperature display option

Enter your desired setting using the + or - buttons.
Press OK to confirm and move on to menu CF03

Continuous set-point temperature display.
With this option, press i to display the
room temperature.

Continuous room temperature display.
With this option, press i to display the
set-point temperature.

With thermostatic valve electric heating or hot water heaters,
the Comfort temperature can be provided by adjusting the ther-
mostat of each radiator. In this case, only the Setback and Frost
Protection temperatures are set by the TYBOX.

Cooling function

If you have a reversible heating / cooling system, change the
setting on the CF04 menu to equal 1. You are now authorised to
switch the Tybox between heating and cooling modes. (see the
section on "Changing the heating / cooling mode")

Enter your desired setting using the + or - buttons
Press OK to confirm and move on to menu CF05

Switching the value on menu CF04 to 0 is only possible when the
TYBOX is in heating mode

Cooling function not authorised

Cooling function authorised.

Setting the comfort temperature in heating mode

Enter your desired setting using the + or - buttons.
Press OK to confirm and move on to menu CF04

Comfort temperature set by the TYBOX

Comfort temperatures set by each radiator
or convector. In this option the screen
displays ConF.

If your thermostat controls a circulator pump, set the value of the
CF05 menu to equal 1.

Circulator pump anti-seizing

Enter your desired setting using the + or - buttons
Press OK to confirm and move on to menu CF06

Anti-seizing off

Anti-seizing enabled (circulator pump
operates for 1 minute every 24 hours)

Radio transmission test

With this mode, you can test the correct
operation of your installation.
• The unit displays tESt and sends out a radio

signal every 3 seconds to the receiver.

• Place the TYBOX 610 RF in the room where

you would like to use it, and check for the
correct transmission of the radio signal to the
receiver (its OK LED flashes each time a radio
signal is received). The radio transmission is
operational.

Press on OK to exit the test mode or turn the control selector dial to another position

If the receiver does not pick up the transmissions, move the thermostat so that you obtain
a suitable radio reception.

Press on the

button of the TYBOX 610 RF.

The receiver LED stops flashing.
The thermostat is associated with the receiver.
Press OK to go on to the menu CF09.

9 - Restoring factory settings

Turn the selector dial to the position

Press the left button for 10 seconds.

Press OK to confirm or C to cancel.

Return to the shutdown mode display.

You can execute a general reset command to return to the factory settings:

- the default configuration settings
- the default set-point temperatures, Heating Mode - Comfort: 19°C, Setback: 16°C

Cooling mode - Comfort: 23°C, Setback: 28°C

- the default schedule (Comfort mode from 6am to 11pm).

10 seconds

Cancel

Confirmation

230 V

Controlling a reversible heat pump

Select cabling that is suitable for your heat pump or refer directly to the manufacturer's
specifications.

Reversible heat pump
with thermostat input
and summer / winter Input

Reversible heat pump
with thermostat heat input
and thermostat cool input

Reversible heat pump
with thermostat input
and Summer / winter switch

Hydraulic kit

Underfloor

heating

output

Summer /

winter switch

Underfloor

heating

output

Underfloor

heating

output

Summer /

winter switch

Geothermal OR Air source

Thermostat

input

Thermostat

input

Summer /

winter switch

Summer /

winter Input

Thermostat

heat input

Commun

Thermostat

cool input

Winter

Summer

lac

k wires

lac

k wires

lac

k wires

6 - Connecting the receiver
