3.8 Signal Termination Between Two (or More) Signs
RS422 Interconnection
The Primary – Mirror quick connect cable is used to terminate signal between two
displays. The six-foot cable goes from the Primary OUT (J34) on the Primary
display to the Mirror IN (J32) on the Mirror display.

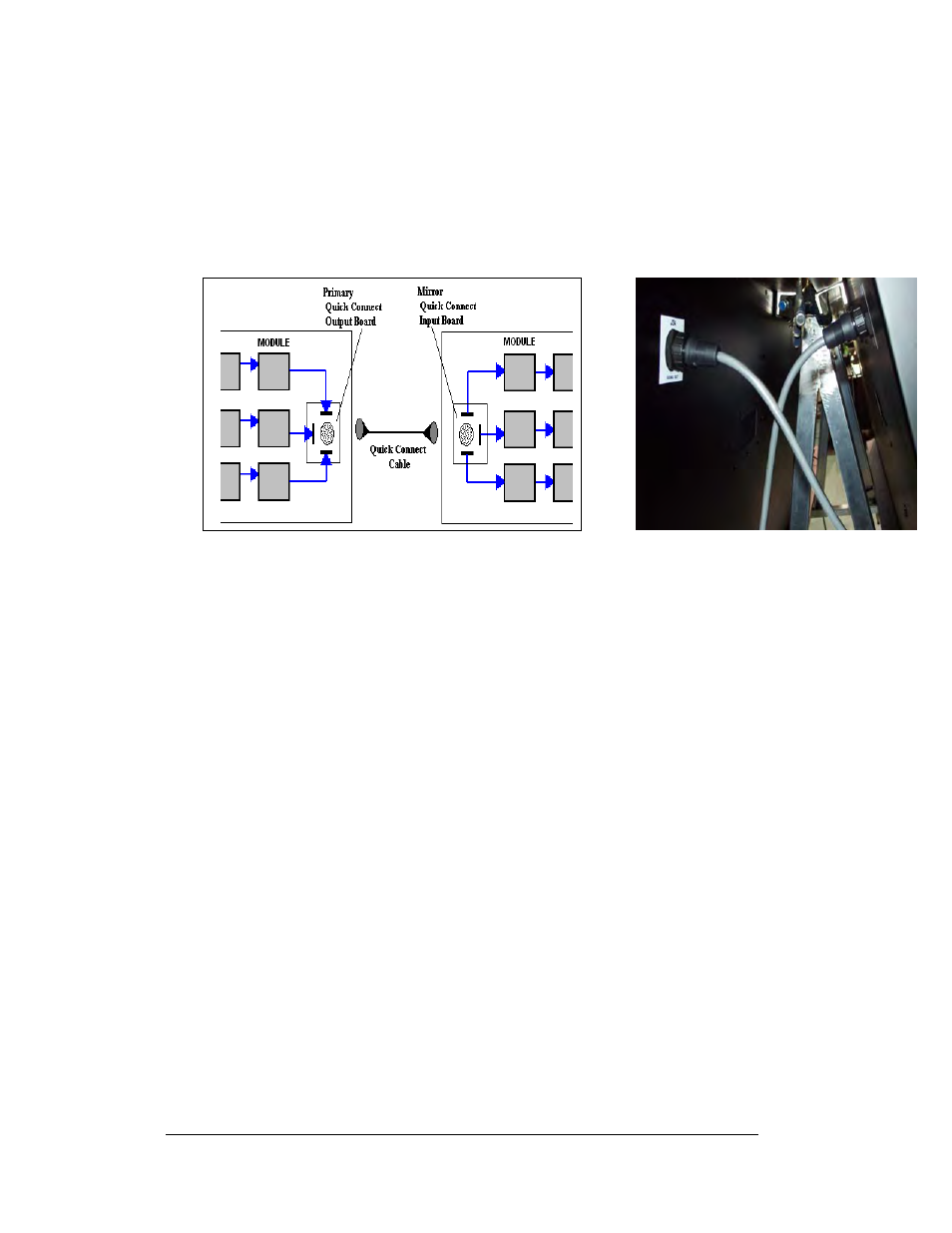

Figure 31: Quick Connect Boards (Input and Output)
Figure 32: Display Interconnect
3.9 First Time Operation
When first operated, the display will run through an initialization or boot up
sequence in which it will display the following:
1. Product Name (Galaxy®)
2. Display Size (Row x Column)
3. Shading (32K RGB)
4. Bootloader Version (OS X.XX)
5. Firmware Number (ED13305)
6. Firmware Revision (Rev X.XX)
7. Hardware Address (HW:XX)
8. Software Address (SW:XX)
9. IP Address: (172.16.192.25)
10. Subnet Msk: (255.255.0.0)
11. COM1 Configuration (C1:V15) ((Modem C1:V15) If a Modem is present)
12. Line Frequency (CLK:60 Hz)
13. Display Name Description
