TNMC & Electronic Caption Troubleshooting & Maintenance 37
Section 6: TNMC & Electronic Caption
Troubleshooting & Maintenance
IMPORTANT NOTES:
1. Always disconnect scoreboard power before doing any repair/maintenance work on the
message centers.
2. Permit only qualified service personnel to access internal display electronics.
3. Disconnect power when not using the scoreboard.
6.1 Display Overview
Team Name Message Centers (TNMCs) are programmable LED displays that allow users to
show custom Home and Guest names or messages of ~15 characters on the scoreboard in
place of static vinyl captions. TNMCs are typically ordered factory-installed, but they may
also be field-mounted after the scoreboard is in place. TNMCs are available with three
different pixel dimensions: 8x32, 8x48, and 8x64. Characters are shown on one line using
single- or double-stroke fonts up to 10" high (254 mm) and 14" (355 mm) for 34 mm and
46 mm TNMC units, respectively.
Electronic captions, on the other hand, are pre-programmed to only show specific labels to
match the captions for a particular sport mode, making it much simpler to switch between
sports. Characters are shown on one line using single-stroke fonts.
Both TNMCs and electronic captions are available with amber, red, or white LEDs.
Matrix Size
# of
modules
Pixel Spacing Active Display Area Weight*
8x32 4 34 mm (1.3") 10.6" x 42.5" (269 mm x 1080 mm) 40 lb (18 kg)
8x48 6 34 mm (1.3") 10.6" x 63.8" (269 mm x 1621 mm) 60 lb (27 kg)
8x64 8 34 mm (1.3") 10.6" x 85.1" (269 mm x 2162 mm) 80 lb (36 kg)
8x32 4 46 mm (1.8") 14.4" x 57.6" (366 mm x 1463 mm) 50 lb (23 kg)
8x48 6 46 mm (1.8") 14.4" x 86.4" (366 mm x 2195 mm) 70 lb (32 kg)
* TNMCs are typically installed in pairs; double this value to find the total added weight.
Electronic captions come in sets of 4 or 6, depending on the scoreboard width.

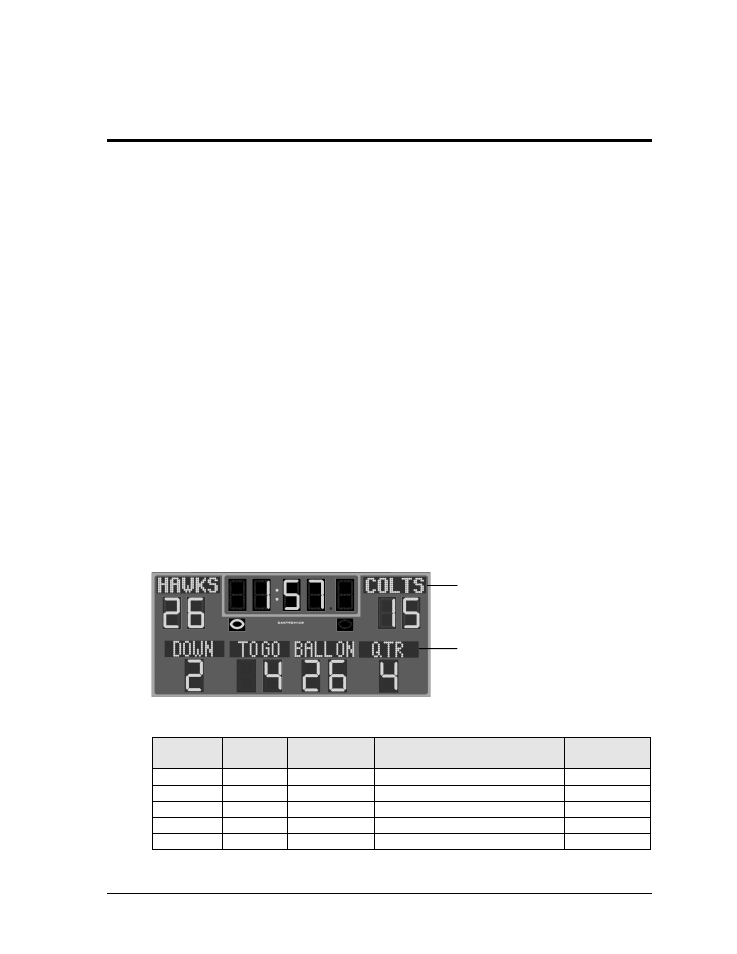

Figure 30: Scoreboard with TNMCs and Electronic Captions
TNMC
Electronic Caption
