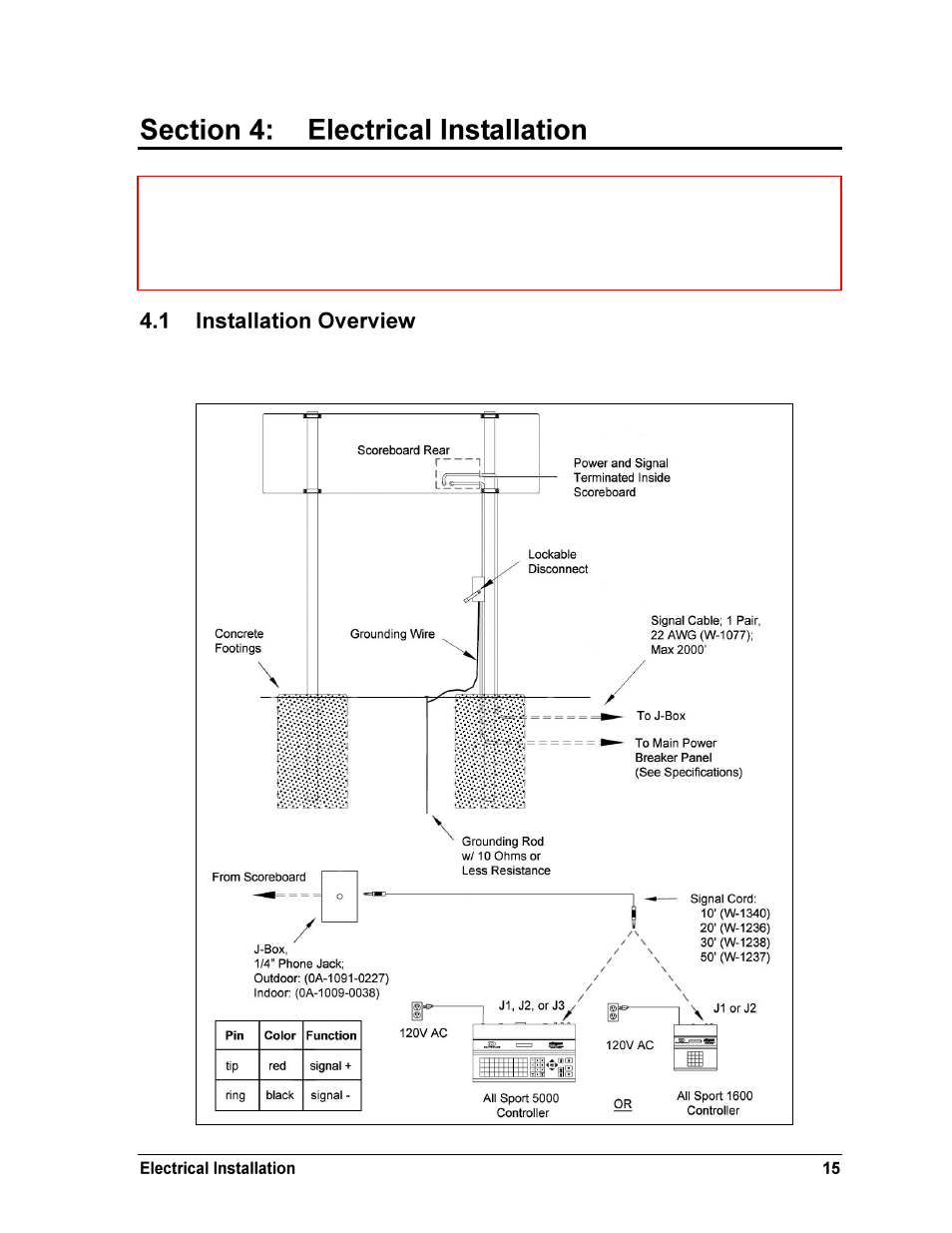

The diagram shown in Figure 11 illustrates a typical wired setup between a single-section
outdoor scoreboard and controller. Daktronics part numbers are shown in parentheses.
Figure 11: Wired Installation
CAUTION:
Only qualified individuals should terminate power and signal cable and access the
electrical components of the display and its associated equipment. It is the responsibility of the
electrical contractor to ensure that all electrical work meets or exceeds local and national codes.
Daktronics engineering staff must approve all changes or the warranty will be void.
