Dimension One Spas Amore Bay - Manual (Page 2)

Amore Bay Specifications Dimension One Spas
Doc-1967 Rev - B Rev Date: 4/6/07
Amore Bay
Note: 1. Subject to change without notice.
Architectural Specification
Caution:
Due to manufacturing tolerances there could be some
minor differences between the actual spa and the drawing above.
If site planning is critical to such tolerances, be sure to measure your actual spa.
2. Engineering specs may differ slightly from brochure.
3. For E-Z lifter installation allow 18” (45.72cm) clearances on the backside of the spa.
4. Alternative cabinets may add significant weight. Ask your dealer for exact details
Page 2 of 2

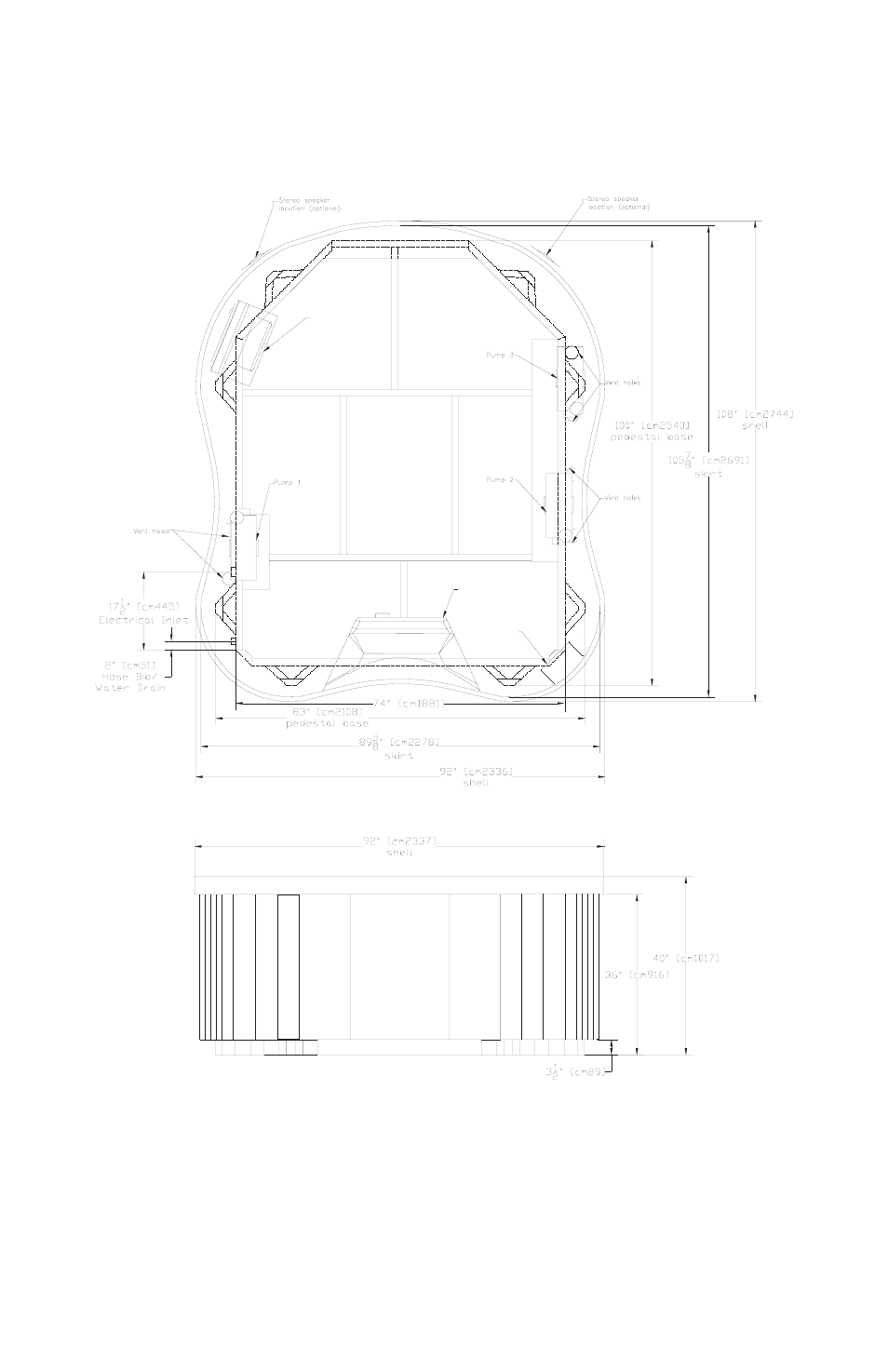

Top View Of Spa
Front View Of Spa
Spa lip
Pedestal Base
Equipment
Compartment
Optional stereo
Sub-woofer location
Sequencer
Compartment
Dimensions shown as inches and (centimeters) -XX" (cm)
