3.0 Equipment Required
․
DC Power Supply 0 - 20 V @ 0 -
20A
(Agilent 6574A 0 -60V/0 - 35A or equivalent).
․
Oscilloscope (Tektronix TDS 460A or equivalent) 4 Channel 400 MHz, equipped with a
x1 scope probe, a x10 scope probe, and two BNC cables (length less than 20
inches/500mm)
․
Digital multimeters, one with 20A range and ideally all with 4 1/2 digit resolution
(DVM1, DVM2 and DVM3) (Zentech 2041 or equivalent).
․
Electronic load (Chroma 63030 or equivalent), 300W approx rating, or a suitable
resistive load.
․
DC power supply (GW GPC-3060D or equivalent).
4.0 Equipment Set-Up and Description
Please refer to the Power Module Evaluation Board Layout (see page 15) for reference designators
cited in this document and Figure 1 is the Set-up Diagram.

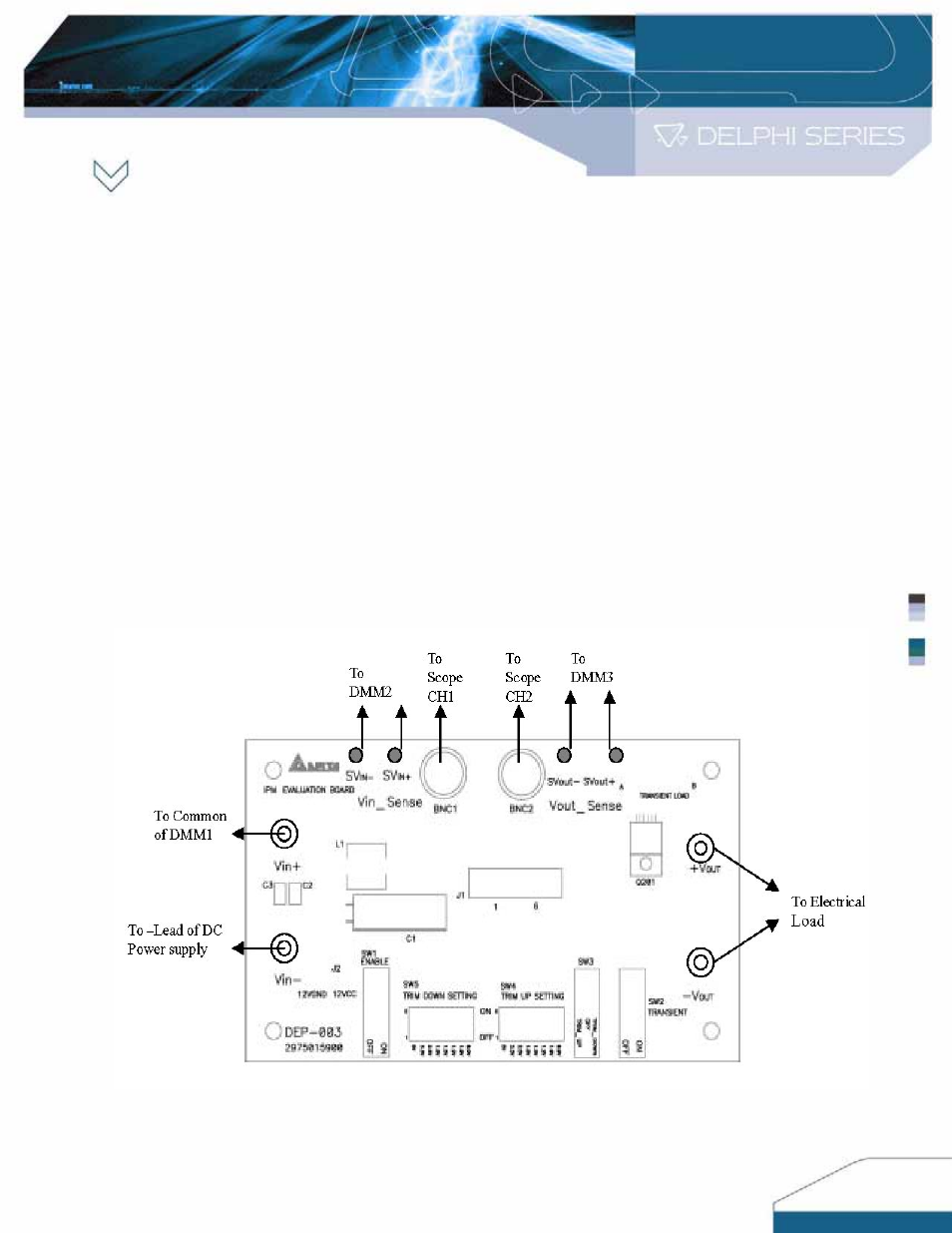

Figure 1. Set-up Diagram
2
