21 User’s Manual for SPRO Network Control Host Series

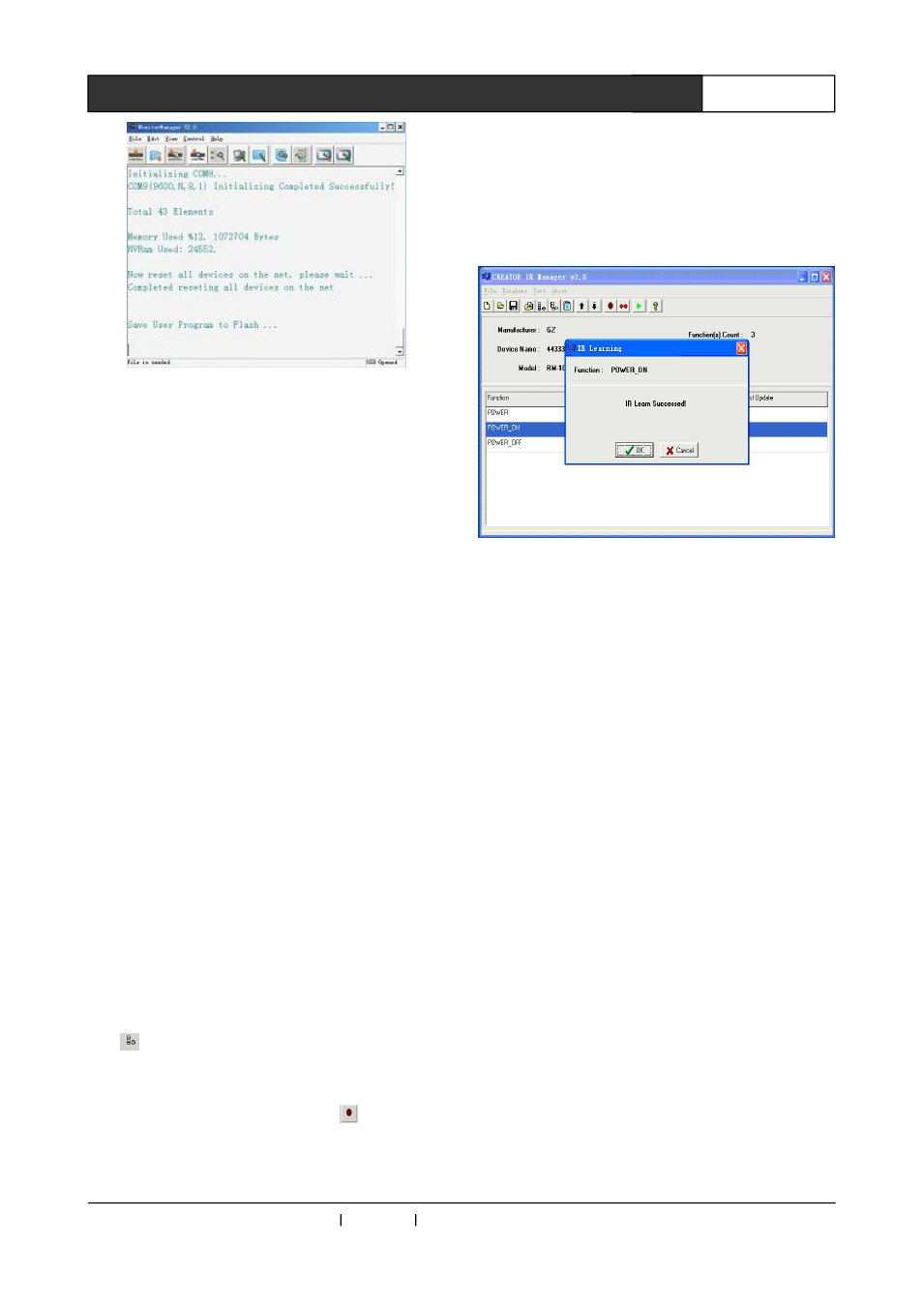

Picture 5-9
5.2 IR Manager- Infrared Code
Management Software
IR Manager is a tool software for infrared code
management, capable for being imbedded into
programming software in the central control host,
or use separately.
IR Manager provides the management function
relevant to infrared code, including acquiring
(learning), saving and managing the infrared code,
and saving it in file format.
Infrared code file could be called by Control
System Programming Software, in the manner of
using the key of “Rebuilt User IR Database”in
the toolbar of the programming software.
Infrared learning steps：
Run infrared learning software IR manager
Establish an infrared file, fill in the information
like model, name and model of the device, click
on
key, add the key name for infrared
recording.
1. Click on infrared learning key ， access to
infrared learning window, with prompt of
“Waiting for IR data … ”. Then place the
infrared remote controller in alignment with
the infrared receiving “Sensor” window of the
programming central control host, press the
infrared remote control key to be recorded.
2. Other infrared key learning is likewise.
Picture 5-10
5.3 Touch Panel-Application of
Touch Screen Programming
Software
Touch Panel--Touch Screen programming
software shares the same installation way as the
Control System programming software. Please
see 5.1.1 for details.
5.3.1 User’s Project Download
After successfully installing the touch screen
driver,
run touch screen programming
software—Touch Panel, as picture 5-11; Open
touch screen user project, click on “project” to
select “compile F5”, confirm it and select “Upload
Project F6”, download pop-up window can be
seen, press “Download” key to download the
user program onto the touch screen.
