7 User’s Manual for SPRO Network Control Host Series
SPRO-CAV801 supports 1-way VGA video and
1-way DVI output port. SPRO-CAV802 supports
3-way VGA video and 1-way DVI output port,
capable of connecting to the terminal devices with
VGA or DVI video signal, like projector, HD
screen etc.
13 ） AUDIO INPUTS——Audio signal input
port
Support 5/8-way balanced or unbalanced audio
input port (subject to specific model), capable of
connecting to DVD and VCD etc.
Page 7 Audio port instruction
14） AUDIO OUTPUTS——Audio signal output
port
Support 2/4-way balanced or unbalanced audio
output port (subject to specific model), capable of
connecting to amplifier and recording devices etc.
15 ） CARDFRAME#—— Expansion card ID
setup
16） SLOT1~SLOT4——Expansion slot
Insert expansion card to finish corresponding
function.
2.3 Introduction to part of ports
in the host

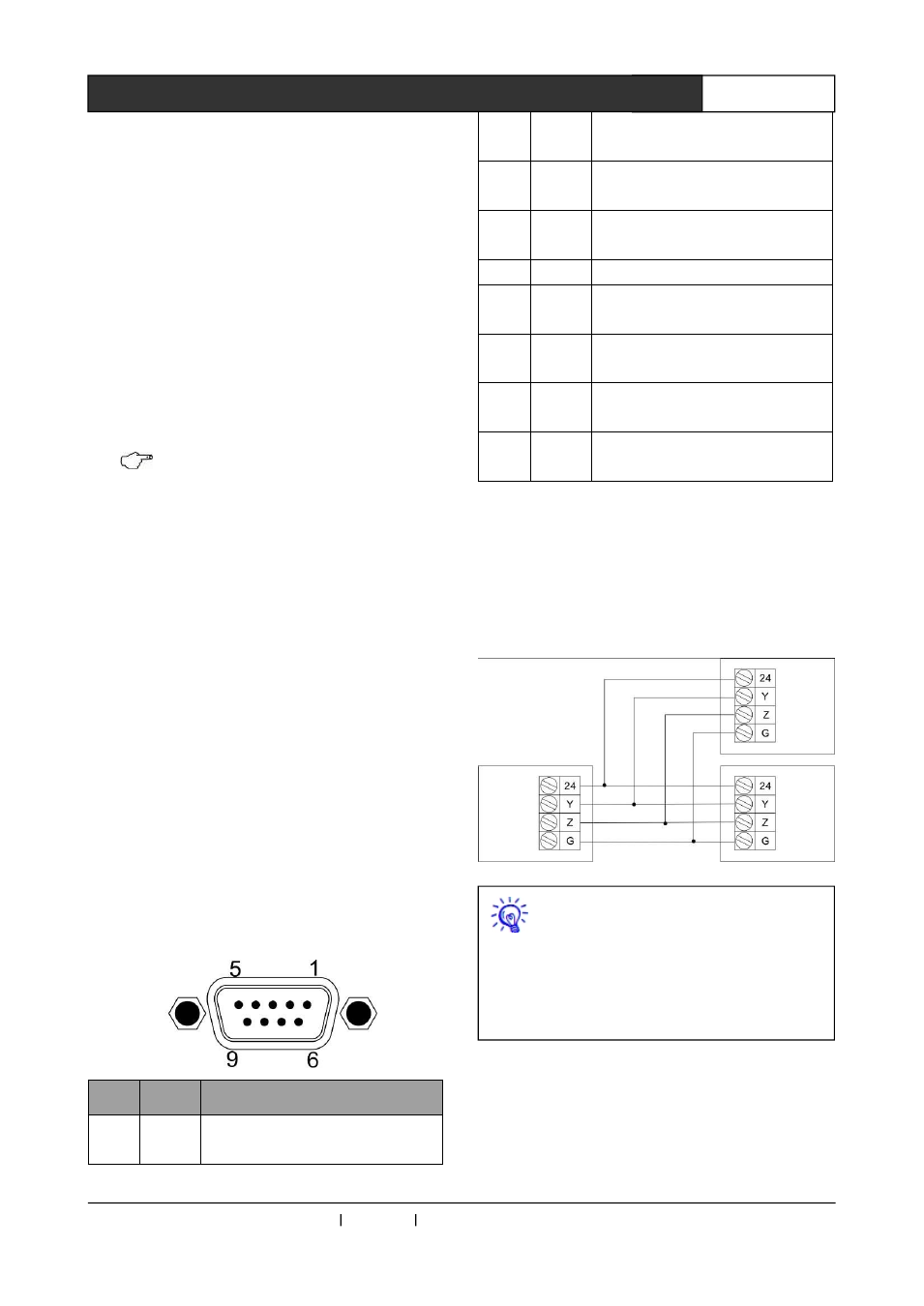

2.3. COM pin definition
Pin Signal Definition
1 RXD
Used for RS-485 protocol,
connecting with pin 9 as RS-485“-”
2 RXD
Used for RS-232 protocol ， receive
data
3 TXD
Used for RS-232 protocol，transmit
data
4 TXD+
Used for RS-485 protocol,
connecting with pin 6 as RS-485“+”
5 GND Ground
6 RXD+
Used for RS-485 protocol,
connecting with pin 4 as RS-485“+”
7 RTS
Used for RS-232 protocol, request to
send
8 CTS
Used for RS-232 protocol, clear to
send.
9 TXD
Used for RS-485 protocol,
connecting with pin 1 as RS-485“-”
2.3.2 CR-NET Connection
Flexible external devices (CR-NET) connection
manner supports series and parallel connections.
Please
note the one-one corresponding
connecting within 24, Y, Z and G.
2.3.3 USB Port Connection
USE port is for the communication between
the computer and the host when debugging the
program.
CAV801, CAV802, CON9000,
CON9100 and CON9200 share the same
In installation and use, plugging network
devices with electricity should be avoided as much
as possible, in case of electric shock, which could
cause communication failure between network
devices and the host.
