4 CR-iMAX901HD Multiple Signals Scaler User Manual
2.2 RJ45 network cable
producing methods
This system used CAT-5 (five wire) as materials,
and installed RJ45 connectors at both ends of
CAT-5(commonly known as crystal head),thus to
connect the network device.Twisted Pair standard
connection provisions is designed to ensure the
layout symmetry of the cable connector,thus you
can make the interference between the cable
connector cancel each other out.General UTP
cable has four pairs of thin twisted lines,and
marked with different colors.There are two
methods of twisted pair connection:EIA/TIA 568B
standard and EIA/TIA 568A standard.

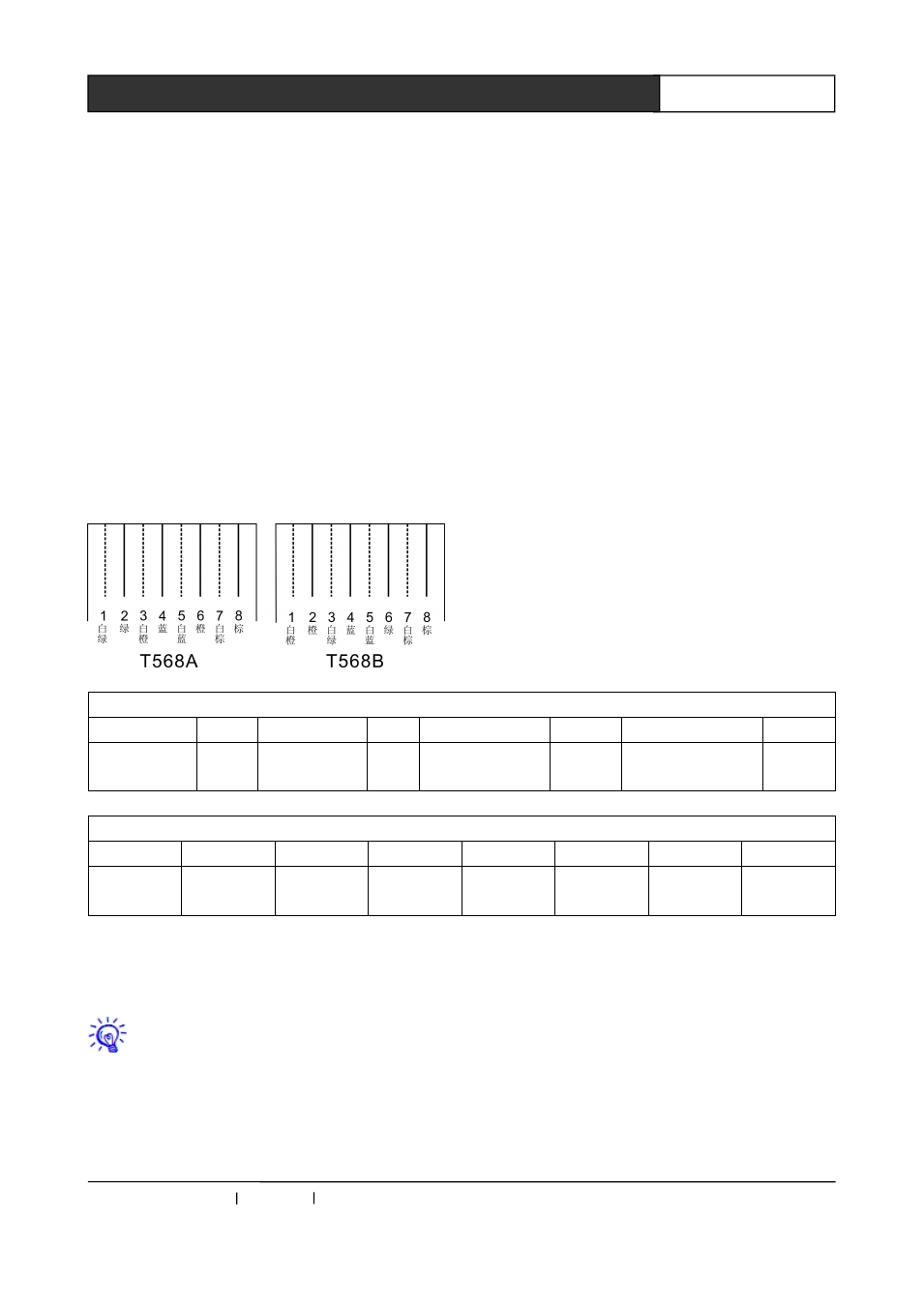

T568A line order
1 2 3 4 5 6 7 8
White and
green
green
White and
orange
blue White and blue orange White and brown brown
T568B line order
1 2 3 4 5 6 7 8
White and
orange
orange
White and
green
blue
White and
blue
green
White and
brown
brown
Straight-through line:both ends are connected according to T568B standard.
Crossover cable:one end is connected according to T568A standard, the other end is connected
according to T568B standard.
When connected to the network router,we use the straight-though line connection method.
When connected to a PC computer control,we use crossover cable connection method.
