CR-iMAX901HD Multiple Signals Scaler User Manual

Chapter One Overview

New generation of CR-iMAX901HD is a kind of
scaler that can switch different types of signal
input to HDMI and HDBase output. It has 9 input
video signal source:
CVBS,(Y,Pb/Cb,Pr/Cr),VGA ,HDMI and HDBaseT
signal convert/switch to unified HDMI/HDBaseT
signal output,all input signals can fold lines to a
user-defined output resolution.
The product also supports 9 unbalanced analog
stereo audio inputs,by switching to the audio
amplifier output. HDMI input and output can
support audio signal synthesis or separation.
Scaler using the front panel buttons,RS232,IR
and Ethernet control and HDBaseT remote
control,can be widely used in broadcast television
engineering, multimedia conference room, large
screen display engineering, television education,
command

and

control

centers

and

other

occasions.

1.1 Features

Support

9

video

signal

input;

1CVBS,1Y,Pb/Cb,Pr/Cr,2VGA,3HDMI,
1DisplayPort, 1HDBaseT input;

2 video signal output; 1 HDMI,1 HDBaseT

output;

Support 9 analog audio inputs;unbalanced

stereo, 20Hz~20KHz;

Support 1 balanced stereo audio amplifier

output;2x10W @ 8Ω,2x20W@4Ω;

Each audio input has 8 degree coarse control

of volume,the output has 100 degree fine control
of volume;

Input and output resolution maximum support

WUXGA;

Audio and video switching;truly realizing

switch with no blank screen, no debris;

Support for HDM 1.2a, HDCP1.3,Display

Port 1.1;
 HDMI inputs and outputs can isolate or
synthesize audio;
 Support brightness,contrast adjustment, VGA
screen automatically adjustment,thus to meet
your different needs for image screen visual
effects;
 Support brightness,contrast adjustment,VGA
screen automatically adjustment,thus to meet
your different needs for image screen visual
effects;
 EDID manager;
 With the function of restoring factory defaults.

1.2 Installation

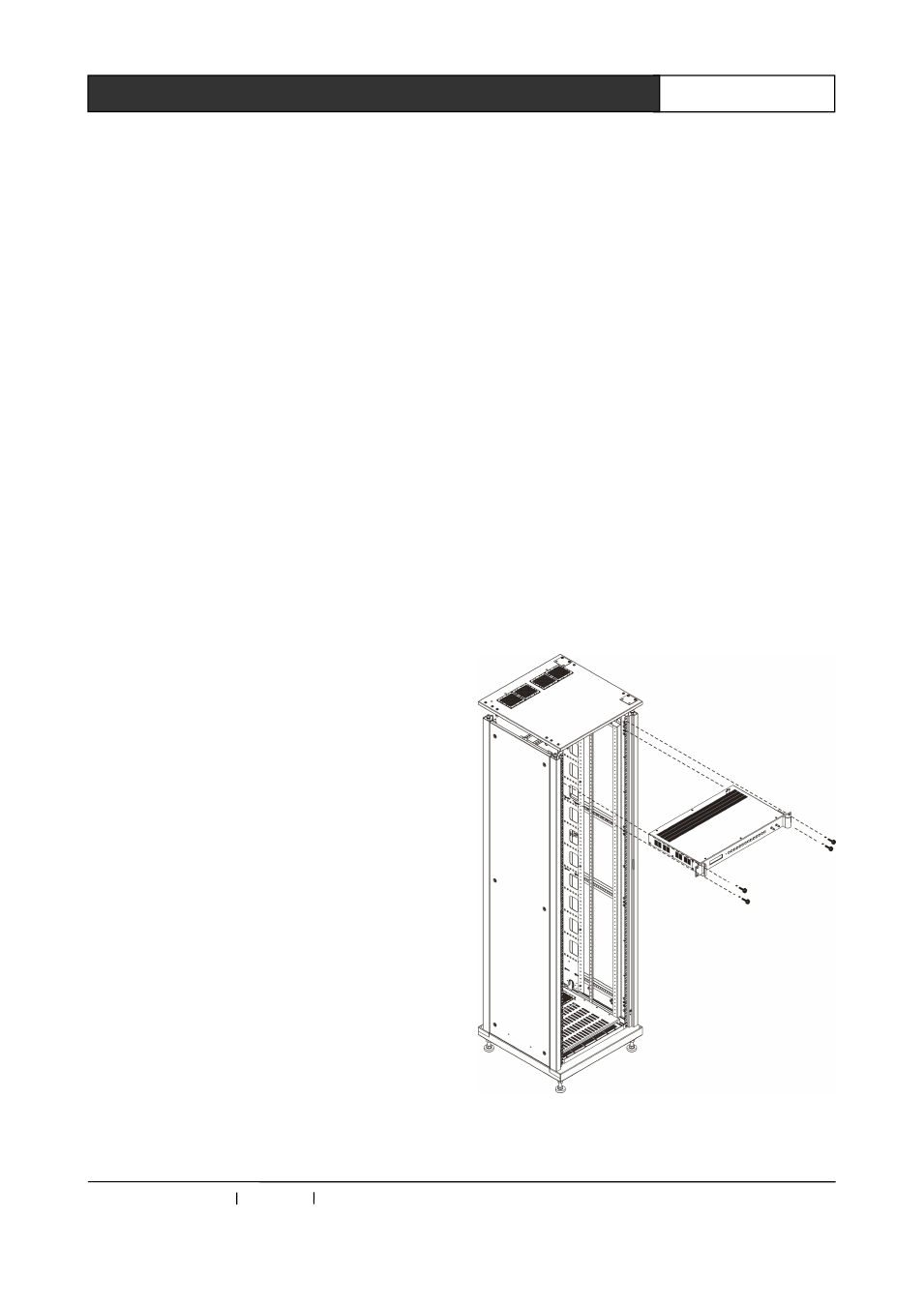

Matrix host with all-metal chassis can be installed
on the standard 19-inch rack,as shown below:
