3 CR-iMAX901HD Multiple Signals Scaler User Manual
8 MASTER VOL——master volume control
knob
This knob can help to adjust the analog output
volume,each step is 0.5Db.
9 AUDIO INPUTS——9 unbalanced audio
inputs
AUDIO INPUTS1~9 unbalanced audio input
interface,wherein when the AUDIO INPUTS 1~4
audio interfaces have access to the audio
source,CV,YPbPr,VGA1,VGA2 and other video
input interface have access to signals:
AUDIO INPUTS 1 and CV signal default fixed
synthesis HDIM output.
AUDIO INPUTS 2 and YPbPr signal default fixed
synthesis HDIM output.
AUDIO INPUTS 3 and VGA1 signal default fixed
synthesis HDIM output.
AUDIO INPUTS 4 and VGA2 signal default fixed
synthesis HDIM output.
10 VIDEO INPUTS——1 CVBS, 1 component
video YPbPr,2 VGA,3 HDMI,1 DisplayPort,1
HDBaseT input.
DisplayPort audio interface input signal
can not be output from the amplifier balanced
audio interface.
11 AMPLIFIER OUTPUT ——1 amplifier
balanced audio output
12 VIDEO OUTPUT——1 HDMI, 1 HDBaseT
output;
Wherein when the CV, YPbPr, VGA1,VGA2 video
input interface and AUDIO INPUTS 1~4 audio
interface have access to signals:
AUDIO INPUTS 1 and CV signal default fixed
synthesis HDIM output.
AUDIO INPUTS 2 and YPbPr signal default fixed
synthesis HDIM output.
AUDIO INPUTS 3 and VGA1 signal default fixed
synthesis HDIM output.
AUDIO INPUTS 4 and VGA2 signal default fixed
synthesis HDIM output.
13 CONTROL——signal control district
RS-232——RS-232 control port, with the baud
rate of 115200,is to connect a computer or other
equipment with RS232 control interface to
achieve the goal of controlling the device.
ETHERNET——Ethernet control port can get into
the internet to achieve the goal of controlling the
device.
14 Ground column
15 System power input port
Controller power input,support AC100~240V
50/60Hz.
2.2 Interface description
2.2.1 COM port description
Professional CR-iMAX901HD switching scaler
can control via RS-232 serial interface or optional
Ethernet control port.

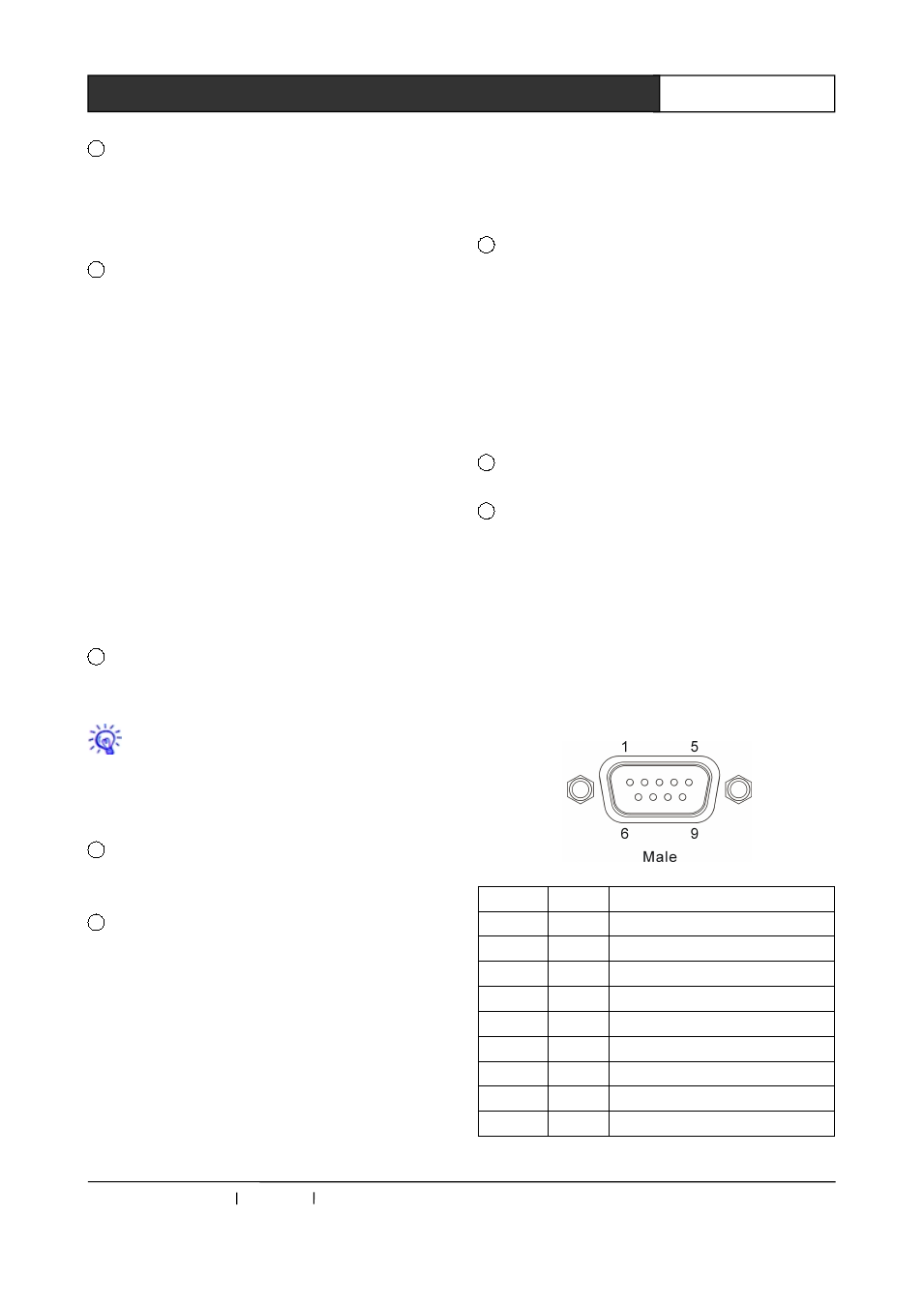

COM port pin description is as follows:
Pin-out signal description
1 - -
2 TXD Sending data
3 RXD Receiving data
4 - -
5 GND Signal ground
6 - -
7 - -
8 - -
9 - -
