SFC4200/SFC1275G Synthesized Frequency Downconverter

User Interfaces

TM054 - Rev. 4.0

4-13

4.2.5 Utility Access Menus

Depress

from the Fault Menu to access the Utility Access Menu. To gain access to the
various utility menus of the converter, depress . The Utility Access Menu will appear
as shown in Figure 4-9.

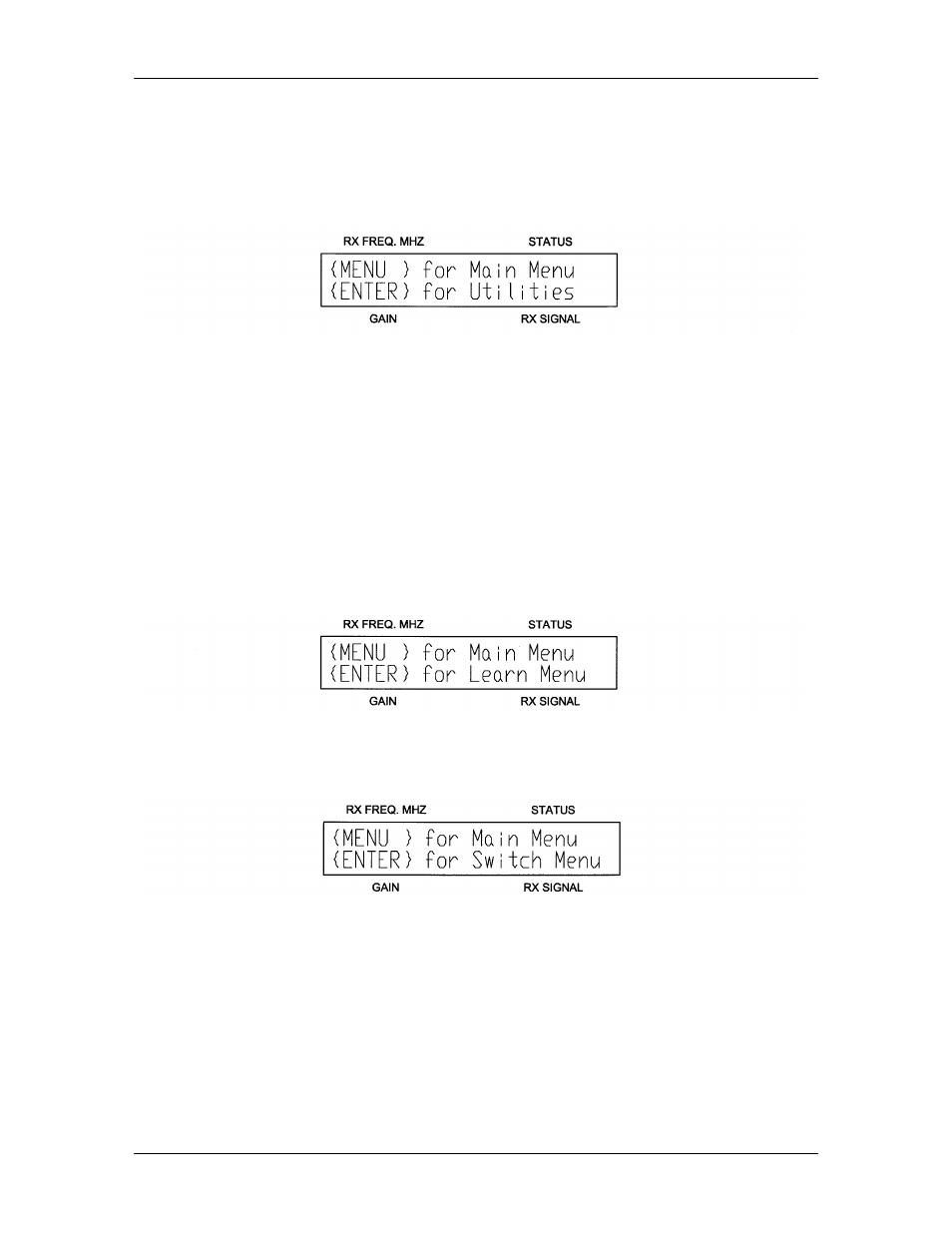

Figure 4-9. Utility Access Menu

Pressing will scroll to the first Utility Menu which is the Configuration Menu for
Primary and Single Converters, or the Learn Menu for Backup Converters. Depressing

again will scroll to the second Configuration Menu. Use to scroll through the
Reference Menu, Status Menu, and Output Attenuator Calibration Menu. Calibration Menus
represent those alignments, settings and various operating parameters that are set in non-
volatile memory. Most calibration is done via the RS-232 Interface, but those same parameters
can be accessed via calibration menus.

Note: The Calibration Menu is denied when the converter is online, as these submenus
allow direct access to the synthesizer tuning.

For a 1:1 Backup, the menu will appear as shown below in Figure 4-10.

Figure 4-10. Menu for a 1:1 Backup

For a 1:8 Backup Converter, the Menu will appear as shown below in Figure 4-11.

Figure 4-11. Menu for a 1:8 Backup
