Chapter 3. General Information
XSAT#: (XSAT1/XSAT2) Sets the currently selected XSAT. The Currently Selected XSAT is
used in several menus (in 1:1 mode only) that allows the user to view or change most
parameters of the Currently Selected XSAT.
Note: This selection is not to be confused with the Online XSAT selection in the
Redundancy controller section.
The General Information menu is a status menu only. The Model Number, Serial Number,
Firmware Version and the Circuit ID Message will be displayed for the Currently Selected XSAT
as shown.

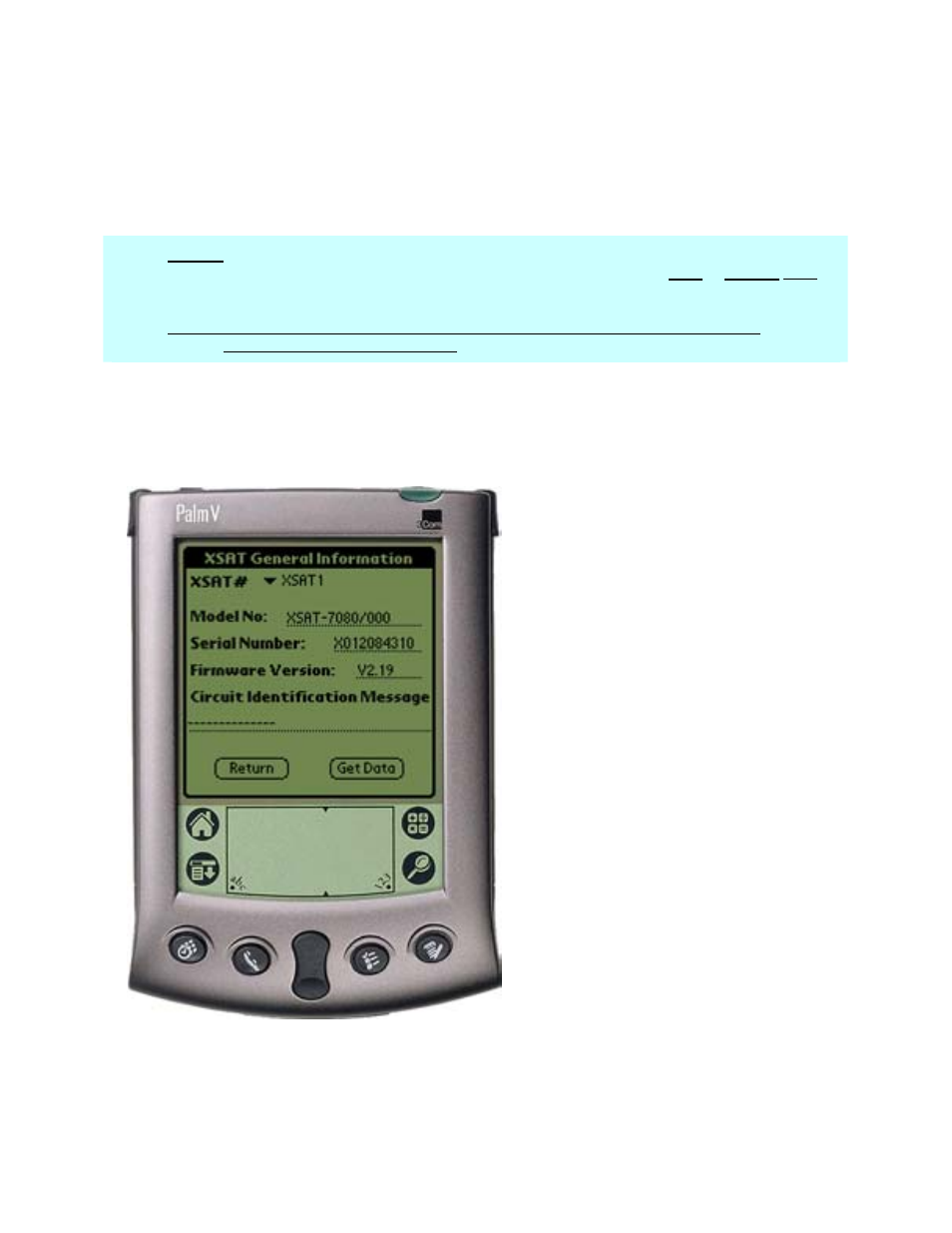

In this particular example, the data from XSAT
#1 will be displayed.
As in most of the following menu items, the
(RETURN) select soft button will return the
user back to the main menu and NOT program
any programmable parameters (if applicable).
The (GET DATA) select soft button will
request data from the Currently Selected XSAT
and will refresh the XSAT General
Information screen.
The (UPDATE) and (SEND DATA) soft
buttons (not shown) will program the Palm
device with any parameters that have changed
since the menu was last displayed.
Figure 1
