XSAT Palm Link 2 Revision 0 MN/XPLINK.IOM
13

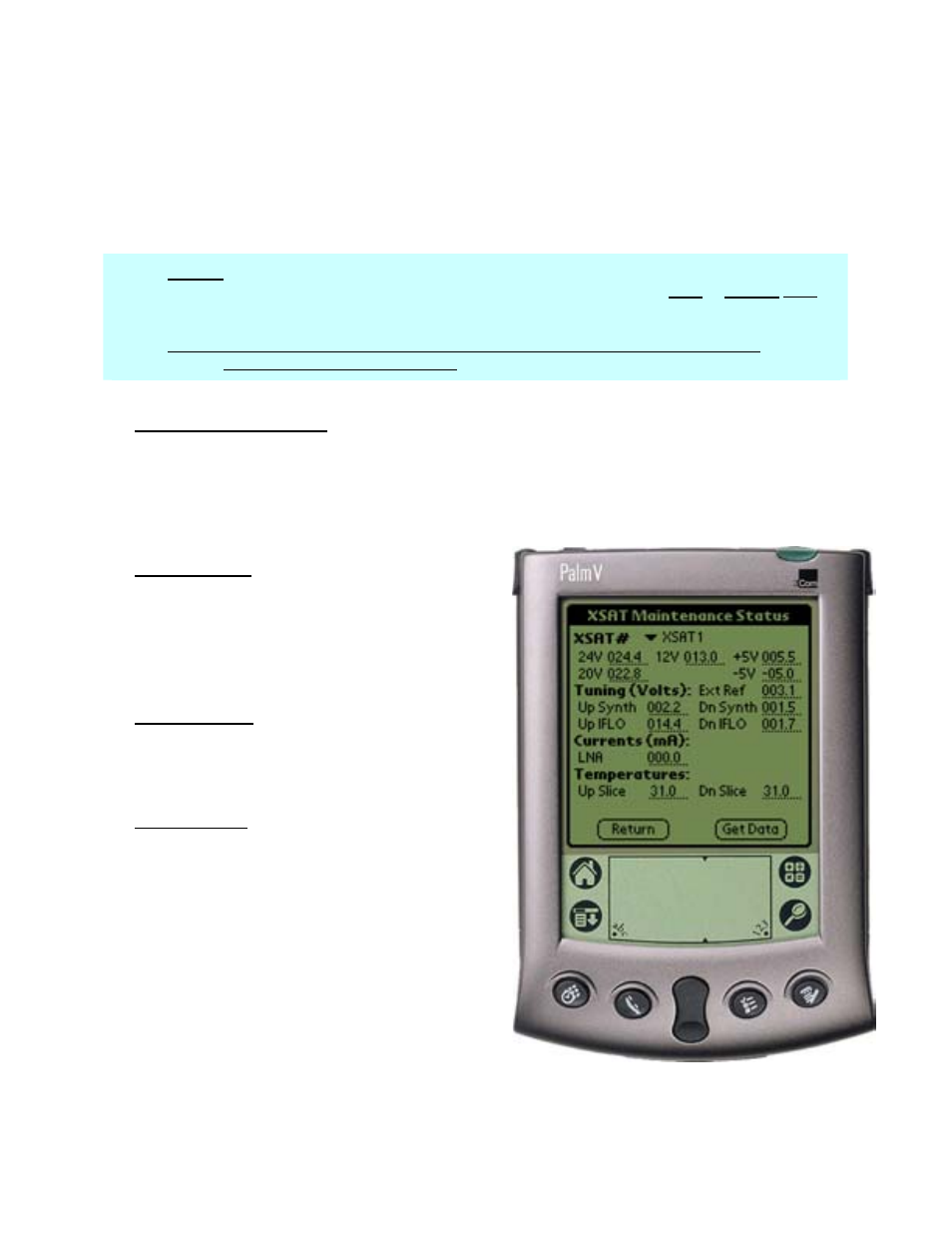

Chapter 10. Maintenance Status
XSAT#: (XSAT1/XSAT2) Sets the currently selected XSAT. The Currently Selected XSAT is
used in several menus (in 1:1 mode only) that allows the user to view or change most
parameters of the Currently Selected XSAT.
Note: This selection is not to be confused with the Online XSAT selection in the
Redundancy controller section.
XSAT Internal Voltages:
The XSAT unit monitors the 5 internal DC voltages: 24,20,12,+5, and –5. The voltages are
displayed for the Currently Selected XSAT. These voltages are updated when the Maintenance
screen is entered, or if the Currently Selected XSAT is changed, or if the (GET DATA) button is
pressed.
Tuning (Volts): The XSAT monitors the 4
tuning voltages which are variable depending on
frequency. These voltages are updated when
the Maintenance screen is entered, or if the
Currently Selected XSAT is changed, or if the
(GET DATA) button is pressed.
Currents (mA): The LNA currents are
displayed in milliamps and can be refreshed
with the (GET DATA) button or as in the above
2 sections.
Temperatures: The Up Slice and Down Slice
temperatures are displayed in degrees C. These
temperatures can be refreshed with the (GET
DATA) button or as in the first 2 sections.
Figure 6
