Fast Ethernet Switching System User’s Guide

Managing the DES-5200

Modify VLAN Menu

The Modify VLAN menu, displayed in Figure 44, enables you to modify VLANs.

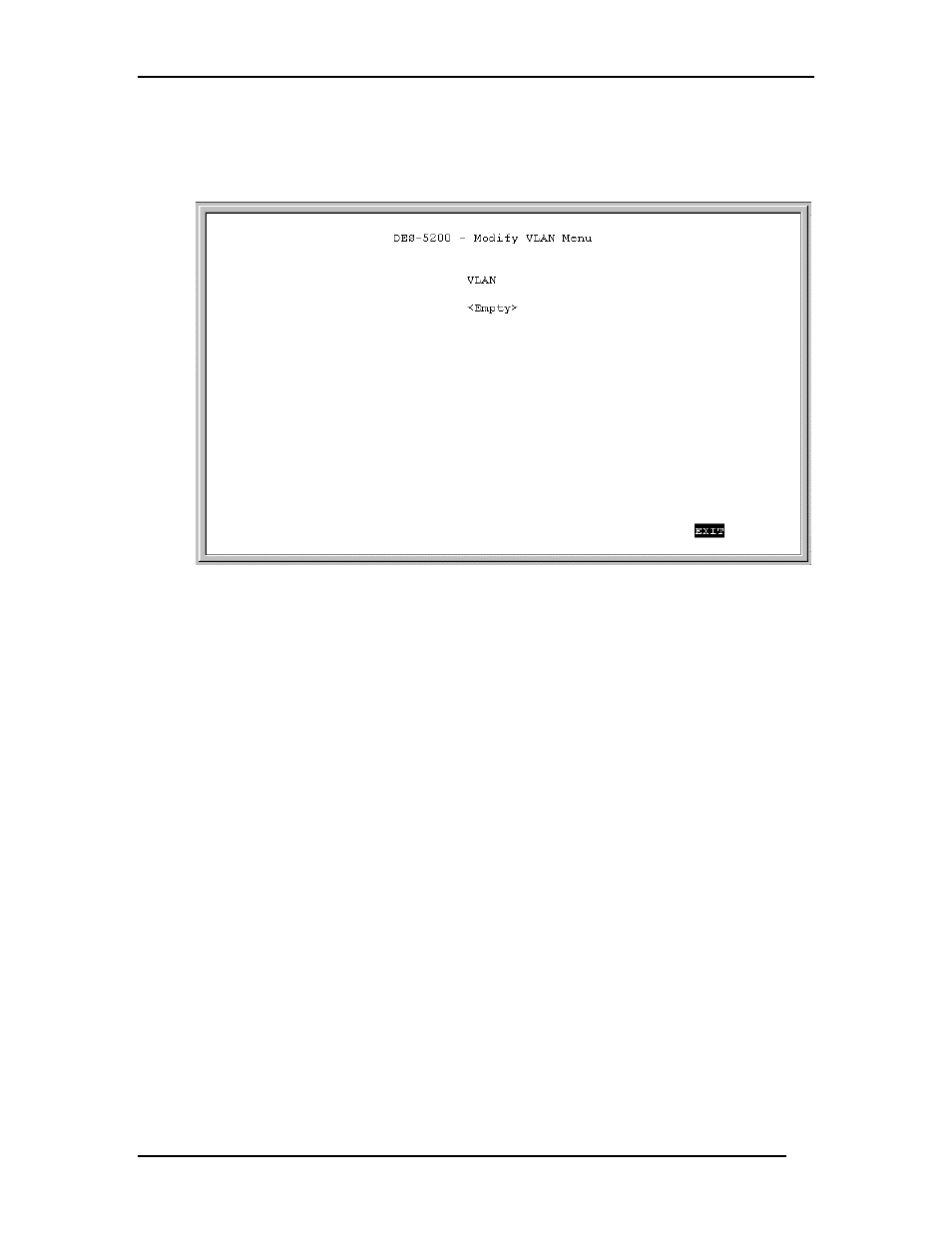

Figure 44: Modify VLAN menu

Virtual LAN Name

The names of all VLANs appear in this column.

Follow these steps to modify VLANs:

1. Select the name of the appropriate VLAN.

2. Press Enter.

3. You will see the VLAN Modify menu. Use this panel to modify a

VLAN.

4. Select the ports that you want to include in the VLAN or delete

from the VLAN. Toggle the space bar to change the current
setting. Available means the port is available for inclusion in the
VLAN. Selected means the port has been selected as part of a
VLAN.

5. Select Save and press Enter to implement your changes.
