Dimension One Spas Arena - Manual (Page 2)

Note: 1. Subject to change without notice.
Specification, 2006, Arena Doc-1516 Rev -A Rev Date: 10/31/05
2006 Arena Specifications Dimension One Spas
2006 Arena
THIS 3 FOOT SQUARE AREA
IS TO BE SUPPORTED
CONSISTENT WITH THE
EDGES OF THE SPA BASE.

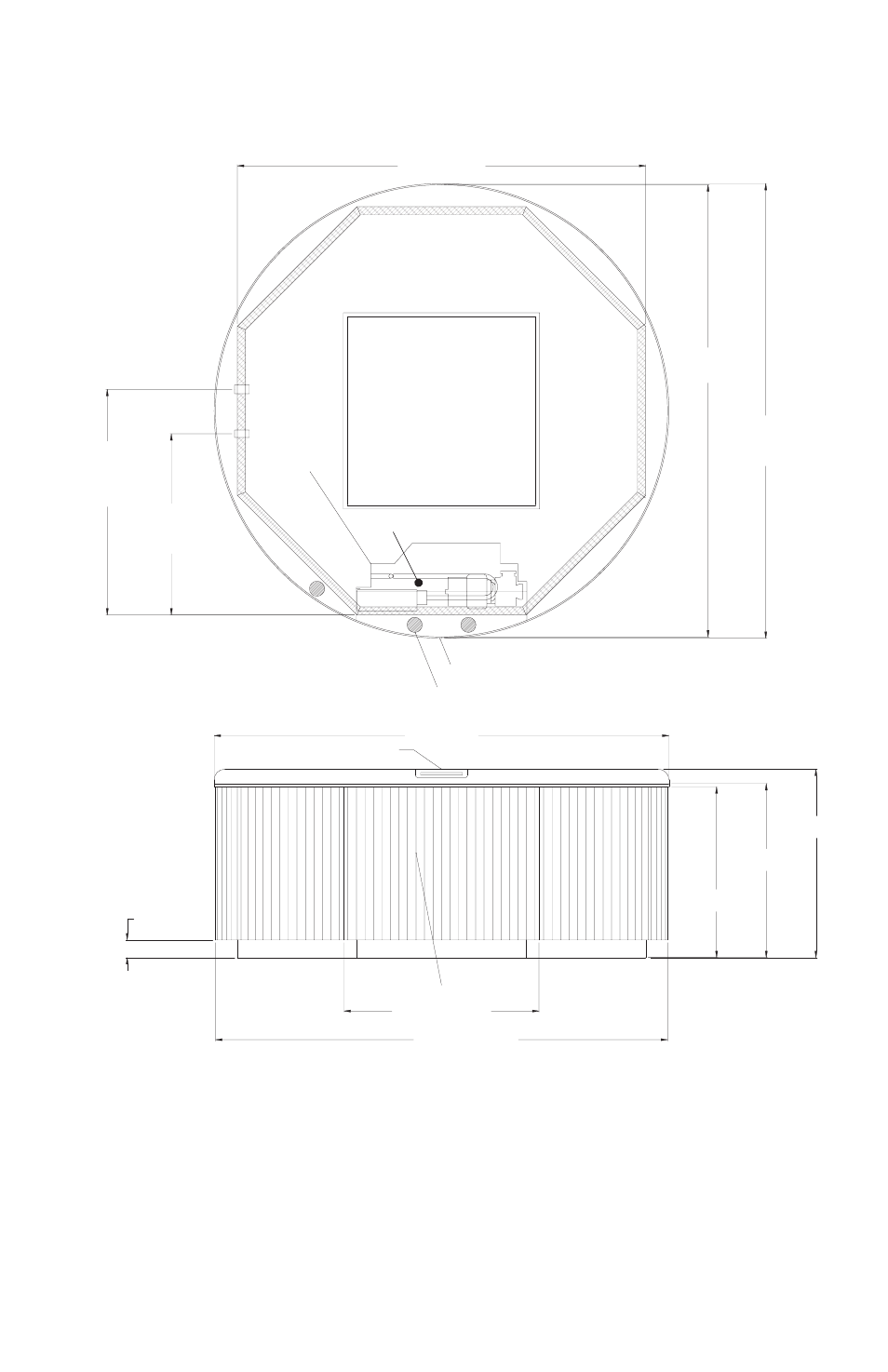

Top View of Spa
87 in [221 cm]
Shell
See Caution
86 3/8 in [219 cm]
Skirt
34 5/8 in [88 cm]
Hose Bib/
Water Drain
43 1/8 in [110 cm]
Recommended location for
Electrical
Inlet
78 in [198.12 cm]
Vent Typ 2 PL
Control Panel
36 in [91 cm]
33 1/4 in [84.46 cm]
32 5/8 in [82.87 cm]
87 in [221 cm]
86 3/8 in [219.39 cm]
37 1/4 in [94.61 cm]
Door Extends
Under Spa Lip
Spa Lip
Pedestal Base
3 1/2 in [9 cm]
Control Panel Front Side of Spa
Equipment
Compartment
2. Engineering specs may differ slightly from brochure.
3. For E-Z lifter installation allow 18” clearances on the backside of the spa.
4. Alternative cabinets may add significant weight. Ask your dealer for exact details
5. This is the approximate location for drilling a hole if you must bring the power line in through the bottom of the spa.
Be careful not to puncture a plumbing line inside the equipment compartment(drill from the inside compartment out).
Page 2 of 2
Architectural Specification
Caution:
Due to manufacturing tolerances there could be some
minor differences between the actual spa and the drawing above.
If site planning is critical to such tolerances, be sure to measure your actual spa.
See Note 5
