Thermal curves – Delta Electronics S36SS User Manual
Page 9
9
Figure 18:
Output current vs. ambient temperature and air
velocity (Vin=48V)
S36SS3R304(Standard) Output Current vs. Ambient Temperature and Air Velocity
@ Vin = 48V
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
40
45
50
55
60
65
70
75
80
85
Ambient Temperature (℃)
Output Current(A)
Natural
Convection
100LFM
200LFM
300LFM
400LFM
500LFM
600LFM
Figure 17:
Output current vs. ambient temperature and air
velocity (Vin=24V)
S36SS3R304(Standard) Output Current vs. Ambient Temperature and Air Velocity
@ Vin = 24V
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
40
45
50
55
60
65
70
75
80
85
Ambient Temperature (℃)
Output Current(A)
Natural
Convection
100LFM
200LFM
300LFM
400LFM

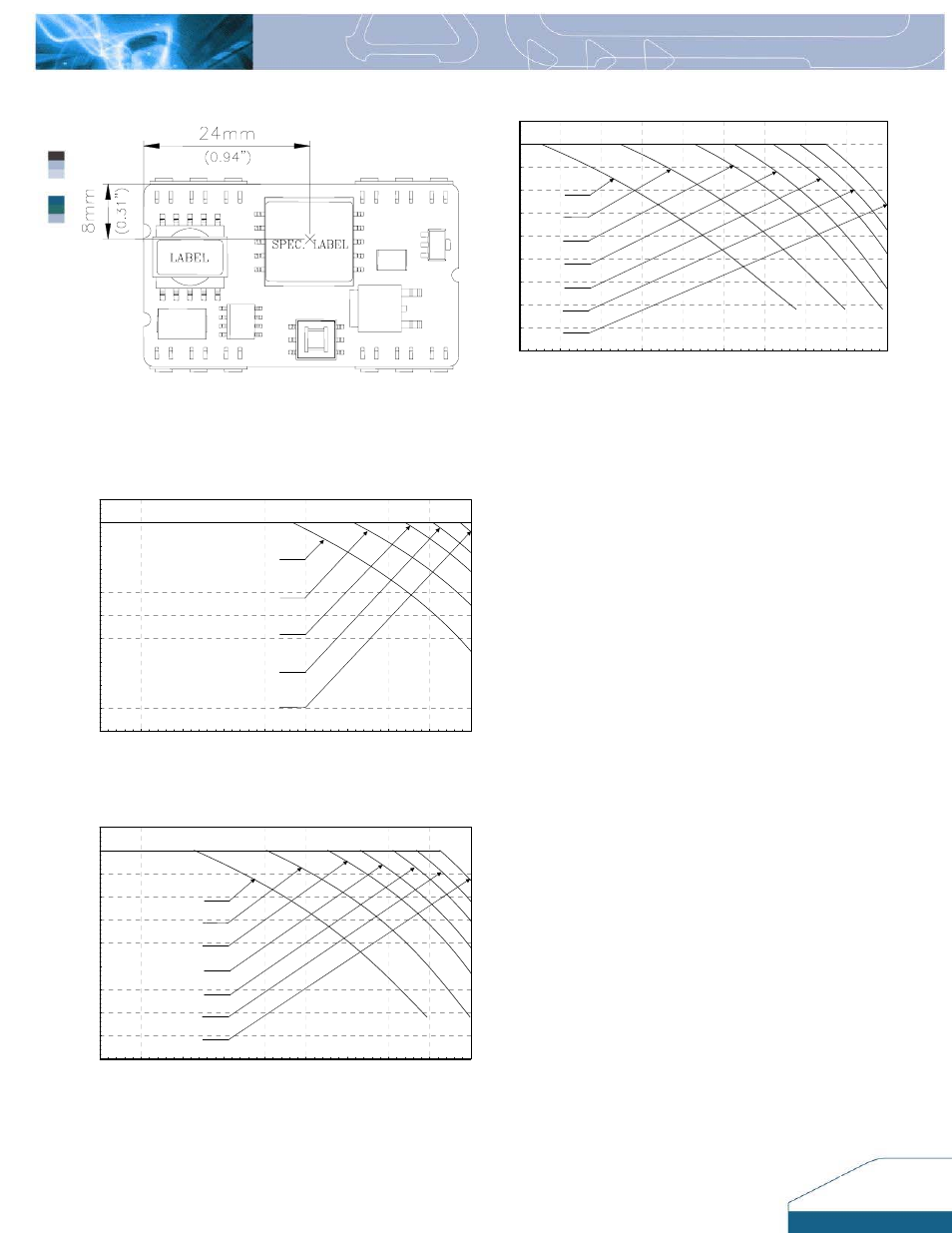

THERMAL CURVES
Figure 16
: Temperature measurement location. Pin locations
are for reference only.
＊
The allowed maximum hot spot temperature is defined at
105℃
S36SS3R304(Standard) Output Current vs. Ambient Temperature and Air Velocity
@ Vin = 60V
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
40
45
50
55
60
65
70
75
80
85
Ambient Temperature (℃)
Output Current(A)
Natural
Convection
100LFM
200LFM
300LFM
400LFM
500LFM
600LFM
Figure 19:
Output current vs. ambient temperature and air
velocity (Vin=60V)
