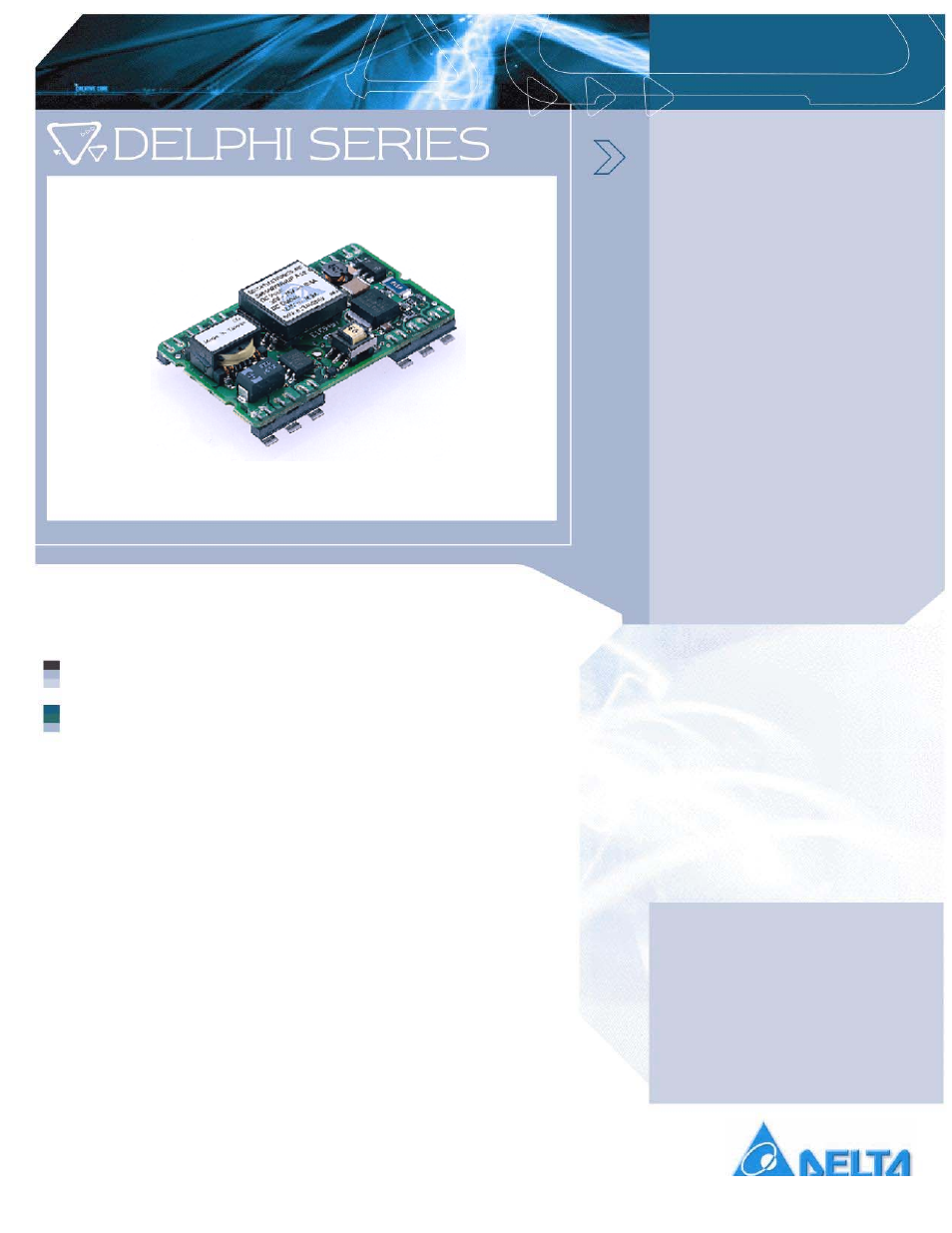

DATASHEET
DS_S36SS3R304_04062006

Delta Electronics, Inc.

1

Delphi Series S36SS, 15W Family

DC/DC Power Modules: 18Vin to 60Vin, 3.3V/4.5A out

The Delphi Series S36SS, surface mountable, wide ranging input, single
output, isolated DC/DC converter, is the latest offering from a world
leader in power system and technology and manufacturing – Delta
Electronics, Inc. This product family provides up to 15 watts of power or
up to 4.5A of output current in an industry standard footprint. With
creative design technology and optimization of component placement, the
Delphi Series Small Power converters possess outstanding electrical and
thermal performance, as well as extremely high reliability under highly
stressful operating conditions. All models are protected from abnormal
input/output voltage and current conditions.

APPLICATIONS

Telecom/DataCom

Wireless Networks

Optical Network Equipment

Server and Data Storage

Industrial/Test Equipment

OPTIONS

Positive on/off logic

FEATURES

High efficiency: 81% @ 3.3V/4.5A

Standard footprint

Surface mountable

Industry standard pin out

Size: 45.5mm x 28.0mm x 12.2mm

(1.79” x 1.10” x 0.48”)

Fixed frequency operation

Input UVLO, OVLO, Output OCP, OVP

No minimum load required

Wide Input voltage range: 18V~60V

ISO 9001, TL 9000, ISO 14001, QS9000,

OHSAS18001 certified manufacturing

facility

UL/cUL 60950 (US & Canada) recognized,

and TUV (EN60950) certified

CE mark meets 73/23/EEC and

93/68/EEC directive
