Using IP surveillance Software (continued)
Application Layout and Functionalities

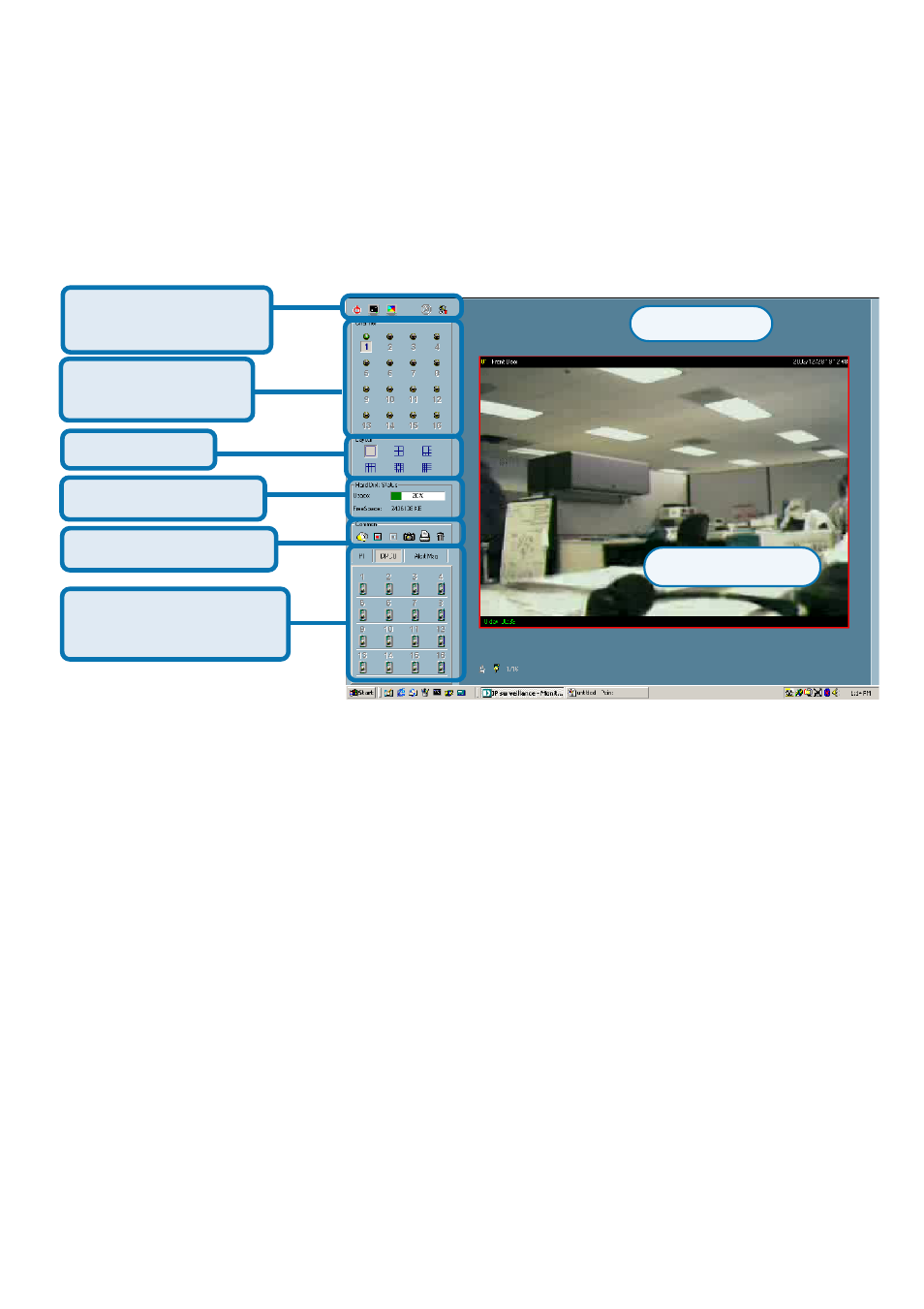

This section demonstrates a global view of the monitor tool, shown below. The
components of the monitor tool will be introduced in detail in the following
sections.
Misc. Functions
Channel Area
Hard Disk Status
Layout Area
Common Controls
DI/DO and Alert
Message
Display Frame
Video Area
There are several parts in the monitor tool:
Misc. functions:
These include application exit, minimization, full screen monitoring,
lock, stop alert, and configuration menu for camera configurations,
global settings, scheduler settings and the user information of
this application software. The tips about these operations are
provided on-line when you move the mouse cursor over them.
Channel area
This area displays the status of each video channel. The
information indicates the status of connection, recording,
selection, and alert-event trigger.
Video area
In this area, you can see the video of the selected channel in the
display frame. The number of the display frames in the video area
depends on the layout chosen by the user. You can also use
convenient controls to alter the video display.
