21

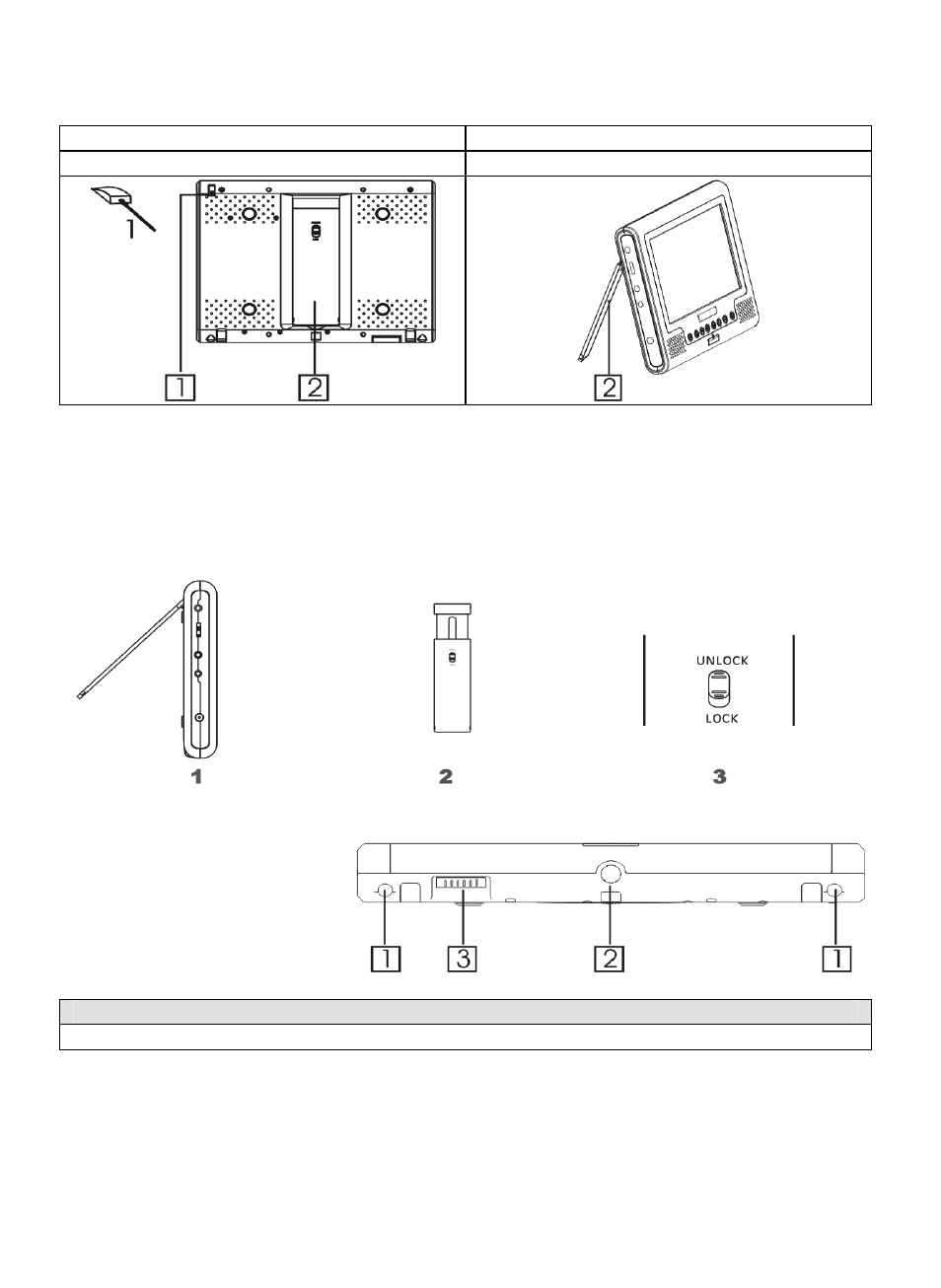

Main unit rear side
1 Open-stick 2 Support
You can use it to open the tray. The unit can stand with this device.
How to stand
1. Pull out the support.
2. Draw out the support to a proper position.
3. Pull down the button to lock it.
Main unit bottom side
1 Hole for battery pack
2 Nut for battery pack
3 Battery connector
Note:
Remember to replace the rubber cover to No. 3 (BATTERY CONNECTOR) after using the battery pack.
