20

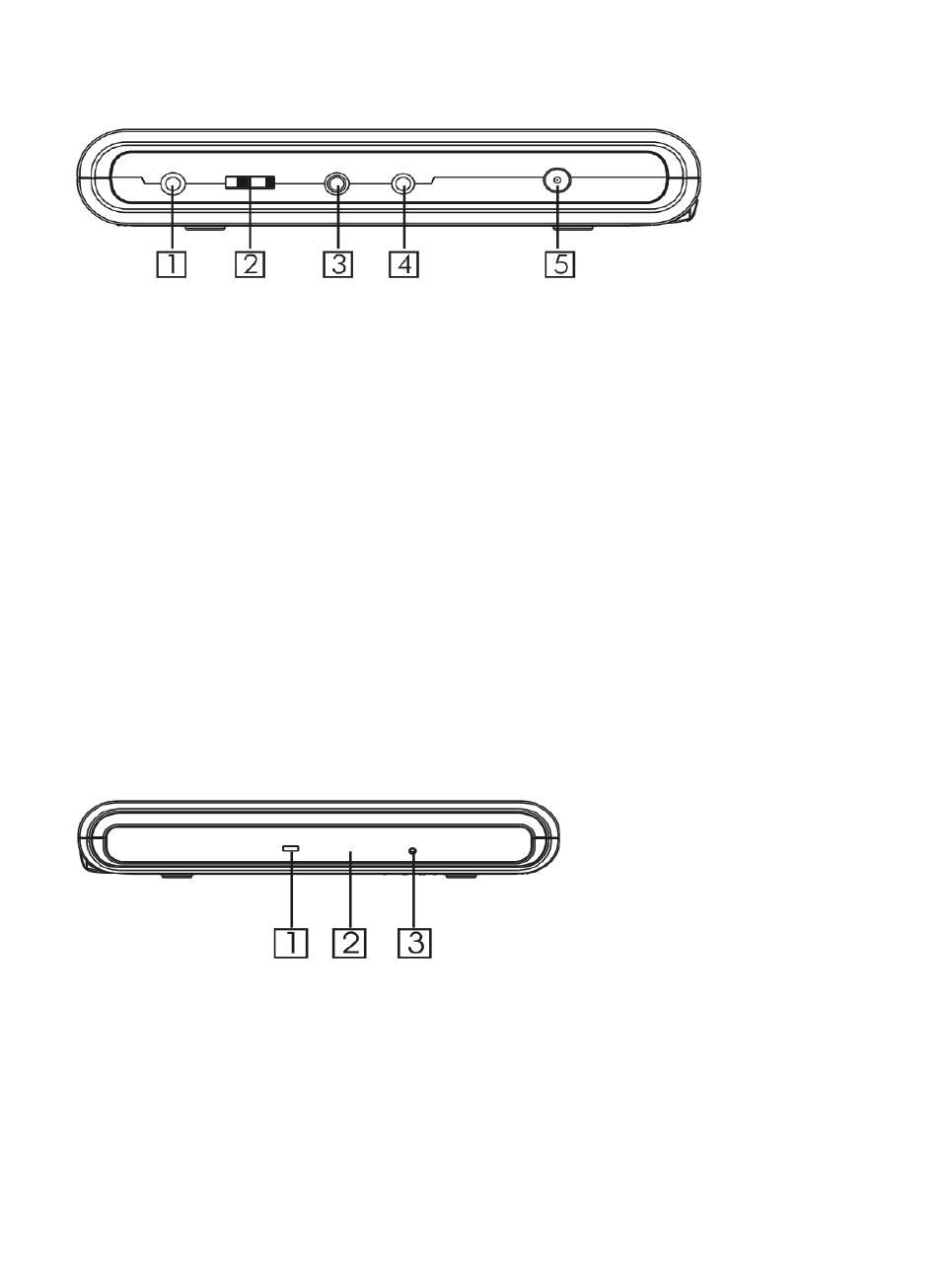

Main unit left side
1 Phone jack
For connecting stereo headphone or an amplifier.
2 Volume control
Use to adjust the volume of the speakers or headphone.
3 Video in/out jack
Input or output video signals to/from device connected by setting AV IN/OUT mode value. The AV
cable supplied is connected here.
4 Audio in / out and optical output jack
Input or output audio signals to/from device connected by setting AV IN/OUT mode value. Output
optical audio signals to device connected. The AV cable or optical digital cable supplied is
connected here.
5 DC in
Connect the AC adapter supplied here.
Main unit right panel
1 Loader status indicator LED
Indicate loader status.
2 Tray
3 Open hole
When you insert the open-stick into this hole, the tray will slide out. Turn off the unit before this
operation!
