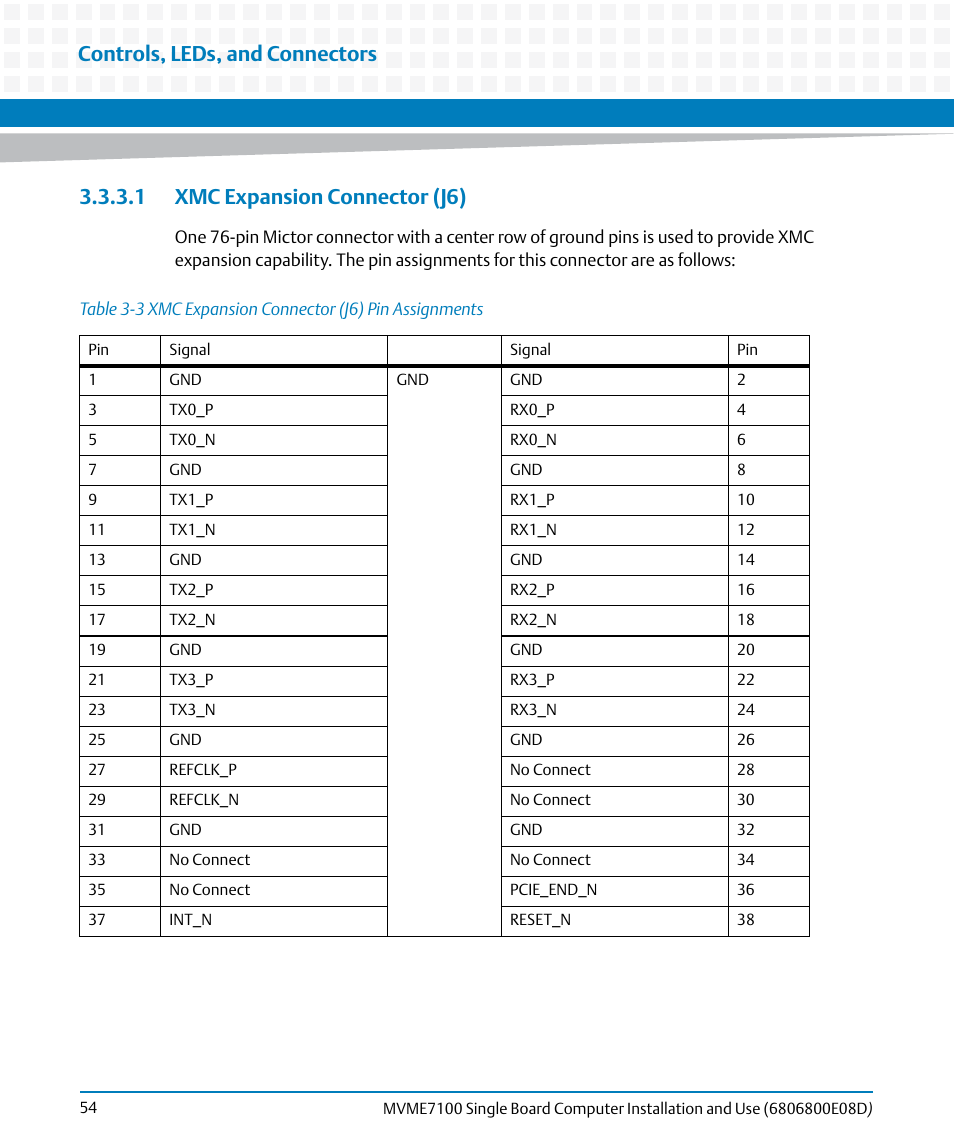

1 xmc expansion connector (j6), Table 3-3, Xmc expansion connector (j6) pin assignments – Artesyn MVME7100 Single Board Computer Installation and Use (June 2014) User Manual
Page 54: Controls, leds, and connectors
