3 connectors, Table 3-2, Baseboard connectors – Artesyn MVME7100 Single Board Computer Installation and Use (June 2014) User Manual

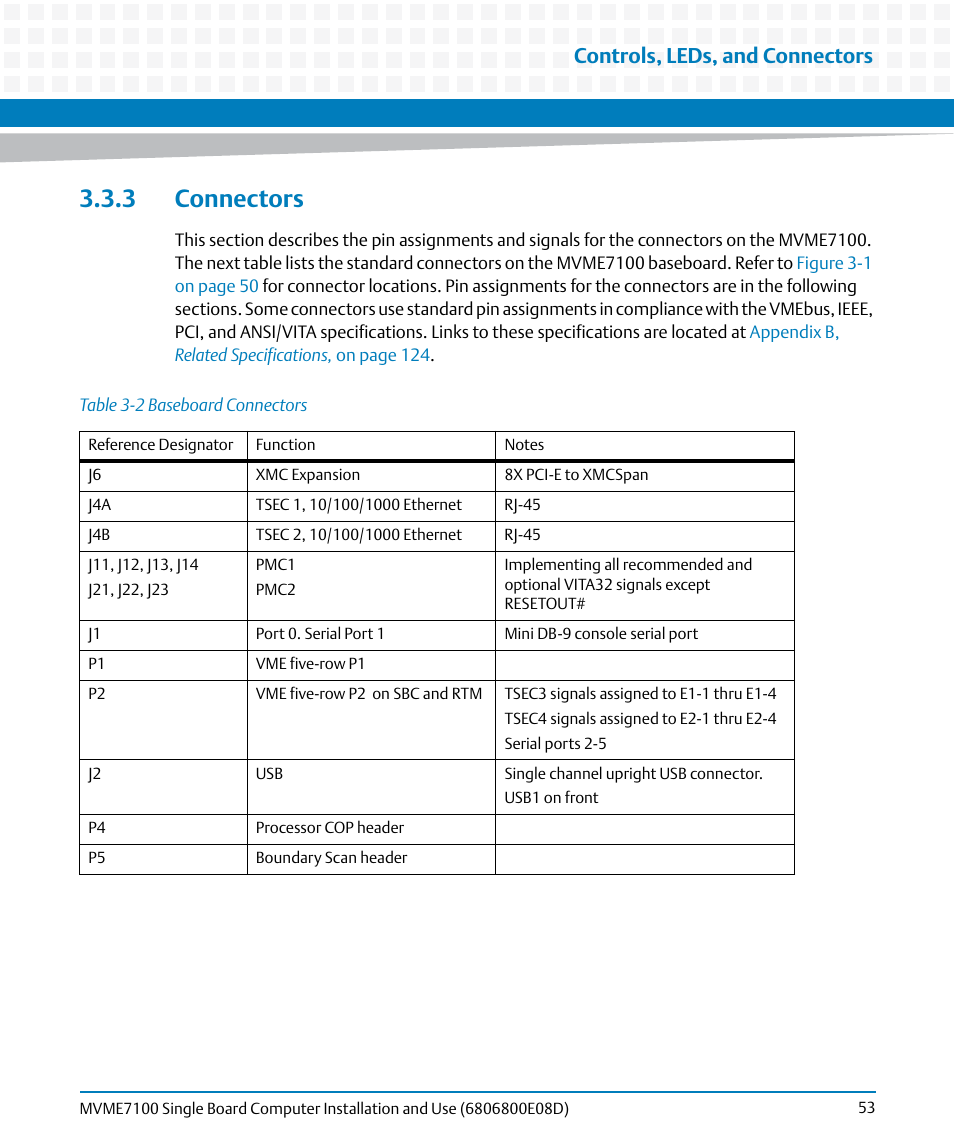

Page 53: Controls, leds, and connectors
