1 smt configuration switch, s1, Table 2-5, Configuration switch settings (s1) – Artesyn MVME7100 Single Board Computer Installation and Use (June 2014) User Manual

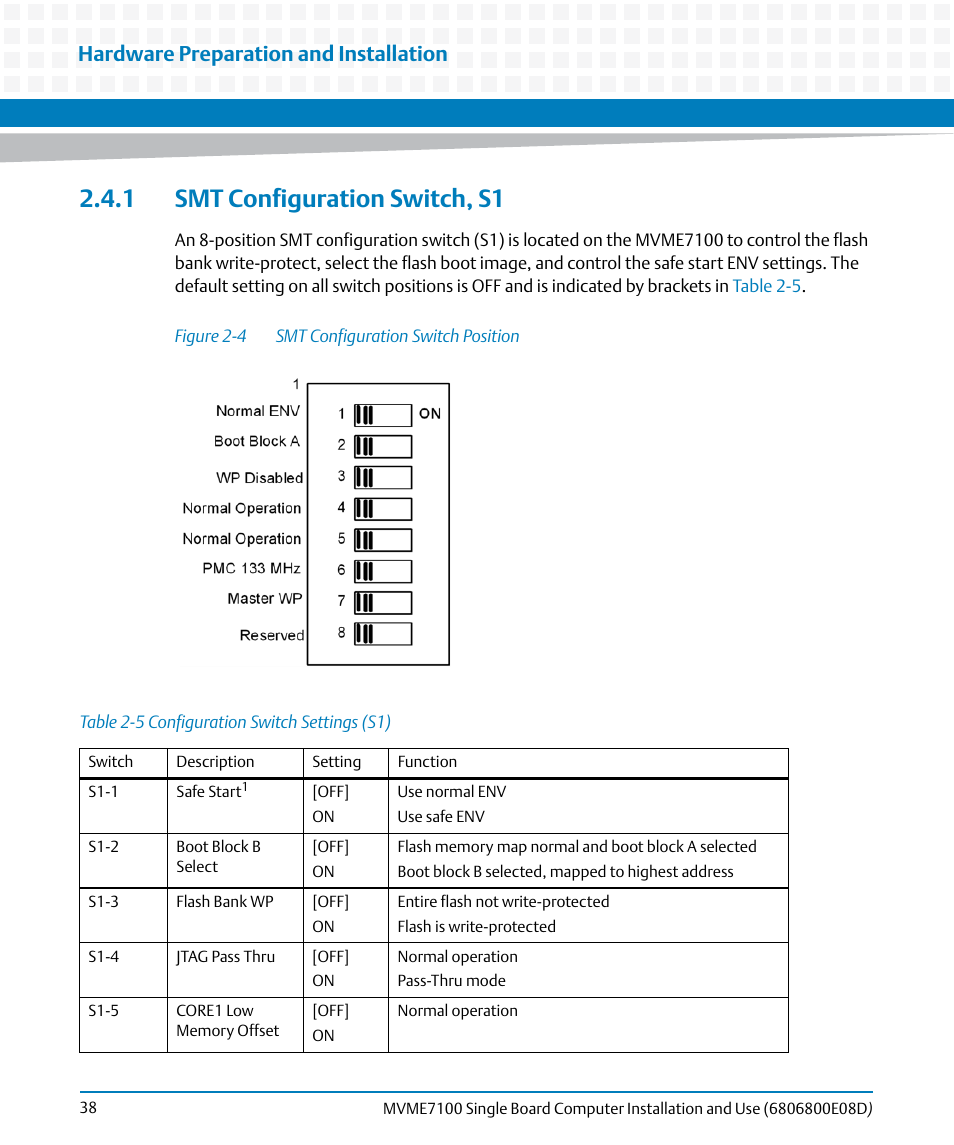

Page 38: Figure 2-4, Smt configuration switch position, Hardware preparation and installation
