SITE SELECTION AND PREPARATION
2
This section provides easy step by step instructions for
selecting a location and preparing the site to install the
Fireplace into:
Existing Fireplace
New Wall Construction
Dimplex Mantel Surround Kit or custom made
mantel surround
NOTE
• The Fireplace Insert comes completely assembled
and wired. Some tools may be required to prepare
the site and assemble/install the trim.
• The dimensions of the Fireplace Insert are 26" wide
(66cm) X 22 1/2" high (57.2cm) X 12" deep (30.5cm).
(FIGURE 1) You may want to leave a clearance
around the insert of 1/4" (O.6cm) to ease installation .
• This Fireplace Insert does NOT require venting.
CAUTION
·Clearance for air circulation beneath the fireplace insert
is provided by three rubber feet (FIGURE 1). DO
NOT INSTALL THE FIREPLACE INSERT DIRECTLY
ON CARPET OR SIMILAR SURFACES WHICH MAY
RESTRICT AIR CIRCULATION. If installing the
fireplace in a carpeted area, place a one-piece, solid,
flat surface under the fireplace insert. Ensure that all
three of the insert's feet rest securely on this surface .
Existing Fireplace:
1. Seal all drafts and vents with non-fiberous insulation
materials to prevent chimney debris from falling onto
the Fireplace Insert. Do not install into an existing
fireplace that is prone to dampness.
2. Cap the top of the chimney flue to prevent rain from
entering
3. Plan your electric power supply: (Refer to Note 1)
4. The power cord can run along the front of the hearth
to an outlet near the fireplace. (FIGURE 2)
26”
22 1/2”
12"

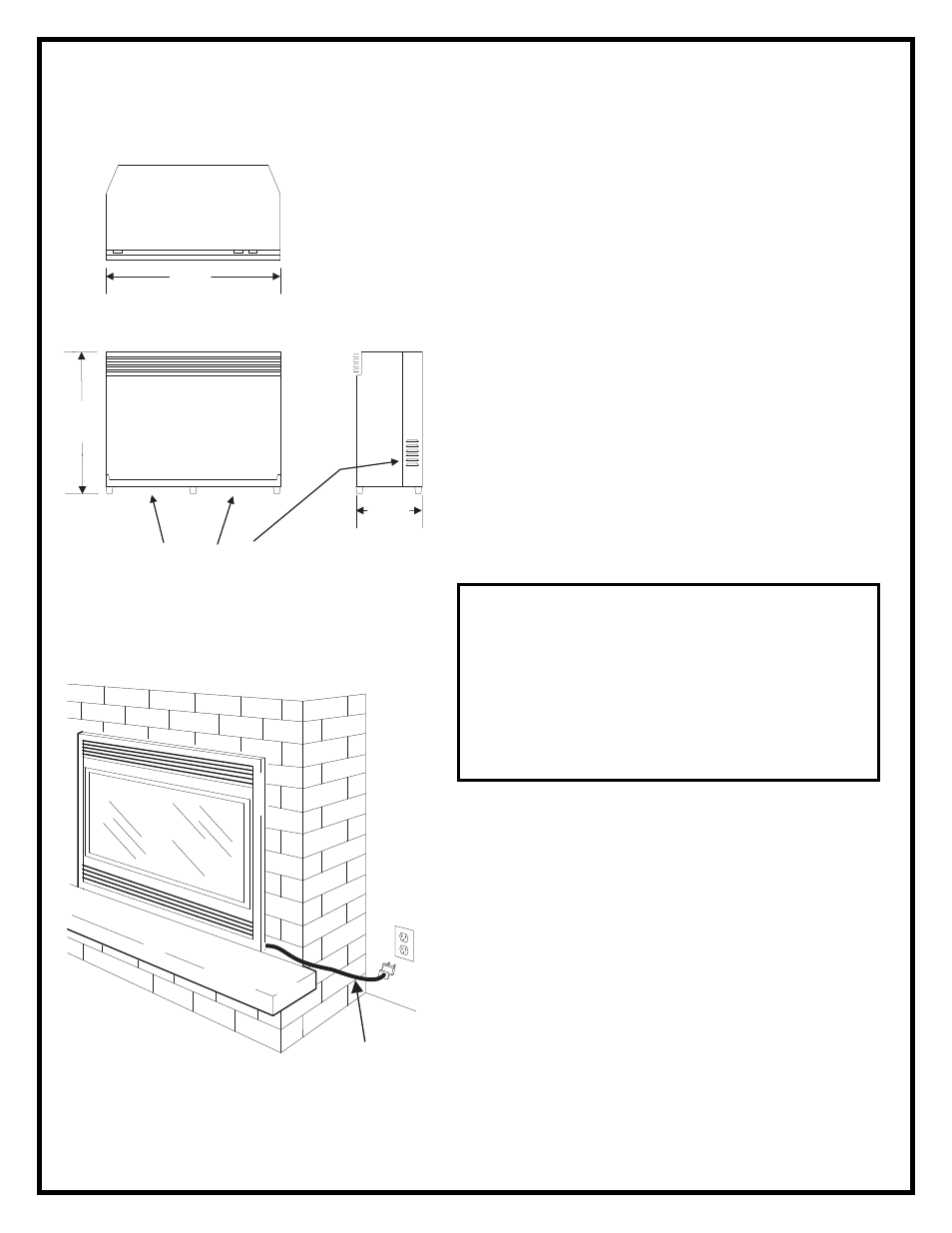

AIR CIRCULATION AREAS
FIGURE 1
CORD
FIGURE 2
