· To open the light bulb area :
1. Remove trim by pulling straight forward.
2. Hold glass in place while removing retaining clip as
shown in FIGURE 10 (a,b,c).
3. Lift glass out and store in a safe place FIGURE 11.
CAUTION
·
Even though the glass is safety glass it may break if
bumped, struck or dropped. Care must be taken when
handling the glass.
Helpful Hints
It is a good idea to replace all light bulbs at one time if
they are close to the end of their rated life. Group
replacement will reduce the number of times you need to
open the unit to replace fight bulbs.
·
To replace the bottom light bulbs which
generate the flames and embers:
Bulb Requirements: Quantity of 4 clear chandelier or
candelabra bulbs with an E-12 (small) socket base, 60
watt rating, Example GE 60BC or Phillips 60CTC.
CAUTION
·
Do not exceed 60 watts per bulb
1. Lift up front edge of log until clears the front tabs. Pull
out until the rear tab clears the back ledge, then lift
out. (FIGURE 12)
2. Examine the bulbs to determine which bulbs require
replacement.
3. Hold the socket while unscrewing the bulb.
(FIGURE 13)
4. Hold the socket while screwing in the new bulb.
5. Replace the log by pushing it down and in until it
rests against the mirror. (FIGURE 12)

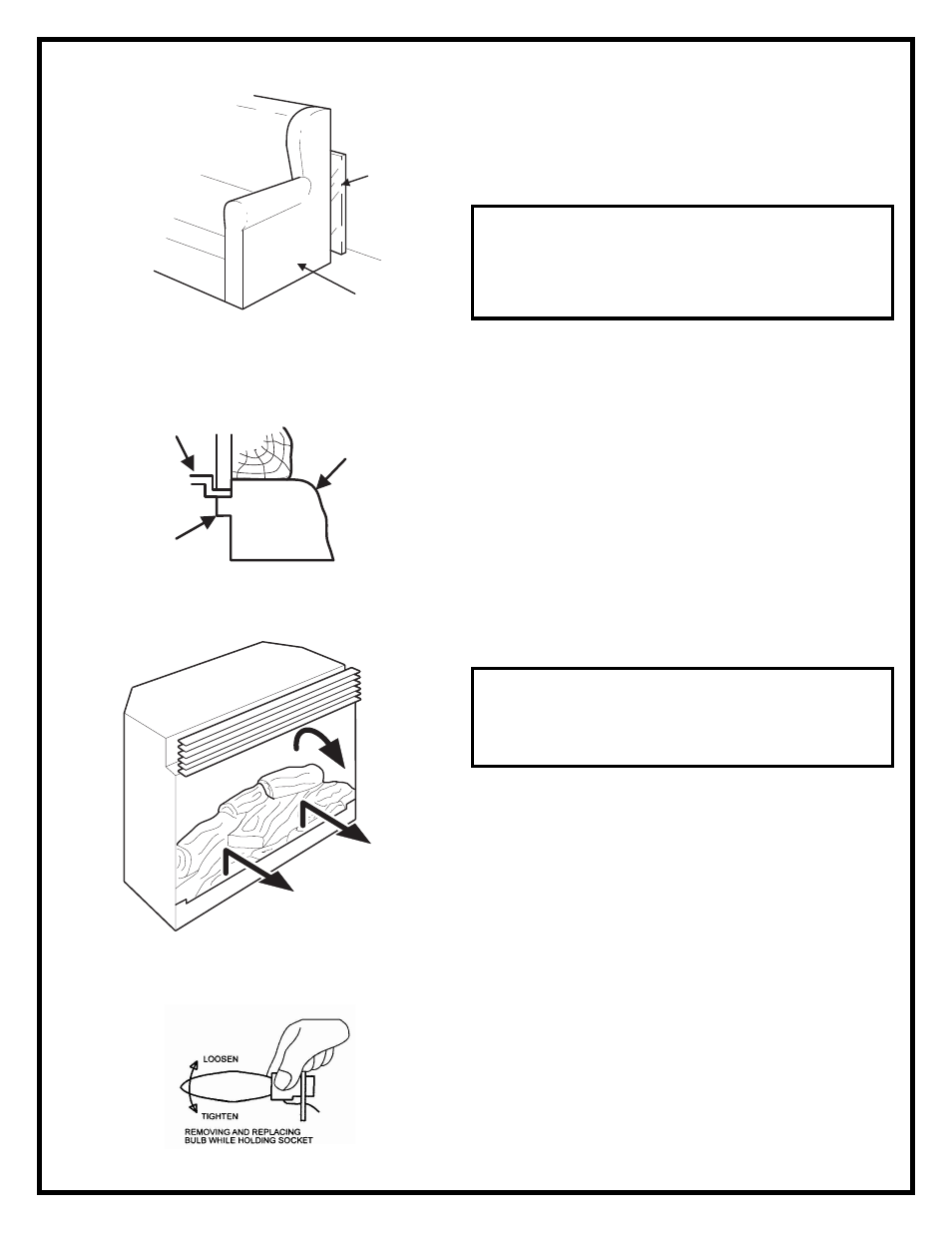

GLASS
COUCH
An example of a safe storage place
FIGURE 11
FIGURE 12
LIFTING OUT LOG
EMBERBED
SIDE SECTION
LOG
EMBERBED
BACK LEDGE
REAR TAB
FIGURE 13
