Specification, Venture Doc-1207 Rev - B Rev Date: 10/31/05
Venture Specification Dimension One Spas
Venture
Note: Subject to change without notice.
1. Stereo optional.
Page 2 of 4
2. Engineering specs may differ slightly from brochure.
3. For E-Z lifter installation allow 18” clearances on the backside of the spa.
4. Alternative cabinets may add significant weight. Ask your dealer for exact details.
Caution:
Due to manufacturing tolerances there could be some
minor differences between the actual spa and the drawing above.
If site planning is critical to such tolerances, be sure to measure your actual spa.

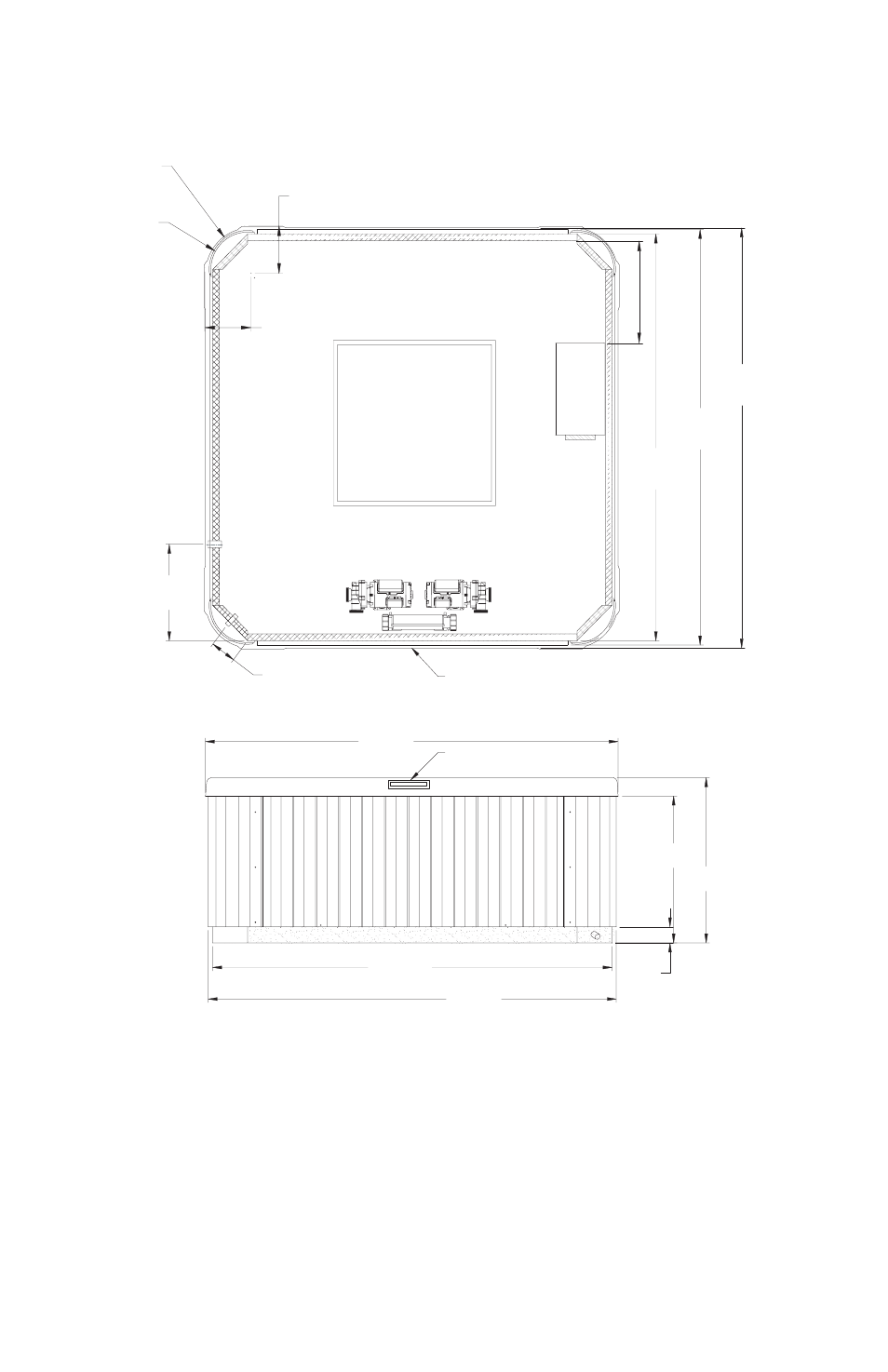

Architectural Specification
Top View of Spa
THE EDGES OF SPA BASE.
SUPPORTED CONSISTENT WITH
ON BOTTOM OF SPA, TO BE
THIS 3 FOOT SQUARE AREA,
91 1/2in
[232.41cm]
Shell Caution
21in
[53.34cm]
Electrical inlet
90 1/2in
[229.87cm]
Skirt
88 5/8in
[224.98cm]
Pedestal
32in
[81.27cm]
88 5/8in
[224.98cm]
Pedestal Base
90 1/2in
[229.86cm]
Skirt
91 1/2in
[232.43cm]
Shell
Control Panel
Front of Spa
Control Panel
Front of Spa
Spa Lip
FRONT VIEW
TOP VIEW
3 1/2in
[8.89cm]
36in
[91.43cm]
5 5/8in
[14.43cm]
Hose Bib/
Water Drain
R10in
[R25.40cm]
Spa shell
R8 1/2in
[R21.59cm]
Skirt Corner
9 1/4in
[23.42cm]
9 1/4in
[23.42cm]
SUBWOOFER
20in
[50.95cm]
