22
Other Functions
1. Use Quad key to change into Multi Screen. Then the last displayed multi screen appears.
In Normal Screen(when an individual screen is not selected in multi mode), key function and OSD
function apply for all display simultaneously.
** Quad: 4Picture -P : Picture -W: Waveform or Vector
Five different multi screen formations are available and pressing the Quad key continuously changes
the screen formation as shown in the above picture.
2. To control the individual display in multi screen, use the Screen Sel key to select the desired display
then control the desired function. Selected display will be highlighted. The basic Key and the OSD
controls work the same way as in normal condition except for the waveform/vector screen. User can
only control this screen to select waveform/vector.
3. Waveform control is available only in 1P:1W and 2P:2W. In 2P:2W, picture
displays on top position and the corresponding waveform/vector displays on
the below position. To control the Waveform, select the desired display and
use the Waveform <-> Vector function.
In 1P:2W, a picture displays with both waveform and vector. In this mode,
OSD function Waveform <->Vector can be used to switch their position.

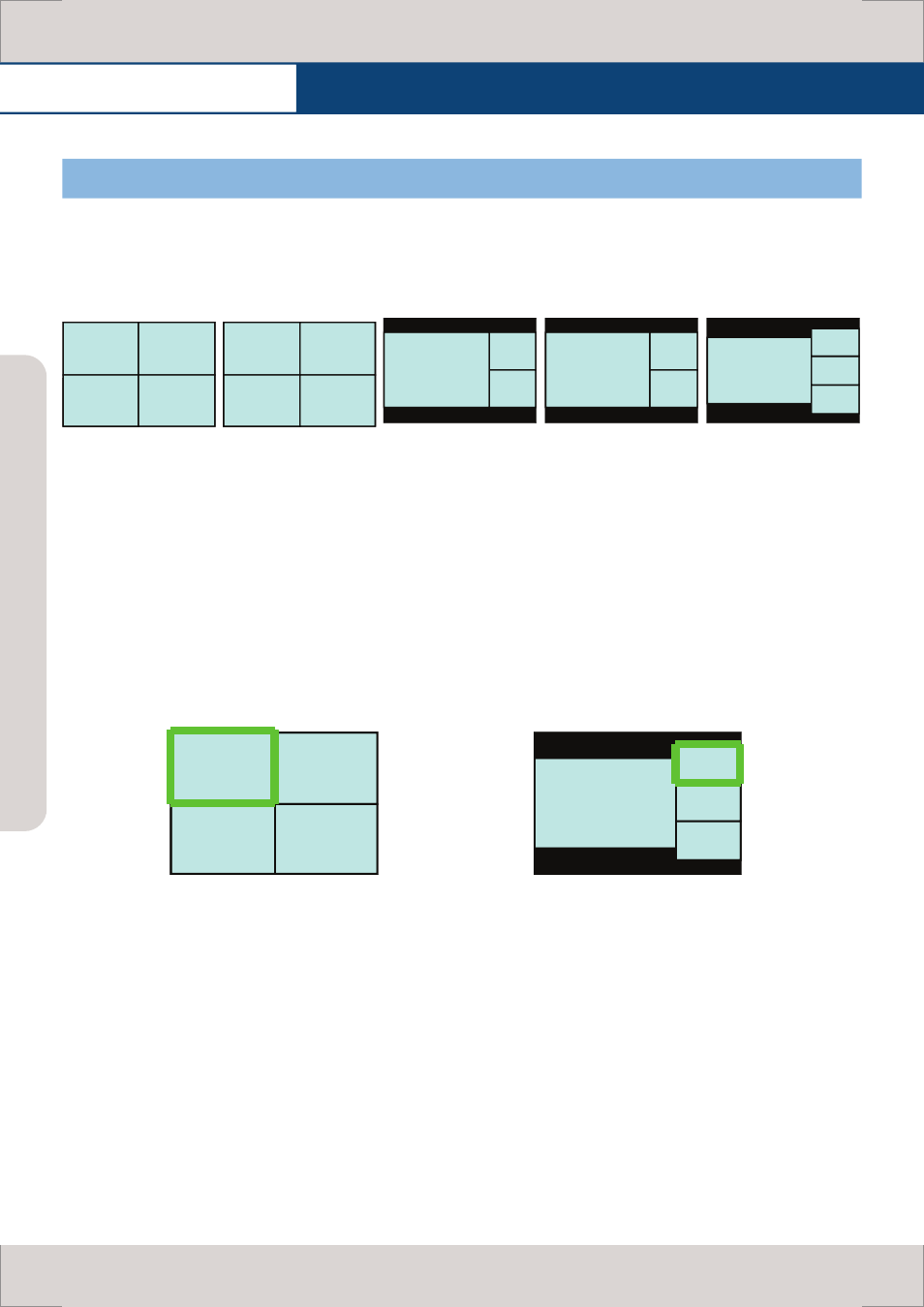

[4] MULTI MODE USAGE
(Quad) (2P:2W) (1P:2W) (1P:2P) (1P:3P)
(Screen 1 selected) (Screen 2selected)
