MARKER

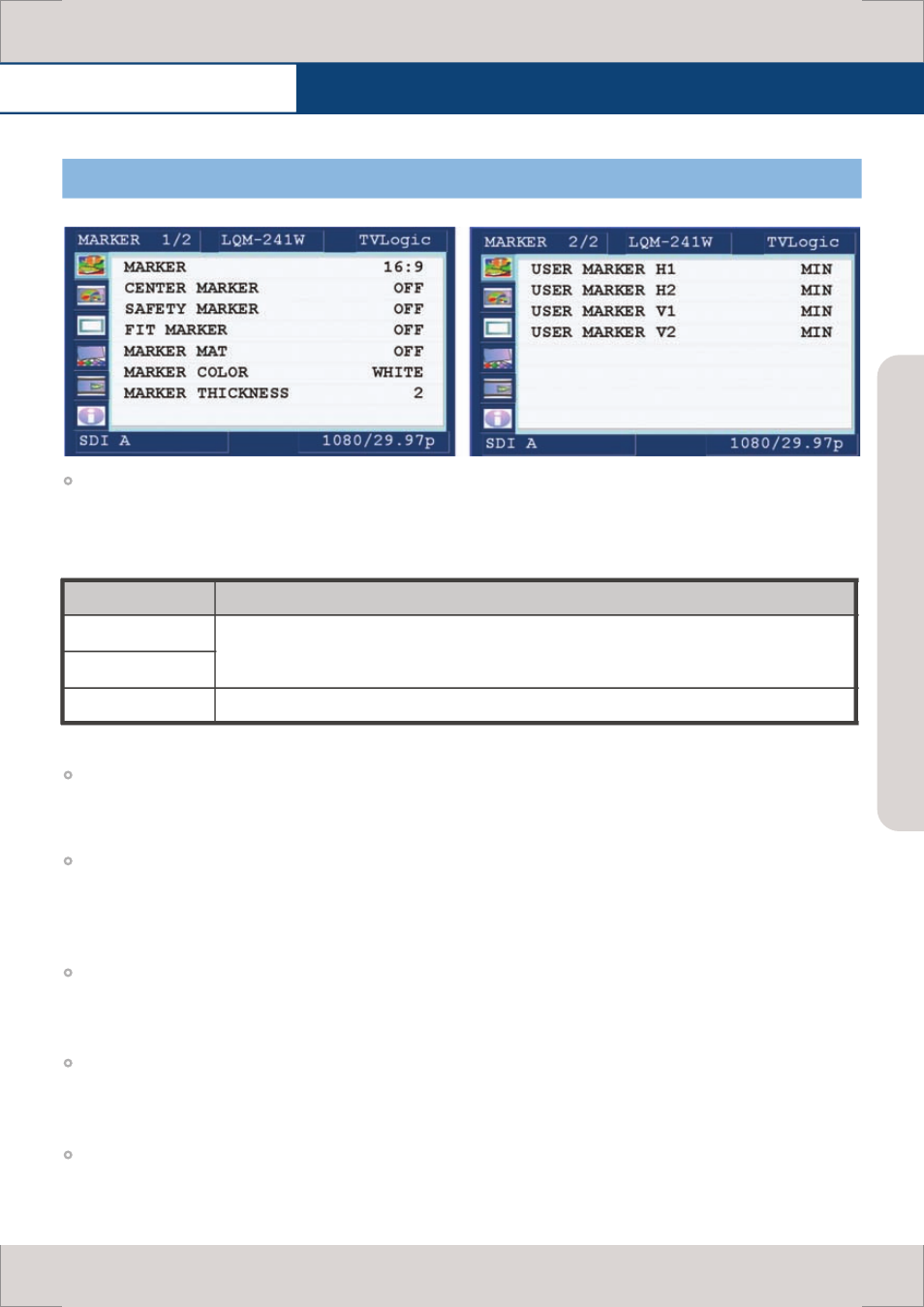

This selects the marker type when the MARKER is displayed on the screen.
MARKER may only be activated by pressing the MARKER button on the front of the monitor.
Compatible MARKER types are as follows:
CENTER MARKER
- This item displays the CENTER MARKER on the screen. This function operates only after activating
the MARKER function by pressing the MARKER button on the front of the monitor.
SAFETY AREA
- This item controls the size of the SAFETY AREA among 80%, 88%, 90%, 93%, 100%, EBU ACTION
16:9, EBU GRAPHIC 16:9, EBU ACTION 14:9, EBU GRAPHIC 14:9, EBU ACTION 4:3 and EBU GRAPHIC
4:3.
FIT MARKER
- This item sets the fit marker. When using the fit marker, safety area is displayed within the marker
area.
MARKER MAT
- This item darkens the area of the outside of MARKER setting area. The degrees of darkness are
between OFF(0) and (7). The higher the number, the darker MARKER border becomes.
MARKER COLOR
- This item controls the color of MARKER is generated. Settable colors are white, gray, black, red,
green and blue.
[3] MARKER PART
MODE MARKER CLASS
HD
16:9, 4:3, 4:3 ON AIR, 15:9, 14:9, 13:9, 1.85:1, 2.35:1,
1.85:1 & 4:3, USER
SD 16:9
SD 4:3 16:9
