CLOSED CAPTION
- This item controls closed caption ON/OFF. (708, 608(LINE21), 608(ANC))
TIME CODE ENABLE
- This item displays the time code.(VITC, LTC)
* When multi screen mode, if the same input is displayed onto 2 or more screens, TIME CODE will be
only seen on the first screen displaying the same input.
(e.x., If SDI-A input is displayed on SCREEN1 and SCREEN2 in QUAD mode, TIME CODE will be only
displayed on SCREEN 1)
AUDIO LEVEL METER
- This item controls audio level meter. If user want to see embedded audio signal, use this mode.
- Audio level meter can select GROUP1 ~ GROUP4 or OFF.
* When multi screen mode, if the same input is displayed onto 2 or more screens, TIME CODE will be
only seen on the first screen displaying the same input.
(e.x., If SDI-A input is displayed on SCREEN1 and SCREEN2 in QUAD mode, TIME CODE will be only
displayed on SCREEN 1)

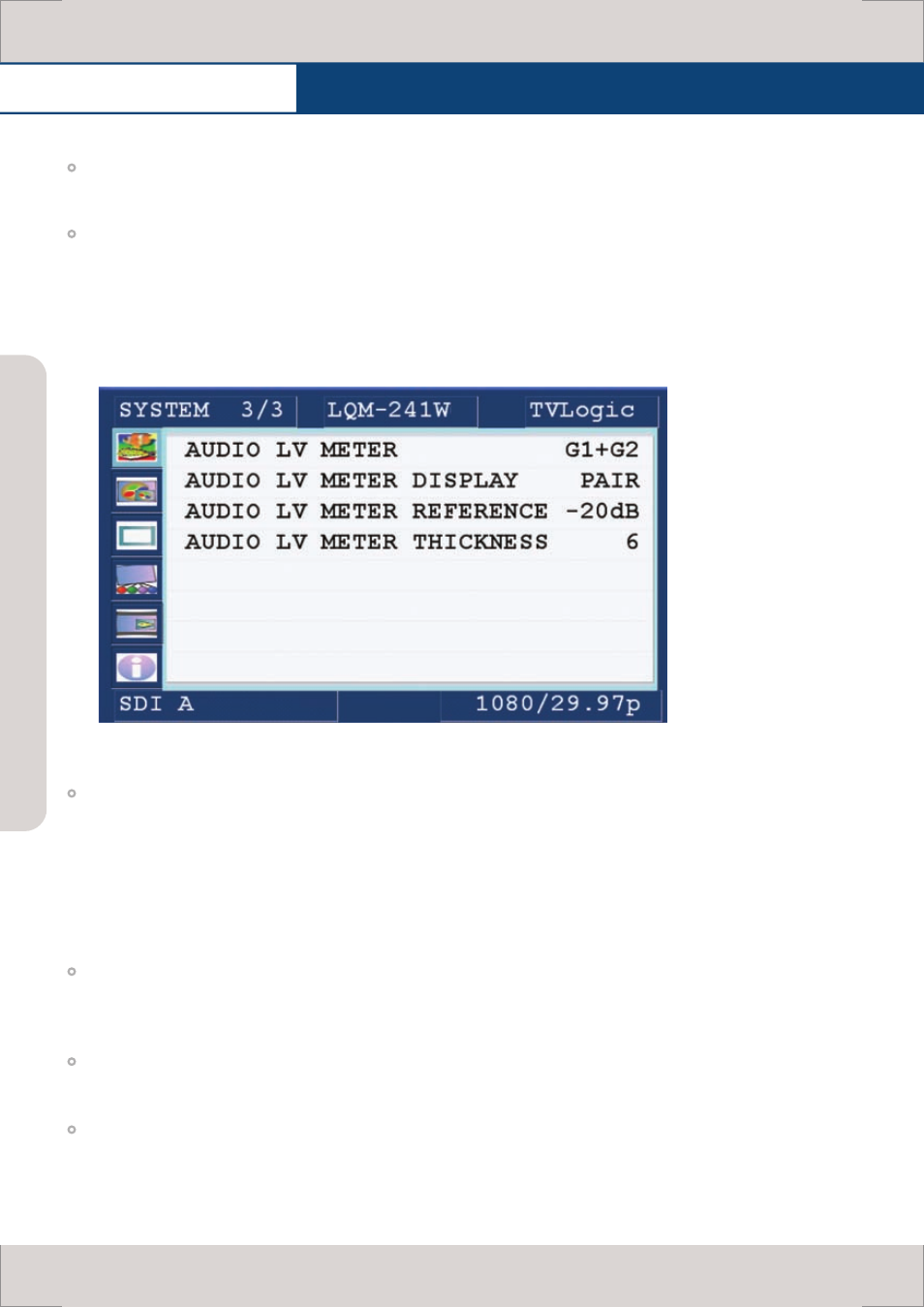

AUDIO LEVEL METER
- This item sets embedded audio group selects off, G1+G2, G2+G3, G3+G4, G1+G3, G1+G4,G2+G4 to
activate audio level meter.
AUDIO LEVEL METER DISPLAY
- When audio level meter is activated, This item controls display method.(Pair, Group)
AUDIO LEVEL METER REFERENCE
- This item sets audio level default.(-18dB, -20dB)
