Copyright © 2010 NEXCOM International Co., Ltd. All Rights Reserved.

24

VTC 2100 User Manual

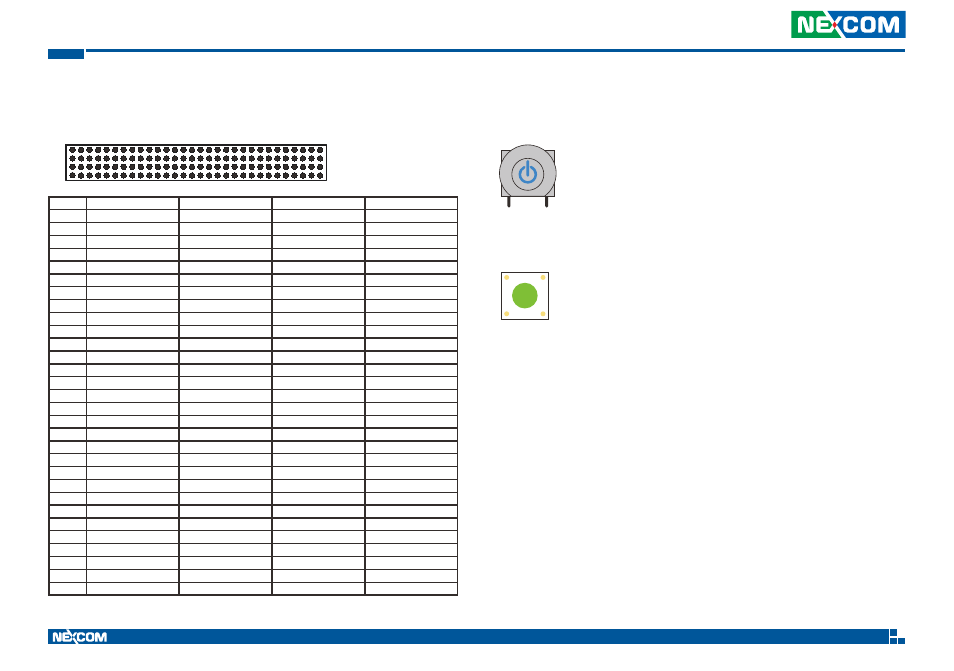

PCI-104 Connector
Connector location: CN21

A30
B30

A1

B1

C1

D1

C30
D30

A1

B1

C1

D1

A30

B30

C30

D30

Power Button
Connector location: SW1

Reset Button
Connector location: SW3

Pin

A

B

C

D

1

GND

Reserved

+5

AD00

2

VI/O

AD02

AD01

+5

3

AD05

GND

AD04

AD03

4

C/BE0#

AD07

GND

AD06

5

GND

AD09

AD08

GND

6

AD11

VI/O

GND

AD12

7

AD14

AD13

GND

AD12

8

+3.3V

C/BE1#

AD15

+3.3V

9

SERR#

HND

Reserved

PAR

10

GND

PERR#

+3.3V

Reserved

11

STOP#

+3.3V

LOCK#

GND

12

+3.3V

TRDY#

GND

DEV SEL#

13

FRAME#

GND

IRDY#

+3.3V

14

GND

AD16

+3.3V

C/BE2#

15

Ad18

+3.3V

AD17

GND

16

AD21

AD20

GND

AD19

17

+3.3V

AD23

AD22

+3.3V

18

IDSEL0

GND

IDSEL1

IDSEL2

19

AD24

C/BE3#

VI/O

IDSEL3

20

GND

AD26

AD25

GND

21

AD29

+5V

AD28

AD27

22

+5V

AD30

GND

AD31

23

REQ0#

GND

REQ1#

VI/O

24

GND

REQ2#

+5V

GNT0#

25

GNT1#

VI/O

GNT2#

GND

26

+5V

CLK0

GND

CLK1

27

CLK2

+5V

CLK3

GND

28

GND

INTD#

+5V

RST#

29

+12V

INTA#

INTB#

INTC#

30

-12V

REQ3#

GNT3#

GND
