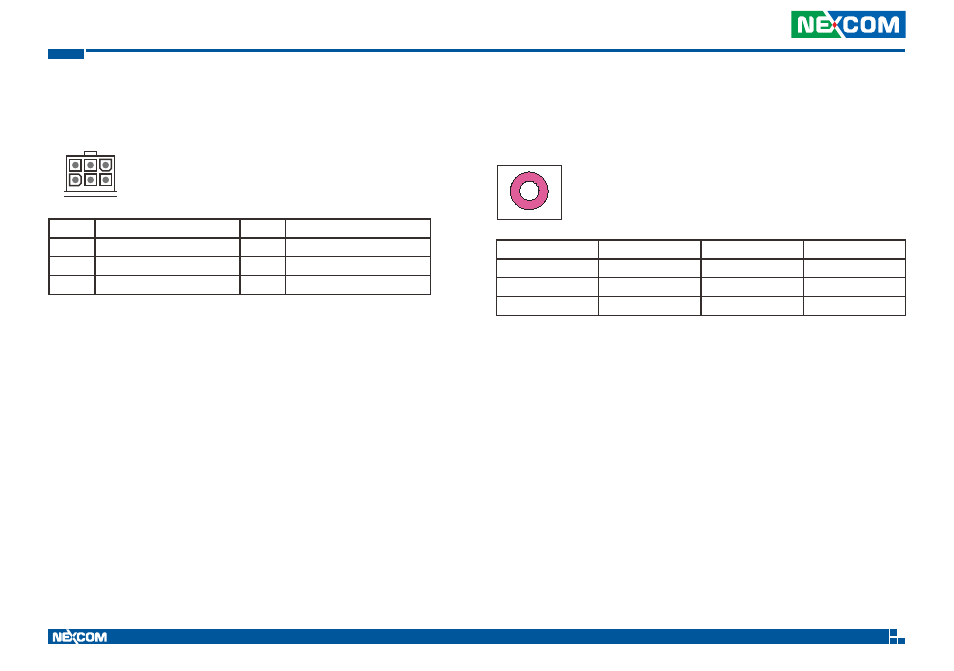

External 12V & 5V Power and
Connector location: CN1
6
3
4
1
Pin
Definition
Pin
Definition
1
5V
2
12V
3
SMBCLK
4
GND
5
GND
6
SMBDATA
Mic-in Jacks
Connector size: 6-pin jack, 25.9x12.6x17.0mm
Connector location: CN14 and CN20
Pin
Definition
Pin
Definition
1
NC
2
MIC_JD
3
NC
4
MIC_OUT
5
GND
6
GND
