VTC 2100 User Manual

Chapter 1: Product Introduction

Startup and Shutdown Mode (Refer to SW2 setting)
The start up and shut down setting modes are as follows.
1. Mode A (default setting). When the input power voltage is 12V, use

SW2 to select this voltage. Use the BIOS to select the start up and shut
down voltages.

2. Mode B. When the input power voltage is 24V, use SW2 to select this

voltage. Use the BIOS to select the start up and shut down voltages.

3. Mode C. When the input power voltage is 48V, use SW2 to select this

voltage. Use the BIOS to select the start up and shut down voltages.

Vehicle PC Mode
Mode A (default setting). When the ignition is from “low” to “high”, VTC
2100 will turn on automatically. When the ignition is “high”, press the
power button to turn off VTC 2100.
When the ignition is from “high” to “low”, VTC 2100 will turn off auto-
matically.

Getting to Know VTC 2100

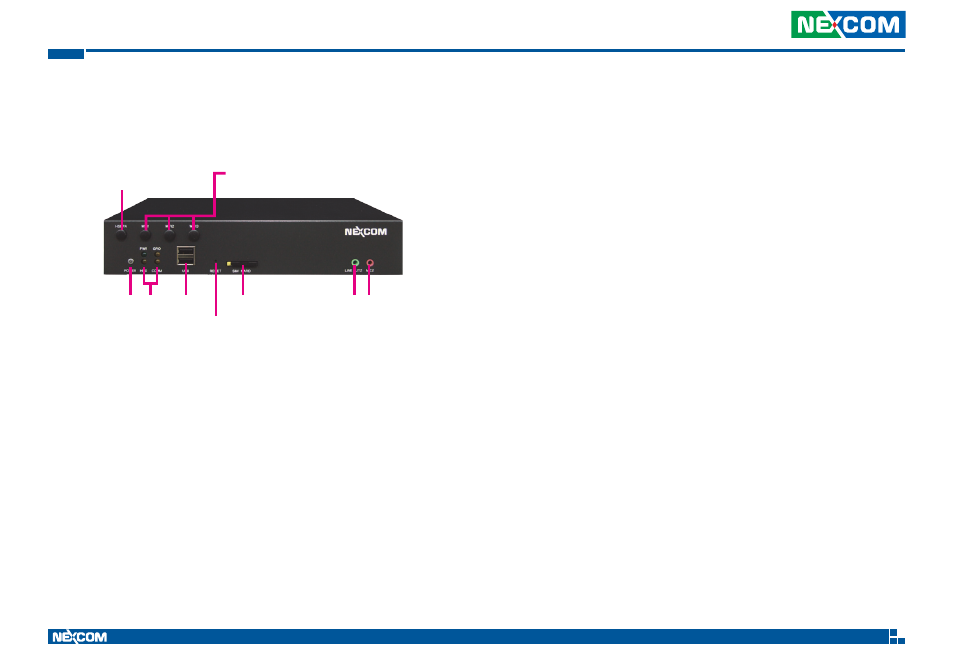

Front Panel

WiFi/Bluetooth module

antenna mounting holes

GPRS/UMTS/HSDPA module

antenna mounting holes

Power button LEDs USB

Reset button

SIM card socket

Line-out Mic-in
