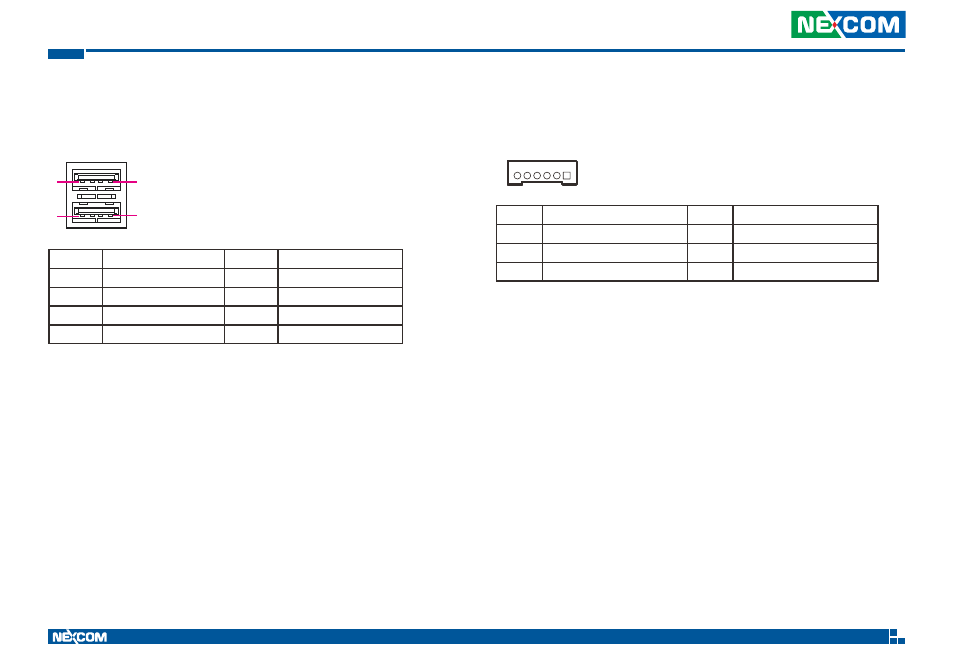

USB Ports
Connector size: Dual USB port, Type A
Connector location: USB1 and USB2
Pin
Definition
Pin
Definition
1
VCC
2
DATA1-
3
DATA1+
4
GND
5
VCC
6
DATA-
7
DATA+
8
GND
1
5
4
8
LVDS Power Connector
Connector size: JST 6-pin, 2.54 mm pitch
Connector location: J2
Pin
Definition
Pin
Definition
1
Panel_backlight
2
Panel_VDD
3
GND
4
GND
5
LVDS_PANEL
6
LVDS_BIASON
6
1
