Chapter 2: Jumpers and Connectors

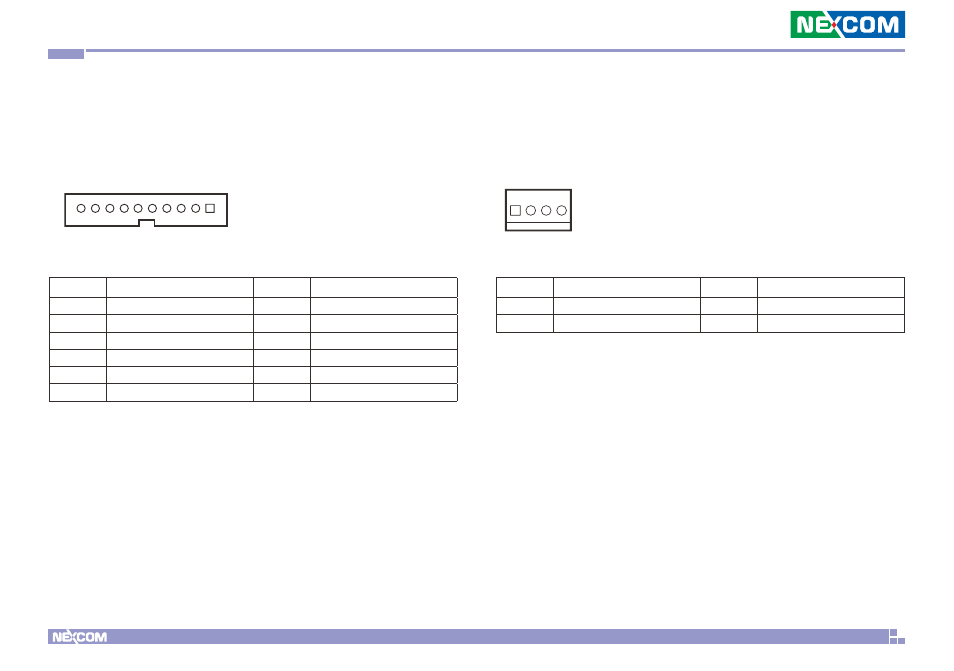

Debug Port
Connector type: 1x10 10-pin header JST, 1.0mm pitch
Connector location: J3
Pin Definition Pin Definition
1 GND 2 P80_RST#
3 CLK_PCI_P80 4 LPC_FRAME#
5 LPC_AD3 6 LPC_AD2
7 LPC_AD1 8 LPC_AD0
9 3VSB 10 3VSB
MH1 GND MH2 GND
1 10
FAN Connector
Connector type: 1x4 4-pin header, 2.54mm pitch
Connector location: FAN1
Pin Definition Pin Definition
1 GND 2 +12V
3 FAN_TACT 4 FAN_CTRL
1 4
