Lan2 port – NEXCOM NDiS M532 User Manual
Page 27
Copyright © 2012 NEXCOM International Co., Ltd. All Rights Reserved.
13
NDiS M532 User Manual
Chapter 2: Jumpers and Connectors

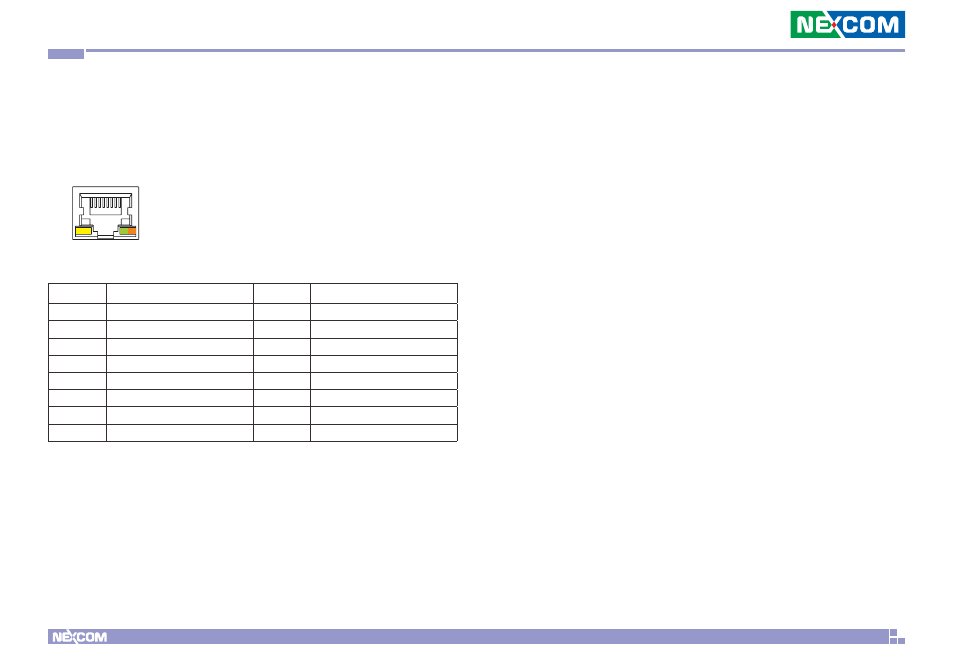

LAN2 Port
Connector type: RJ45 port with LEDs
Connector location: LAN2
Pin
Definition
Pin
Definition
1
TCT
2
LAN2_MDI3N
3
LAN2_MDI3P
4
LAN2_MDI2N
5
LAN2_MDI2P
6
LAN2_MDI1N
7
LAN2_MDI1P
8
LAN2_MDI0N
9
LAN2_MDI0P
10
GND
11
LAN2_LED1P
12
LAN2_LED_ACT#
13
LAN2_LED2P
14
LAN2_LED3P
MH1
GND
MH2
GND
