Installing a tv tuner module – NEXCOM NDiS 126 User Manual
Page 51
Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved.
38
NDiS 126 User Manual
Chapter 3: System Setup
Installing a TV Tuner Module

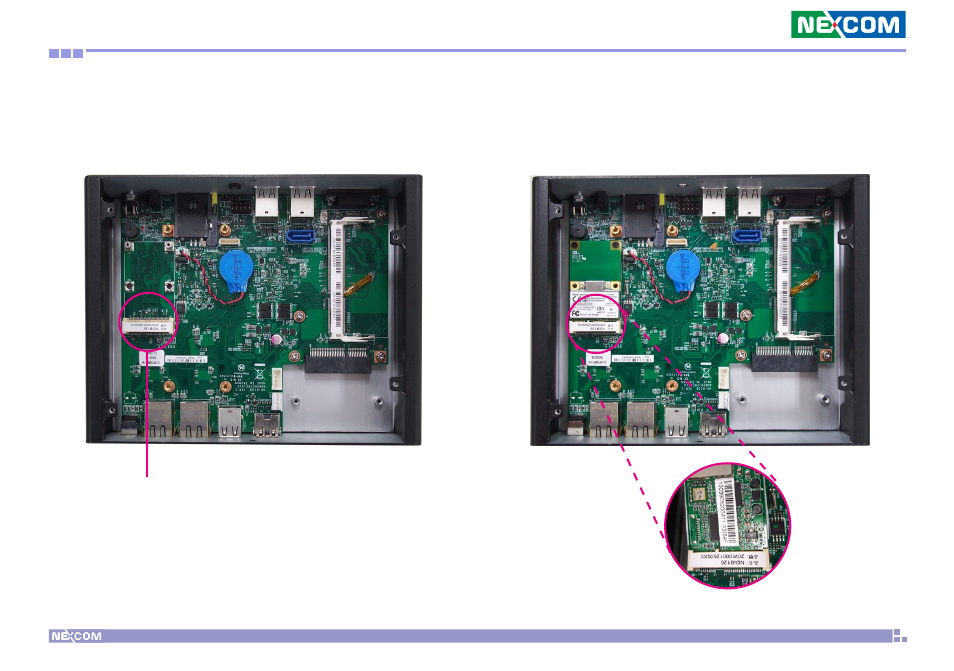

1. Locate for the Mini PCI Express slot on the board.
2. Insert the TV Tuner module into the Mini PCI Express slot at a 45
degrees angle until the gold-plated connector on the edge of the
module completely disappears inside the slot.
Mini PCI Express Slot
