NDiS 126 User Manual

Chapter 2: Jumpers and Connectors

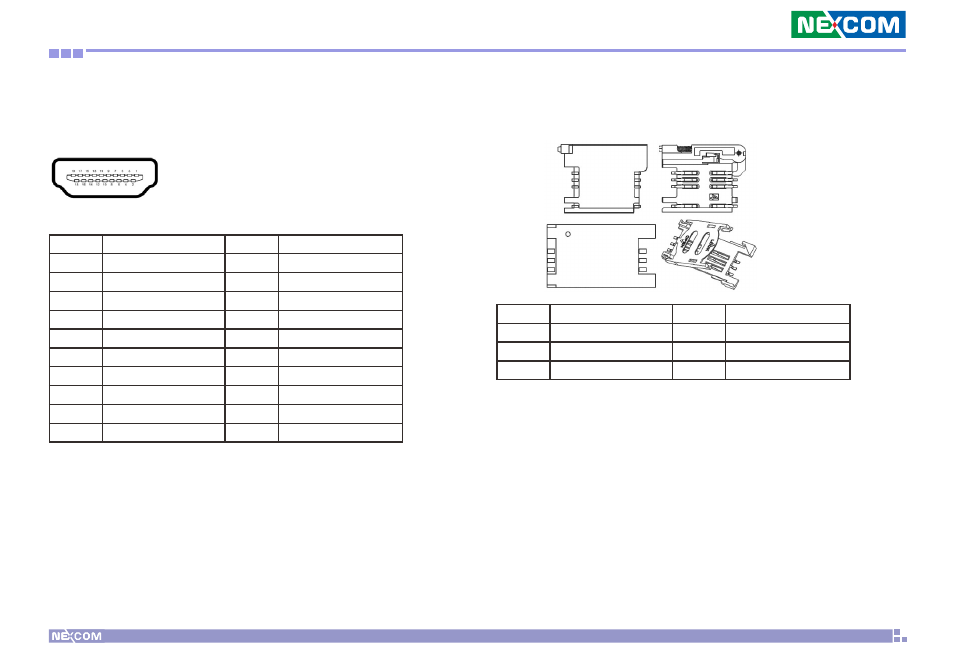

HDMI Connector

J1

SIM Card Slot

CN7 / CN6

Pin

Definition

Pin

Definition

1

HDMI D2+

2

GND

3

HDMI D2–

4

HDMI D1+

5

GND

6

HDMI D1–

7

HDMI D0+

8

GND

9

HDMI D0–

10

HDMI CLK+

11

TMDS Clock Shield

12

HDMI CLK–

13

NC

14

NC

15

HDMI_DDC_SCL

16

HDMI_DDC_SDA

17

GND

18

Power (VCC5)

19

HDMI_HPD

Pin

Definition

Pin

Definition

1

UIM_PWR

2

UIM_RST

3

UIM_CLK

5

GND

6

NC

7

UIM_DAT

CN6

CN7
