Installation
L
ΩGIC™ 1X36 User Manual Rev. 08
7
Do not use the
splitter as a
coupler.
LΩGIC™ 1X36 Product Linking
Use this method when connecting a set of one or more
LΩGIC™ 1X36 products to the same
DMX cable. This is the simplest method to connect multiple products to the same DMX
controller.
1. Connect the RJ-45 plug of the DMX to RJ-45 adapter to the “DMX In” RJ-45 jack on
the first
LΩGIC™ 1X36 product.
2. Connect the XLR male connector of the DMX to RJ-45 adapter directly to the “DMX
Out” (female) connector on the DMX controller or to the DMX cable coming from the
DMX controller.
3. Connect one of the RJ-45 plugs of the signal patch cable to the “DMX Out” RJ-45 jack
on the first
LΩGIC™ 1X36 product.
4. Connect the other RJ-45 plug of the signal patch cable to the “DMX In” RJ-45 jack on
the second
LΩGIC™ 1X36 product.

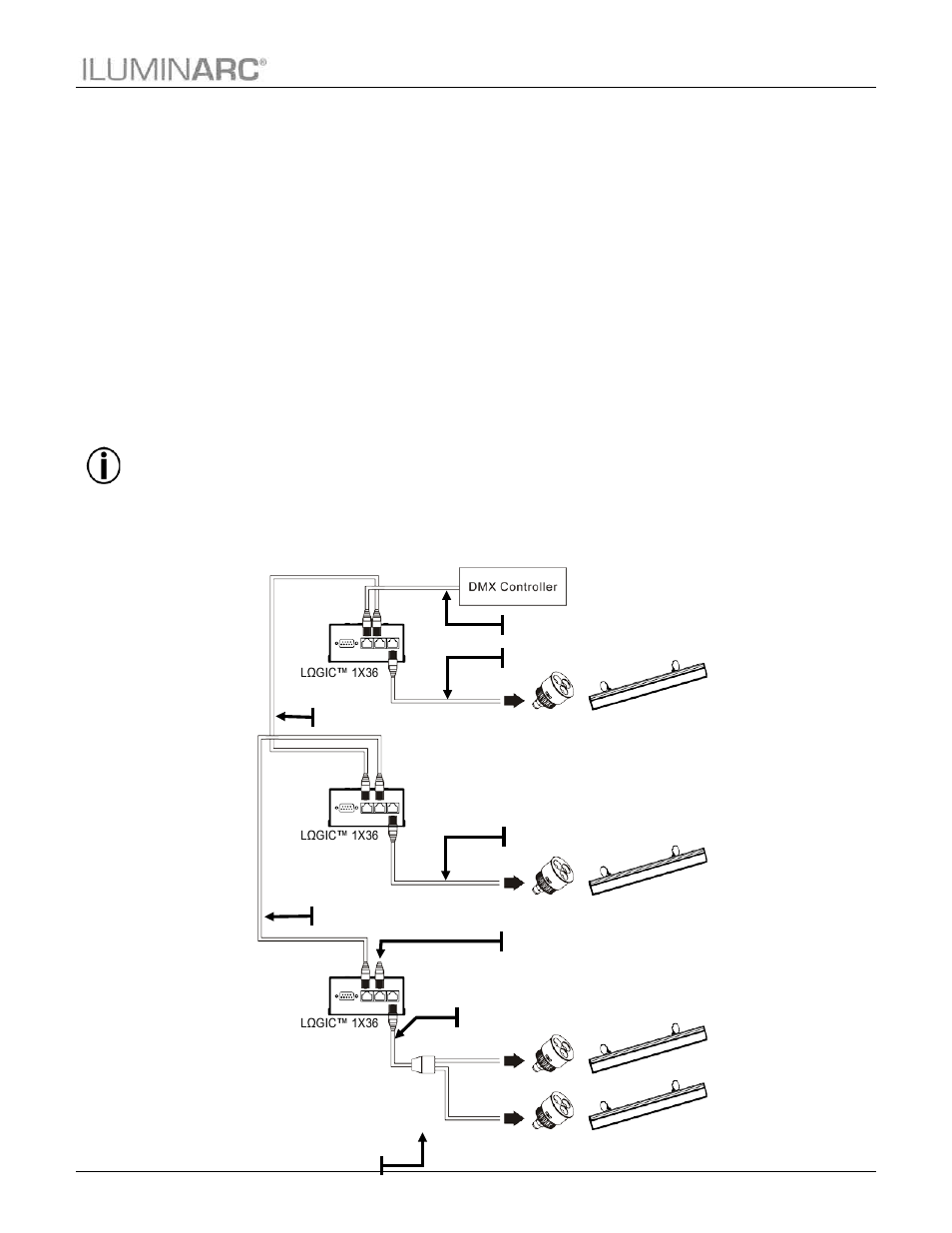

5. Continue linking the
LΩGIC™ 1X36 products using more signal patch cables, as
shown in the diagram below.
ILUMINARC recommends using a signal terminator after the last
LΩGIC™ 1X36 product.
The easiest way to assemble a signal terminator is by soldering or crimping a 120 ohms resistor
between the terminals corresponding to DATA + and DATA – on a RJ-45 jack. Another
method consists in soldering the 120 ohms resistor to a short cable coming out of a RJ-45 plug.
Once assembled, connect the terminator to the “DMX Out” connector of the last
LΩGIC™
1X36 product.
RJ-45 to DMX adapter
LED patch cable
Signal patch cable
LED patch cable
LED patch cable
Terminator or RJ-45 to DMX adapter
Signal patch cable
Optional splitter
