 Click on the Browse button ("...") for each output channel (ch.01-ch.16) to select the
CPL's audio channel, using its label that is to be routed (Figure 50).

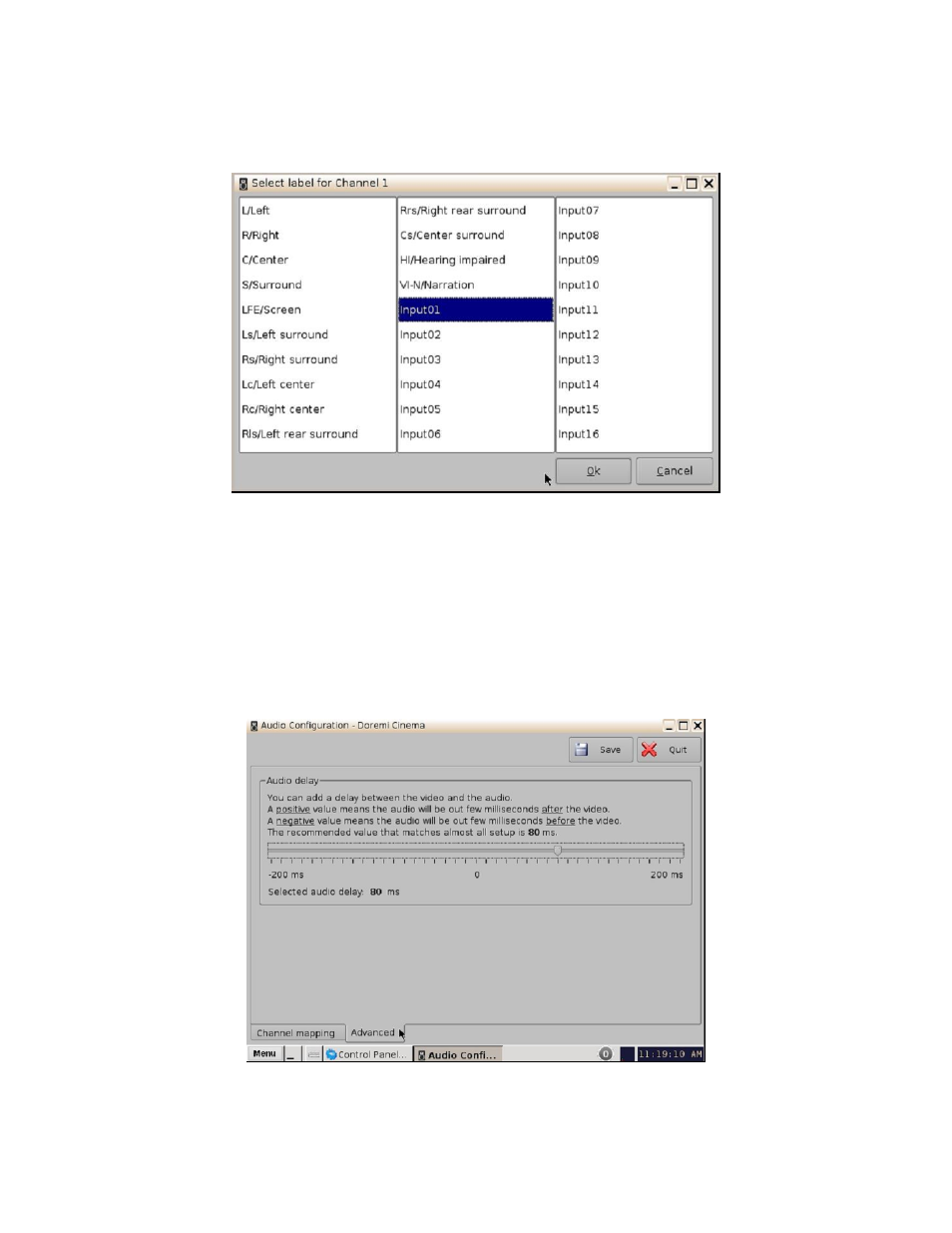

Figure 50: Custom Mapping Parameters
5.2.2 Advanced Tab
This tab allows the user to add a delay between audio and video by dragging the cursor to the
desired delay on the graphical cursor that allows values between -200 milliseconds and 200
milliseconds. All audio tracks will get the same delay. You cannot add separate delays for each
track. After the delay has been configured, click on the Save button to save the audio delay. The
selected audio delay is shown in numeric characters below the cursor field (Figure 51).
Figure 51: Advanced Tab
