4.0.1 ST Model TOF Sensor Adjustment
ΠInsert the Key and unlock the Access Cover.
• Raise the Access Cover. (For convenience, the cover may also be
removed by sliding it forward and then off.)

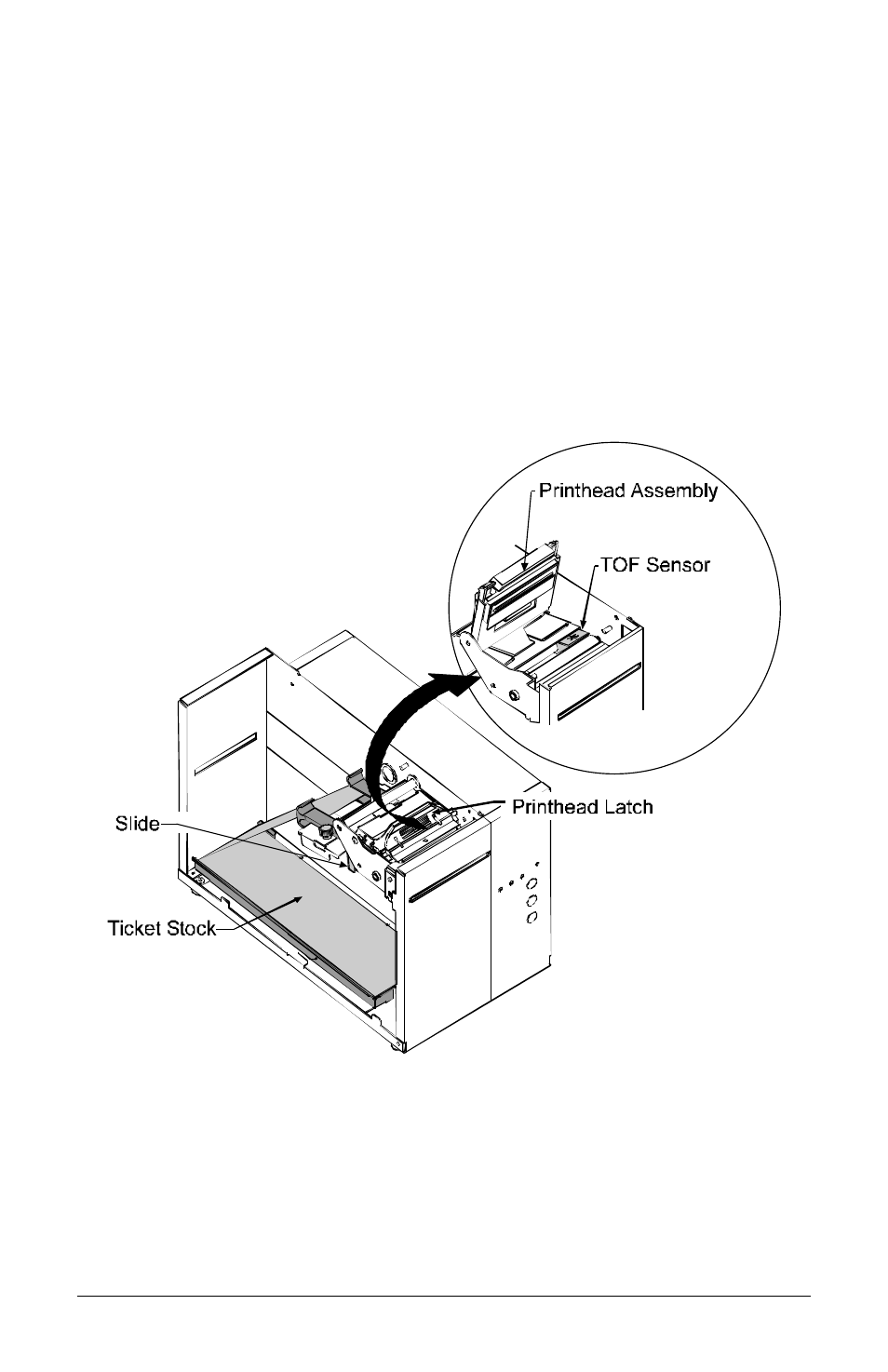

Ž Unlock the Printhead Latch and raise the Printhead Assembly.
• Grasp the Slide and move it ‘in’ or ‘out’ accordingly, so the position
of TOF Sensor is underneath the TOF Mark and within a quiet zone
area of the ticket stock.
• Lower the Printhead Assembly and lock the Printhead Latch.
‘ Re-feed the ticket stock; see Section 3.2.
’ Lower and lock the Access Cover.
