Alarm codes connector diagrams, Applied motion products, inc, Alarm codes – Applied Motion BLuDC4-Q User Manual

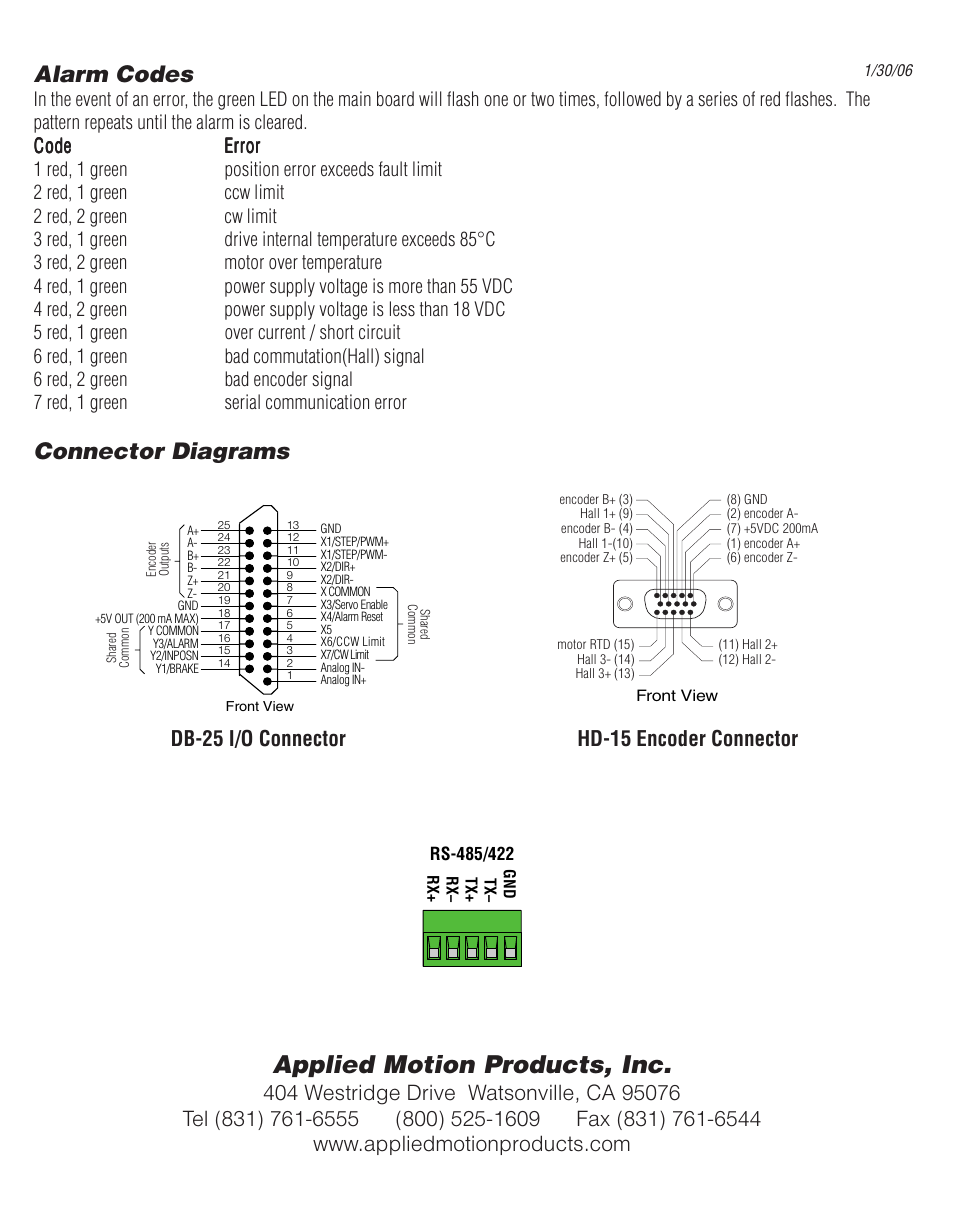

Page 32: Connector diagrams, Db-25 i/o connector hd-15 encoder connector

Text mode
Original mode

Alarm codes connector diagrams, Applied motion products, inc, Alarm codes | Connector diagrams, Db-25 i/o connector hd-15 encoder connector | Applied Motion BLuDC4-Q User Manual | Page 32 / 32
