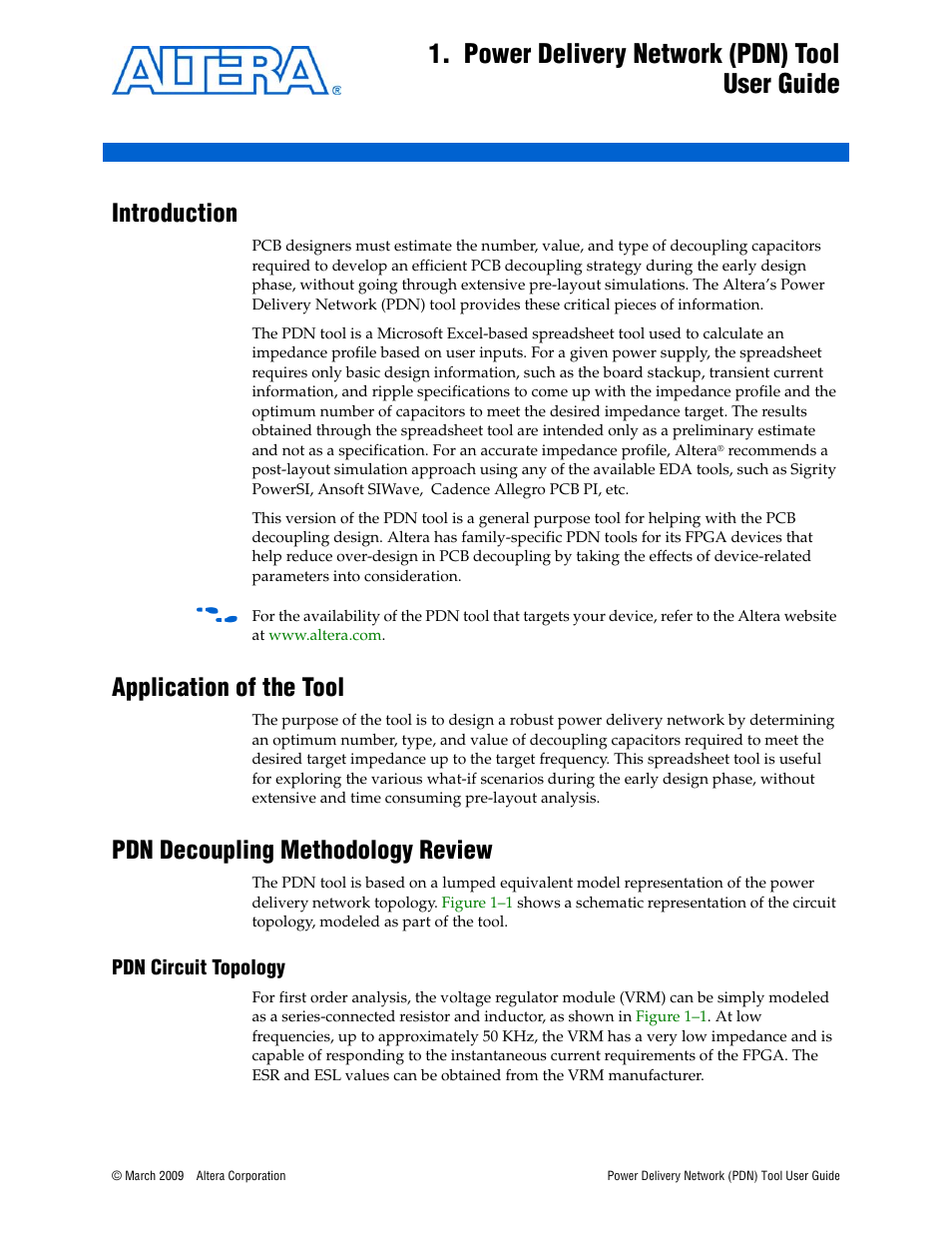

Power delivery network (pdn) tool user guide, Introduction, Application of the tool – Altera Power Delivery Network User Manual
Page 5: Pdn decoupling methodology review, Pdn circuit topology -1, Pdn circuit topology
