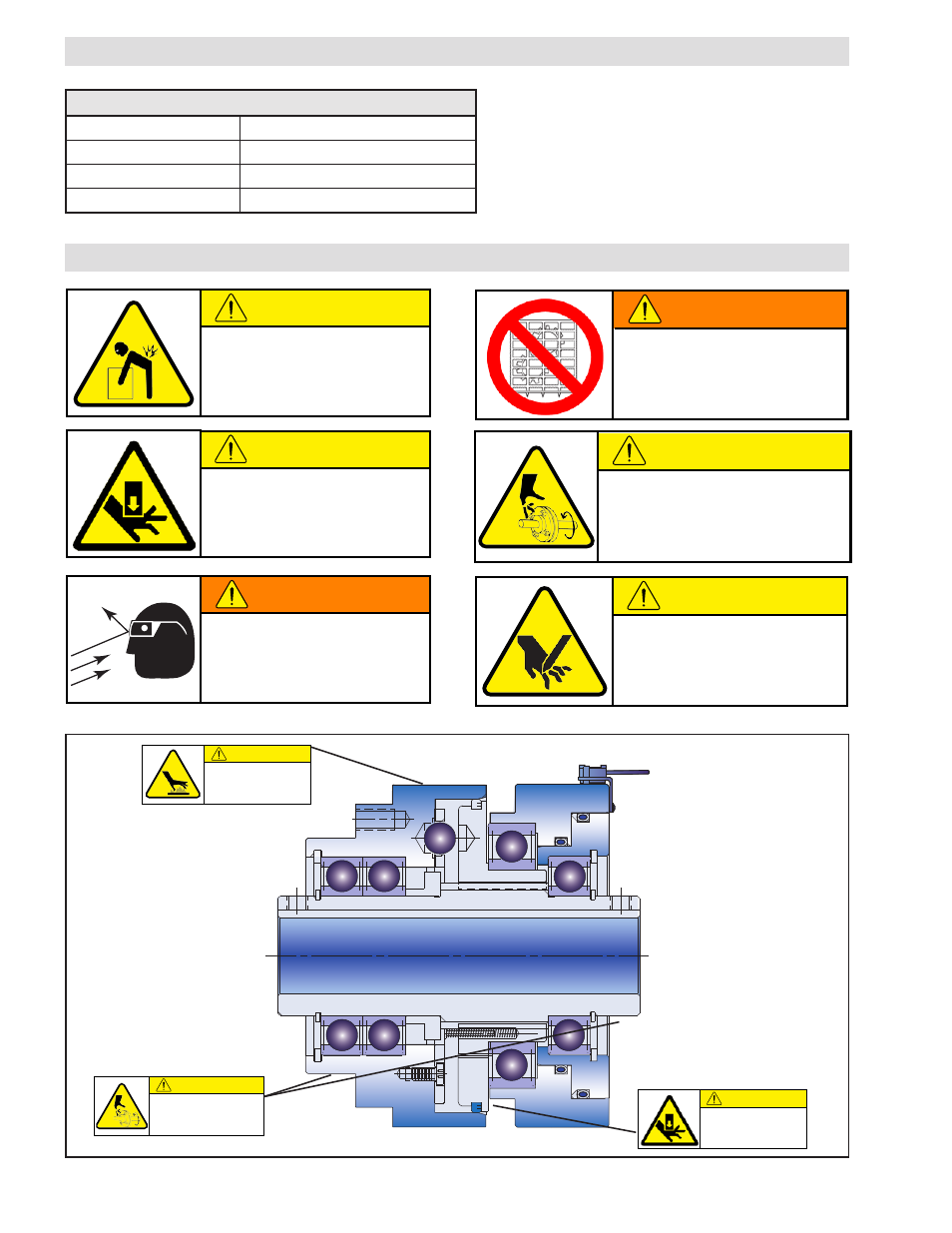

GENERAL SPECIFICATIONS
Specifications
Torque: Up to 3130 Nm (27,700 in-lb)
Actuation Pressure: 1 - 5.5 bar (14.5 - 80 psi)
Service Temperature: 4.5 - 104 C (40 - 220 F)
Approximate Weight: Up to 50.8 kg (112 lbs)
GENERAL SAFETY PRECAUTIONS
CAUTION
Some Torque Limiters can exceed
100 lbs. Use lifting aids and
proper lifting techniques when
installing, removing, or placing in
service.
WARNING
Ensure proper guarding of the Torque
Limiter is used. Nexen recommends
the machine builder design guarding
in compliance with OSHA CFR 1910
"Occupational Safety and Health
Hazards".
CAUTION
Non-enclosed Torque Limiters
have a pinch point between the
driving and driven elements of
the torque interface. Keep hands
clear.
CAUTION
Torque Limiters connect a driving
and driven shaft. Keep hands
clear.
WARNING
Some Torque Limiter models are
Spring Loaded. Extreme caution
should be used in disassembling
and disposing of the unit.
CAUTION
Watch for sharp features when
installing and servicing the Torque
Limiter. The TL has complex
shapes and machined edges.
CAUTION
Non-enclosed Torque Limiters
have a pinch point between
the driving and driven elements
of the torque interface. Keep
hands clear.
CAUTION
Torque Limiters connect
a driving and driven shaft.
Keep hands clear.
CAUTION
The temperature limits for
the TL product line are
4.5-100 Degree Celsius
(40-220 Degree F).
