Dupree Bay Specifications Dimension One Spas
Specification, Dupree Bay Doc-1517 Rev - B Rev Date: 4/6/07
Dupree Bay
Caution:
Due to manufacturing tolerances there could be some
minor differences between the actual spa and the drawing above.
If site planning is critical to such tolerances, be sure to measure your actual spa.
NOTE: Subject to change without notice
1. Engineering specs may differ slightly from brochure.
2. For E-Z lifter installation allow 18” (45.72cm) clearances on the backside of the spa.
3. Alternative cabinets may add significant weight. Ask your dealer for exact details
Page 2 of 2

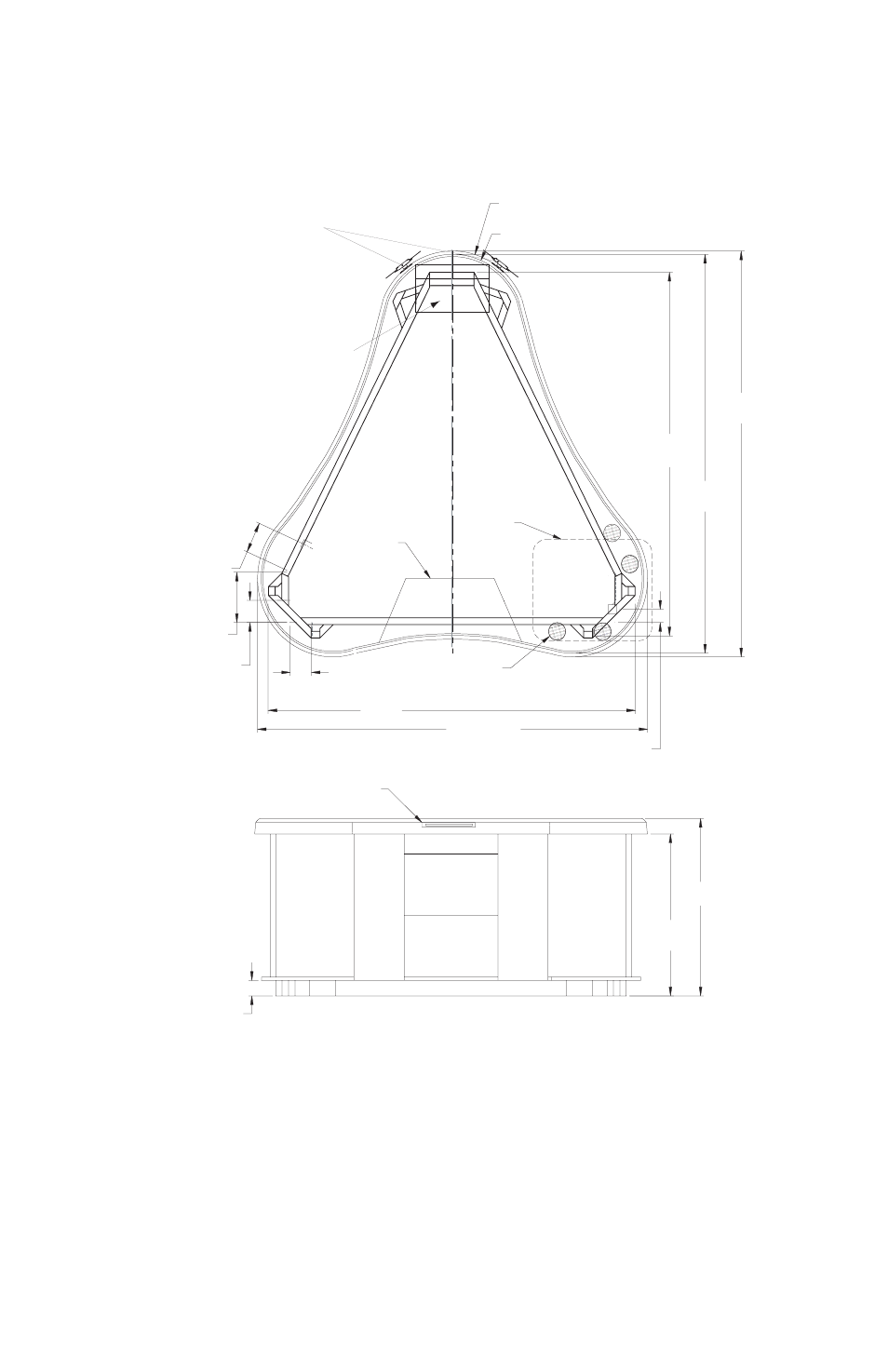

Architectural Specifications
40in
[101.59cm]
36 1/2in
[92.71cm]
Spa lip
Pedestal base
Control panel
Vent holes
Typical 4 places.
R17in
[R43cm] Skirt
91 1/2in
[232.41cm] Shell
91 1/2in
[232.41cm] Shell
3in
[7.62cm] Hose bib/
Water drain
89 7/8in
[228.35cm] Skirt
82in
[208cm]
Pedestal base
82 1/4in
[209cm]
Pump location
Equipment
compartment
7in
[18cm]
Recommended location
for electrical inlet
11 3/8in
[28.82cm]
3 1/2in
[8.89cm]
5in
[12.70cm]
5in
[12.69cm]
C
R17 5/8in
[R44.82cm] Shell
TOP VIEW
FRONT VIEW
Optional stereo
Sub-woofer location
stereo speaker location
(optional)
