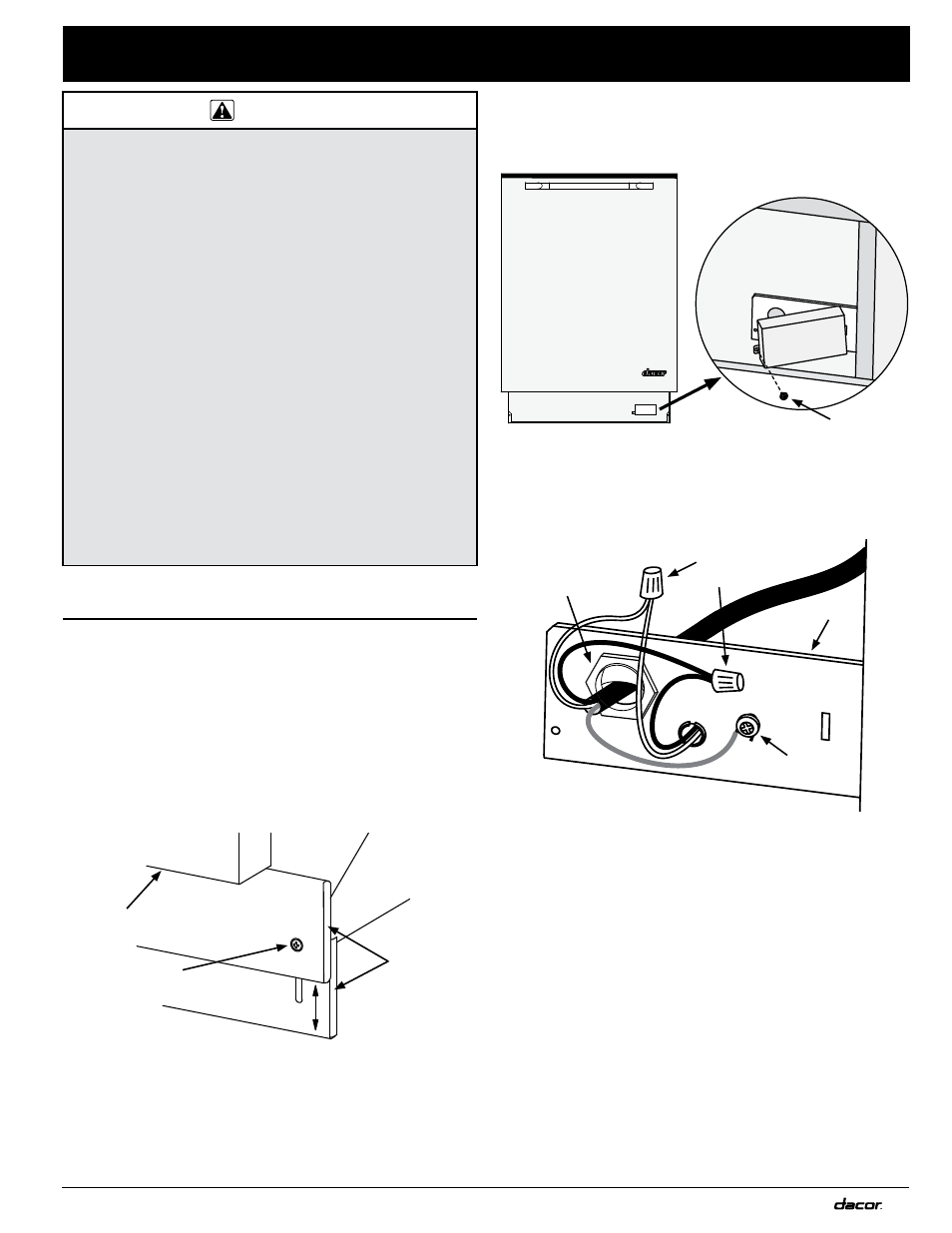

7

Installation Specifications

WARNING

Do not install the dishwasher unless the electrical

service provided meets the dishwasher specifications

(see page 5).
A qualified technician must complete the installation

of this built-in appliance. The owner is responsible

to make sure the dishwasher is properly installed.

Improper connection of the electrical wiring may

create an electric shock or fire hazard and may result

in damage to the dishwasher’s electrical system.
To avoid an electrical shock hazard, turn off power

to the electrical outlet or junction box at the circuit

breaker panel or fuse box before proceeding. Do not

turn on the power or water supply until instructed to

do so on the following pages.
Do not allow any material, including the hoses or

electrical wiring to be directly behind the dishwasher

while pushing it into the cut-out opening. Carefully

pull the slack out of both hoses and the wiring from

outside the cut-out during push back to prevent

pinching. An electric shock hazard or water damage

may result from pinched wires or hoses. Damage due

to improper installation is not covered under warranty.

Toe kick

assembly

Retaining screw,

2 places

Door

Junction Box Location

Screw

Junction Box Wiring

Ground

connection

Strain

relief

Base

Wire

nuts

Electrical Connection

Make sure power to the electrical receptacle or junction

1.

box is off.
Before connecting the wiring and the plumbing, push

2.

the dishwasher into position with the back of the unit

about six (6) inches in front of the cut-out.
Remove the two (2) screws that hold the toe kick

3.

assembly in place and remove it.

NOtE: Do not

reinstall the toe kick until the dishwasher is completely

installed and tested.

Remove the dishwasher junction box cover screw. The

4.

junction box is mounted to the dishwasher chassis

below the door.

Remove the junction box cover.

5.

Install a 3/4” UL/CSA approved strain relief on the base

6.

of the dishwasher junction box.

Strip the three (3) wires on the end of the electric cord

7.

or one end of the wire that will connect to the house

wiring.
Feed the end of the wire or cord through the

8.

dishwasher chassis into the junction box base through

the strain relief.
Loosen the grounding screw on the base and connect

9.

the green wire. Tighten it into place.
Connect the power cord (or house wiring) black

10.

and white wires to the black and white wires inside

the junction box. Match the colors. Use wire nuts to

connect them.
Tighten the strain relief. Pull gently on the wiring from

11.

the back to make sure it is secure.
Replace the junction box cover and screw.

12.
