11
Installation Instructions

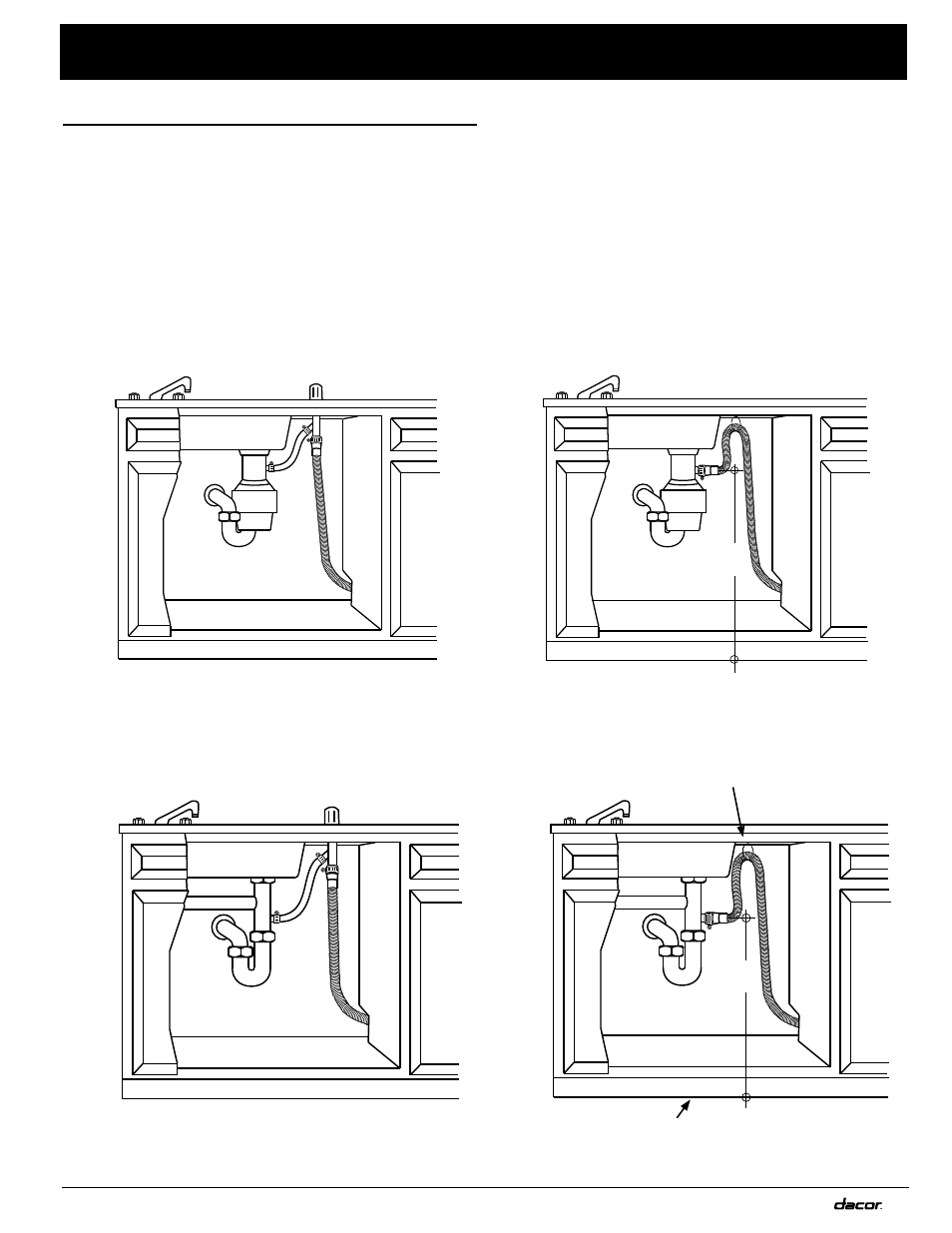

Create loop and fasten to under
side of cabinet
Floor
DISPOSAL INStALLAtION WItHOUt AIR GAP
20"
Min.
Create loop and fasten to under
side of cabinet
Floor
WAStE tEE INStALLAtION WItHOUt AIR GAP
INStALLAtION WItH AIR GAP AND DISPOSAL
INStALLAtION WItH AIR GAP AND WAStE tEE
20"
Min.
Drain Line Installation
Connect the flexible drain line to the air gap or connect 1.
it directly to the waste tee or disposal (see below).
For installations without an air gap, put a loop in the
2.
drain line as shown.
Tighten the holding clamp. For installations with an
3.
air gap check to make sure the drain line from the air
gap to the disposal/drain trap is complete and that the
clamps are tight.
