3

Important Safety Instructions

CAUtION

Keep the factory installed high loop drain hose in

place to ensure proper dishwasher operation. Do not

cut, tie, strap or lower it. If it is necessary to lengthen

it, install an aftermarket drain extension kit, available

at most home improvement stores.

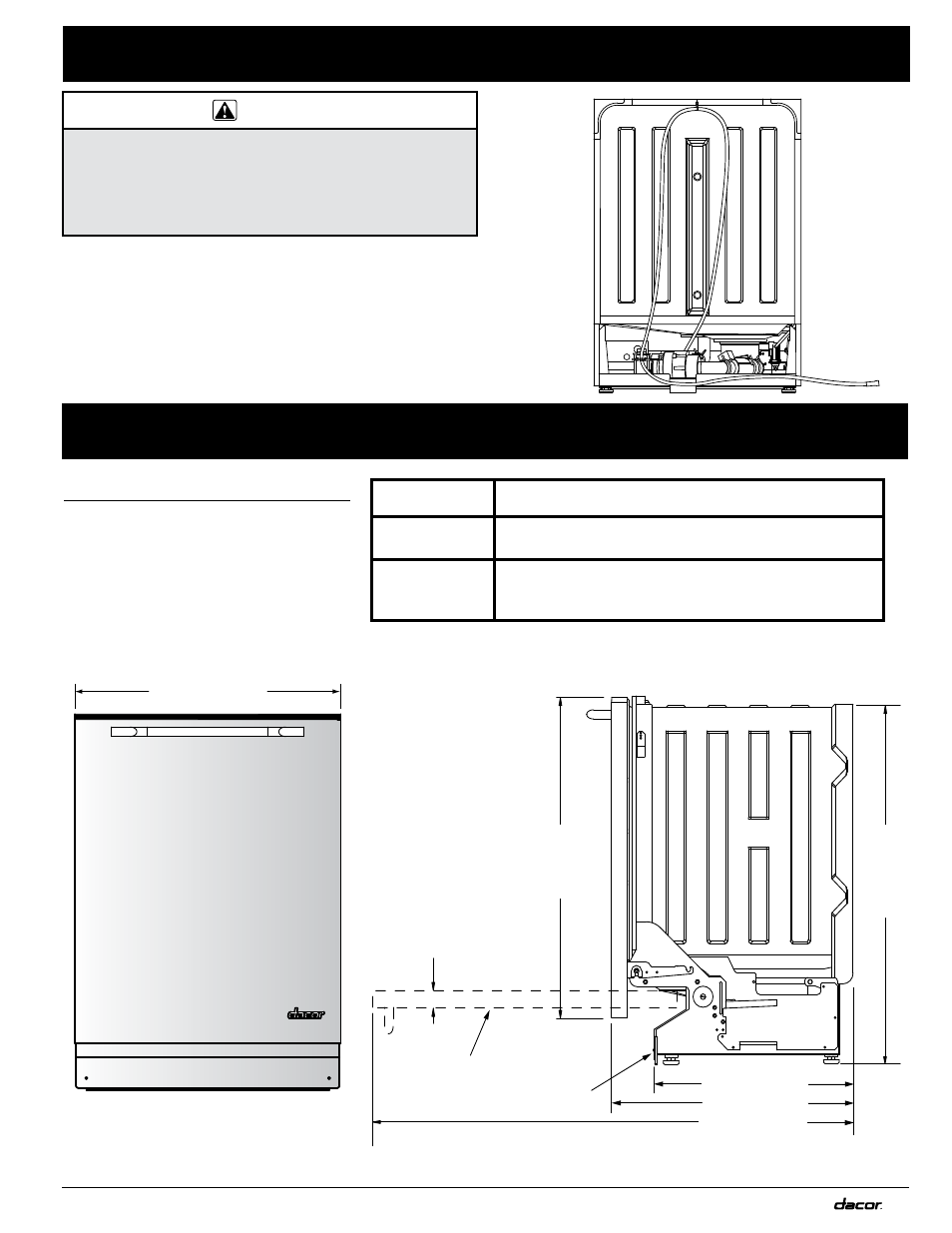

Design Specifications

Product Specifications

20" (50.8 cm)*

Door in Lowered Position

Adjustable Toe Kick

23 3/4" (60.3 cm)

47” (119.4 cm)

ED24:

29 5/8" (75.2 cm)

ID24:

26 7/8" (68.3 cm)

33 3/4"

(85.7 cm)

to

36 1/4"

(92.1 cm)

1 5/8” (4.1 cm)

Tolerances: +1/16”, -0, (+1.6 mm, -0)

unless otherwise stated

23 7/8” (60.6 cm)

Water Pressure 20 to 120 psi (138 - 827 kPa)

Water

Temperature

120°F, minimum

Power

Requirements

15 A, 120 Vac, 60 Hz dedicated, grounded, circuit.

See the model number label on product for total

connected loaded.

Door style varies with model number.

See use and care manuals for

description.

*Allows for hose on back of unit

Technical

Dimensions
