Installation Specifications

Verify the Package Contents

NOtE: Model ID24 ships without a front panel. It is

designed for the installation of an integrated front panel that

matches the surrounding cabinets.

With the assistance of at least one person, remove the

dishwasher from the shipping carton. Place the unit to

the side of the cabinet opening.
Remove all of the packing materials from inside and

outside of the unit.

DO NOt allow any of the shipping

materials, loose screws or plastic to remain inside.

Remove the racks. Set them aside for later installation.

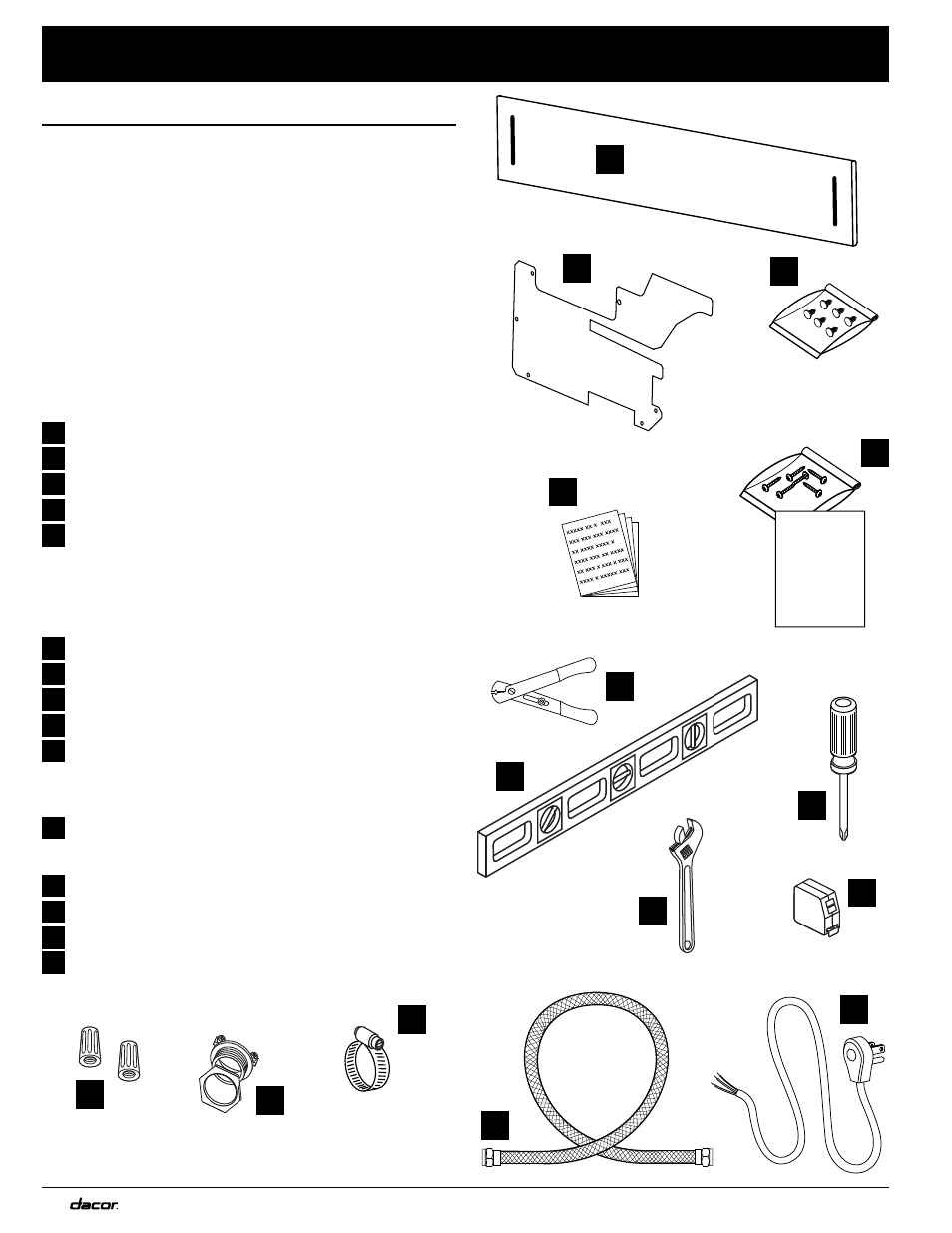

Unpack the parts box and verify that all required

components have been provided. If any item is missing

or damaged, please contact the dealer immediately. Do

not install a damaged or incomplete appliance.

Extended toe kick
Left side access panel
6 Plastic fasteners (for access panel)
Use and care manual
Model ID24 only: Integrated template, screws and

door tensioning springs for heavy door panels.
A bottle of Dacor

®

Stainless Steel Cleaner is also

included with models having stainless steel doors.

tools required for installation:

Wire strippers
Level
Crescent wrench
Phillips screwdriver
Tape measure

Materials required for installation

(not provided):

2 wire nuts to fit wire mentioned above. Additional

wire nuts may be required for connection to house

wiring.
3/4” UL/CSA approved strain relief
Hose clamp (for 1 3/8” OD drain hose)
3/8” flexible braided fill hose (required length varies)
Wire or three-prong UL/CSA approved electric cord

(see electrical specifications)

A
B
C
D
E

F

G

H

J

K

L

M

N

P

Q

N

M

L

24-Inch

Integrated

Custom

Panel

Installation

A

B

C

D

E

P

Q

F

G

H

J

K

Make sure you have everything necessary for proper

installation before proceeding.
