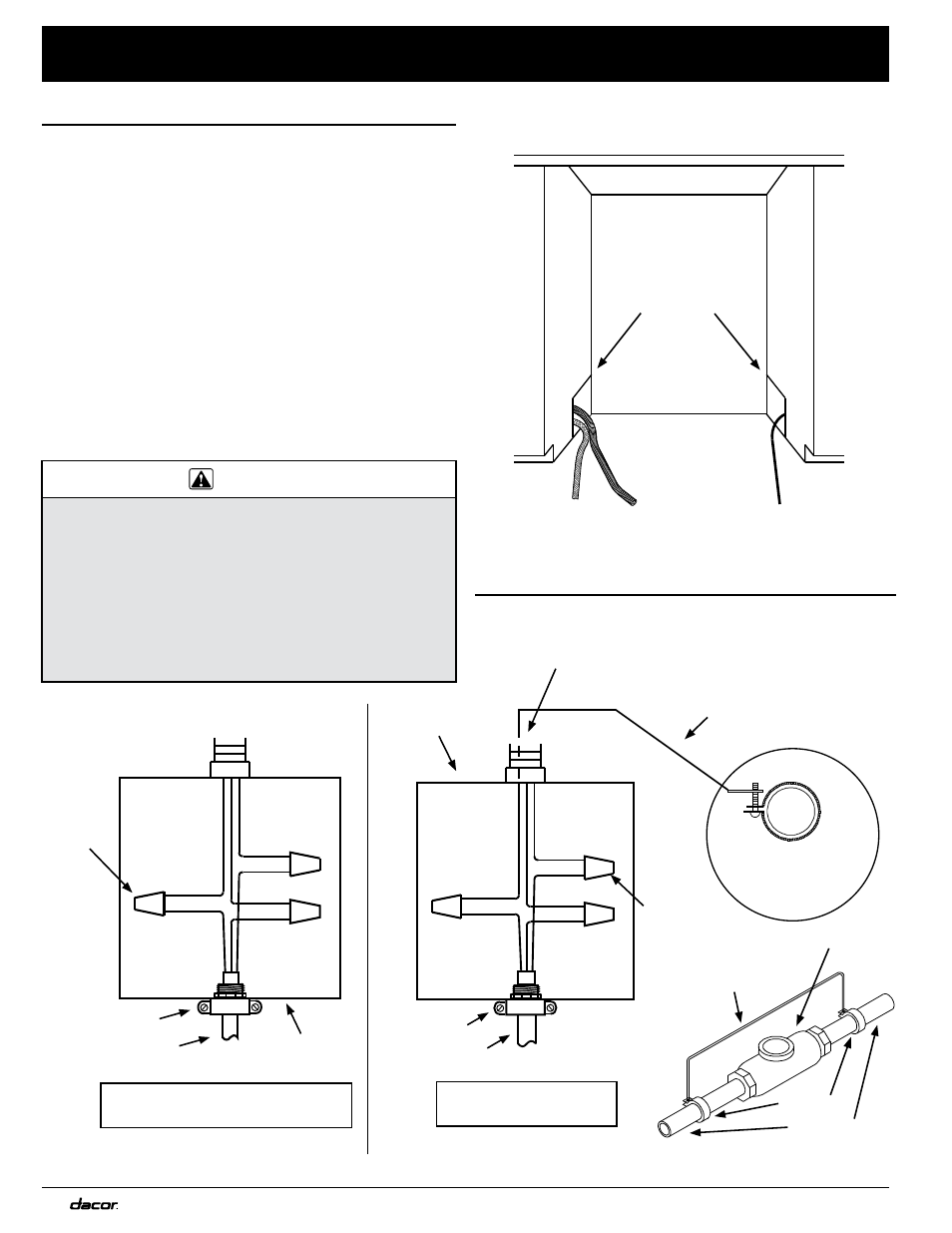

8

Installation Instructions

Feed the electric cord (or wire) and both hoses into the

utility cut-out(s); direction varies with installation.

Utility Cut-outs

Hoses

Wire or

cord

* Does not apply when using a 3-Prong power cord.

Standard 3-Wire Connection

to House Junction Box*

To house circuit breaker

panel or fuse box

Strain relief

To dishwasher

Wire nut,

3 places

Junction box

3-Wire Connection

with External Ground*

Fasten clamp tightly

on pipe

Separate No. 10 (minimum)

copper ground wire

To house circuit breaker

panel or fuse box

Wire nut,

3 places

Junction box

To dishwasher

Strain relief

Insulated Pipe Jumper

(if necessary)

No. 4

copper wire

Meter

Clamps

Bare metal

13. Feed the electric wire or cord into the utility hole in

the side of the cut-out. Pull all of the slack out of the wire.
If the unit is to be connected directly to the house

wiring:

With power turned off at the circuit breaker or fuse

box, remove the house junction box cover.
Feed the dishwasher wiring into the junction box.

Secure the wire with a UL/CSA approved strain relief.
Strip and connect the wires according to one of the

wiring diagrams below.
Tighten the strain relief. Check to make sure the wire

is secure.
Replace the junction box cover and screws.

Electrical Connection

(Continued)

WARNING

Connect the dishwasher ground wire to a separate,

properly grounded wire installed by a licensed

electrician.
A grounded cold water pipe must have metal

continuity to an electrical ground and must not be

interrupted by insulating materials. Any insulating

materials must be jumped with a length of No. 4

copper wire securely clamped to bare metal at both

ends. See diagram below.

GREEN
GREEN

WHITE
WHITE

BLACK
BLACK

GREEN
GREEN

WHITE
WHITE

BLACK
BLACK
